Roof Wire Harness
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Roof Wire Harness

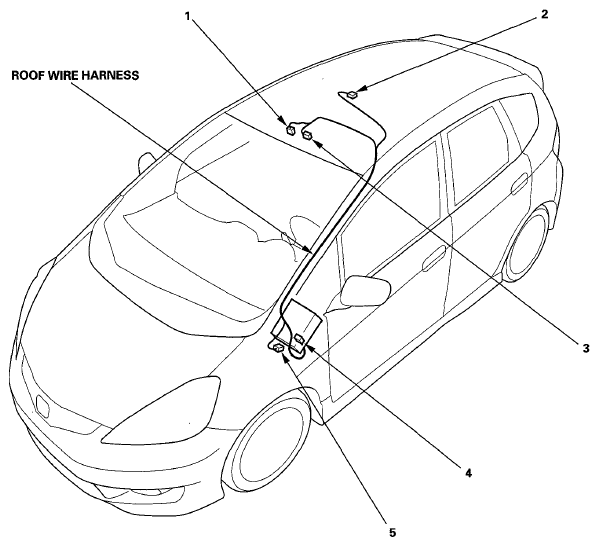

ROOF WIRE HARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Ceiling light | 2 | 3 | Roof | - | - |
| Map light | 1 | 3 | Front of roof | - | - |
| Navigation microphone | 3 | 3 | Front of roof | - | - |
| Under-dash fuse/relay box connector G (see UNDER-DASH FUSE/RELAY BOX ) | 4 | 8 | Under left side of dash | - | - |
| C801 | 5 | 4 | Under left side of dash | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | - |
