Using Brake Warning Light

Turn ignition switch to LOCK position. Connect ground DLC terminal No. 1. See Fig 1 . Start engine.
If DTCs are stored in ABS ECU relating to HBB system, brake warning light will begin to flash intermittently. Long flashes indicate first digit of DTC, short flashes indicate last digit of DTC. For example, 2 long flashes followed by 4 short flashes indicate DTC 24. If 2 or more DTCs are stored, lowest number will be displayed first.
After recording all DTCs, perform appropriate diagnostic test. See DTC DEFINITION table. Clear DTCs from memory, see CLEARING DIAGNOSTIC TROUBLE CODES .

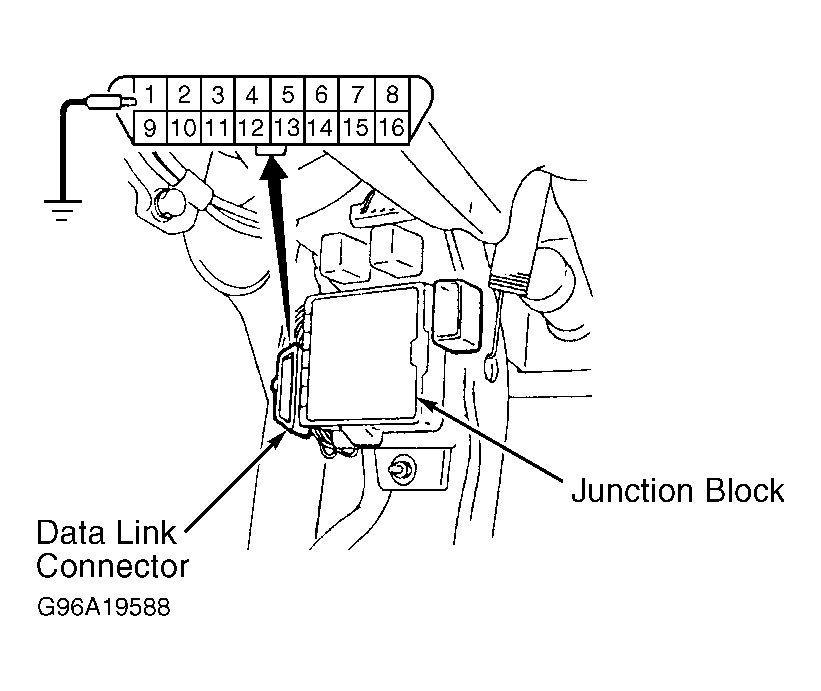

Fig 1: Identifying Data Link Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

DTC DEFINITION

DTC

⁽¹⁾ System Affected

⁽²⁾ System Power Supply

Ignition Switch Circuit A Open

Ignition Switch Circuit B Open

Motor Relay

Pump Motor Locked

⁽²⁾ ABS-ECU Failure

Accumulator

Pressure Switch Malfunction

⁽¹⁾	See appropriate DTC under DIAGNOSTIC TESTS.

⁽²⁾	See appropriate DTC under DIAGNOSTIC TESTS in ANTI-LOCK - MONTERO article.
