Removing and installing/replacing transmission oil cooler (6-speed, AISIN GA6F21AW)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

16 1 070

IMPORTANT: AFTER COMPLETION OF WORK, CHECK TRANSMISSION OIL LEVEL .
Use only the approved automatic transmission oil: ATF6 (BMW/MINI part number 83 22 2 355 599).

Failure to comply with this requirement will result in serious damage to the automatic transmission!

IMPORTANT: No dirt is allowed to enter the oil circuit.

Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary work:

Remove INTAKE SILENCER HOUSING .
Remove front UNDERBODY PROTECTION .
Remove THRUST FIELD(F57) .
Drain off TRANSMISSION OIL .

Removal:

Unscrew the sealing cap (1) of the coolant expansion tank.

G11645883

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow notes for CARRYING OUT REPAIR WORK ON THE COOLING SYSTEM .

Unfasten hose clamps.

Disconnect the coolant hoses (1) from the transmission oil cooler.

Catch the emerging coolant.

G11646030

Courtesy of BMW OF NORTH AMERICA, INC.

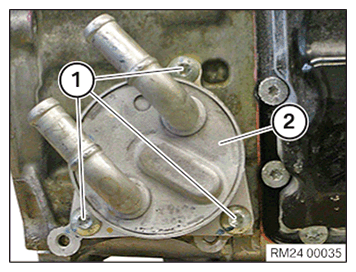

Remove screw (1).

Remove transmission oil cooler (2).

G11646050

Courtesy of BMW OF NORTH AMERICA, INC.

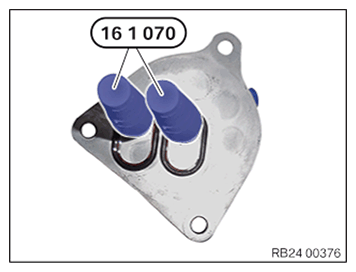

Close openings on the transmission oil cooler with special tool 16 1 070.

G11646051

Courtesy of BMW OF NORTH AMERICA, INC.

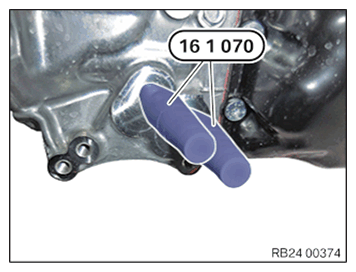

Close openings on the transmission with special tool 16 1 070.

G11646052

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove the special tool 16 1 070 from the openings in the transmission.

G11646052

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the special tool 16 1 070 from the openings on the transmission oil cooler.

G11646052

Courtesy of BMW OF NORTH AMERICA, INC.

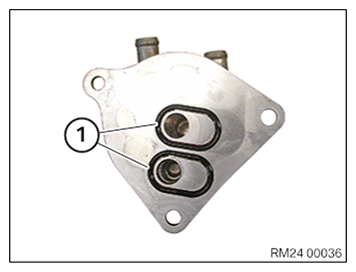

Parts: Replace sealing rings (1).

Clean contact surfaces.

Coat sealing rings (1) with clean transmission oil.

G11646055

Courtesy of BMW OF NORTH AMERICA, INC.

Install the transmission oil cooler (2).

Tighten screw (1).

Tightening torque 22 11 4AZ .

G11646050

Courtesy of BMW OF NORTH AMERICA, INC.

Slide the coolant hoses (1) onto the transmission oil cooler.

Secure hose clamps.

G11646030

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Top up COOLANT .
Add TRANSMISSION FLUID .
Install INTAKE SILENCER HOUSING .
Install THRUST FIELD(F57) .
Install front UNDERBODY PROTECTION .
Carry out vehicle test.
