11 21 500 Replacing crankshaft (N55)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Aluminum screws/bolts are permitted with and without color coding (blue).
Aluminum screws/bolts must be replaced each time they are released .
For reliable identification:
Aluminum screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary work:

Remove ENGINE .
Mount engine on ASSEMBLY STAND (N55) .
Remove VIBRATION DAMPER .
Removing oil sump . See REMOVING AND INSTALLING, SEALING OR REPLACING OIL SUMP (N55, RWD) or REMOVING AND INSTALLING, SEALING OR REPLACING OIL SUMP (N55, AWD) .
Remove OIL PUMP .
Remove timing CHAIN MODULE .
Remove oil pump/vacuum pump CHAIN MODULE .
Remove CYLINDER HEAD .
Remove FLYWHEEL .
Remove all PISTONS .

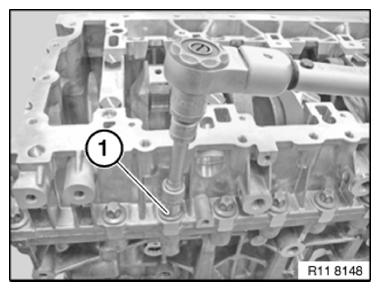

Release screws (1).

Tightening torque 11 13 5AZ .

Installation note:

Replace aluminum screws.

Remove oil deflector with integrated intake snorkel.

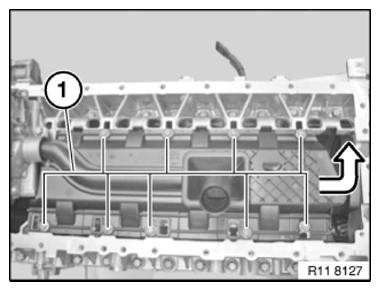

Fig 1: Removing Oil Deflector

Courtesy of BMW OF NORTH AMERICA, INC.

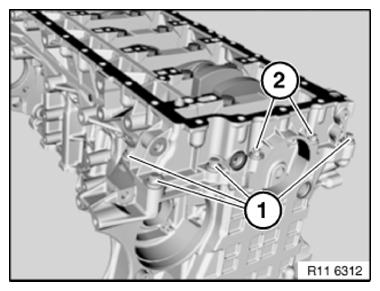

Release aluminum screws (1).

Release aluminum screws (2).

Installation note:

Replace aluminum screws.

Fig 2: Identifying Aluminum Screws

Courtesy of BMW OF NORTH AMERICA, INC.

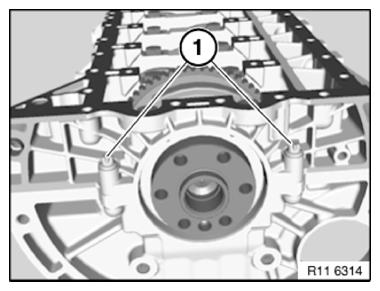

Release aluminum screws (1).

Installation note:

Replace aluminum screws.

NOTE: Illustration shows N52.

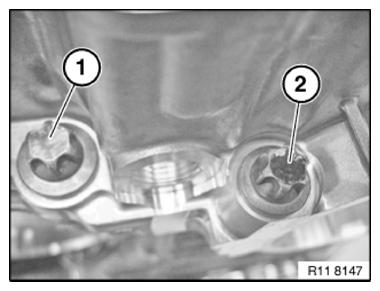

Fig 3: Identifying Aluminum Screws

Courtesy of BMW OF NORTH AMERICA, INC.

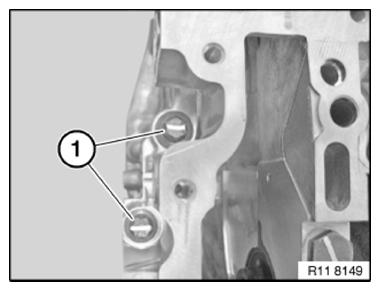

Release screws (1).

Unfasten screws (2).

Installation note:

Replace aluminum screws.

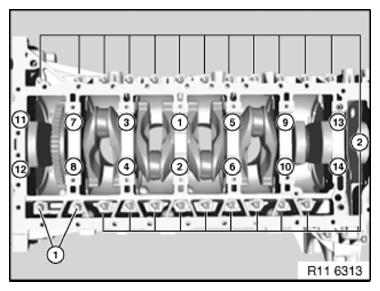

Release steel screws (14 to 1) from outside inwards.

Remove crankcase lower section upwards.

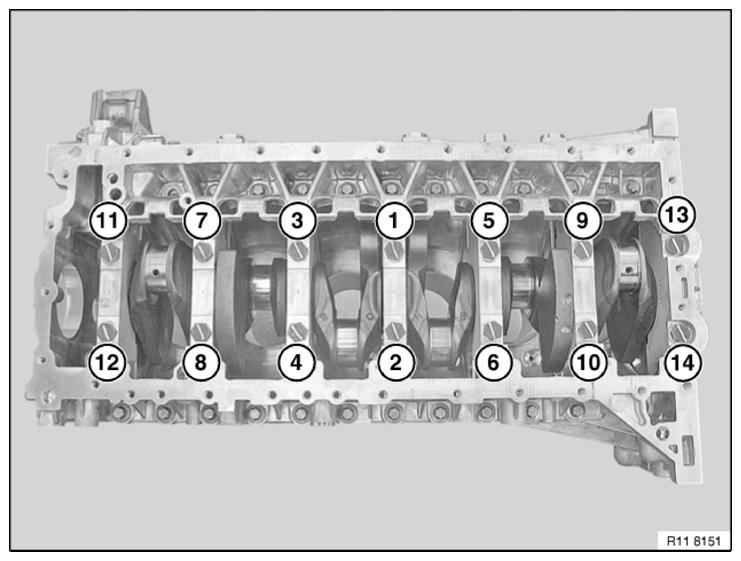

Fig 4: Crankshaft Bolts Tightening/Loosening Sequence (N55)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Remove crankshaft with aid of a second person.
Weight of crankshaft approx. 25 kg.

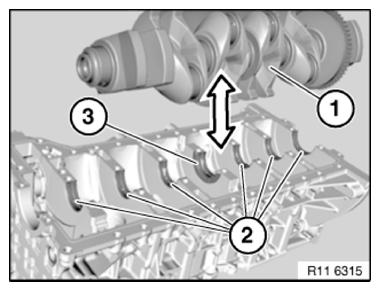

Remove crankshaft (1) upward in direction of arrow.

Remove BEARING SHELLS (2) and guide bearing shell (3), replace if necessary.

Fig 5: Installing Bearing Shells And Guide Bearing Shell

Courtesy of BMW OF NORTH AMERICA, INC.

Clean all sealing surfaces (1) with special tool 11 4 470 .

Fig 6: Identifying Sealing Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

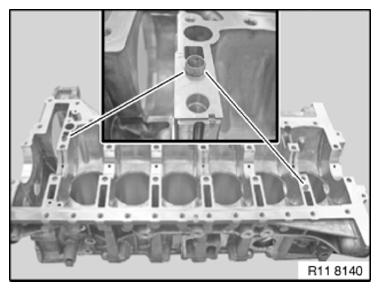

Check fitting bushes for damage and secure seating; replace if necessary.

Install all BEARING SHELLS .

Installation note:

Oil all bearing points adequately with engine oil.

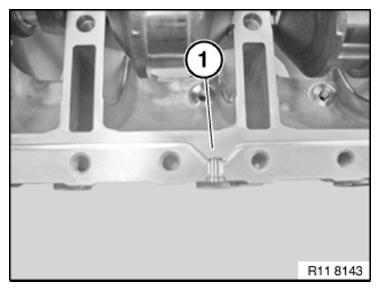

Fig 7: Checking Fitting Bushes

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Insert crankshaft with aid of a second person.
Weight of crankshaft approx. 25 kg.

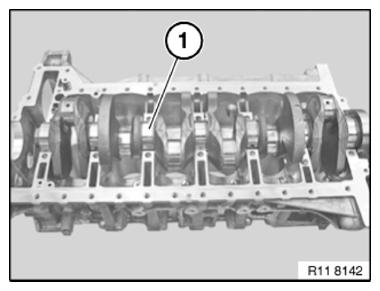

Insert crankshaft (1).

Fit crankcase lower section (watch fitting bushes).

Fig 8: Inserting Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 9: Crankshaft Bolts Tightening/Loosening Sequence (N55)

Courtesy of BMW OF NORTH AMERICA, INC.

Follow tightening/torque sequence for the steel bolts (1 to 14).

JOIN steel bolts (1).

Fig 10: Tightening Steel Bolts To Jointing Torque Specification

Courtesy of BMW OF NORTH AMERICA, INC.

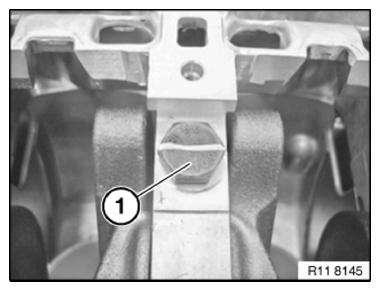

Mark across all steel bolts (1) with a colored mark.

Fig 11: Identifying Mark Across Steel Bolt Head

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten all steel bolts with a special tool 00 9 120 .

Tightening torque 11 11 1AZ .

Installation note:

All steel bolts must be positioned the same with respect to the colored mark after being fastened (see Fig 9).

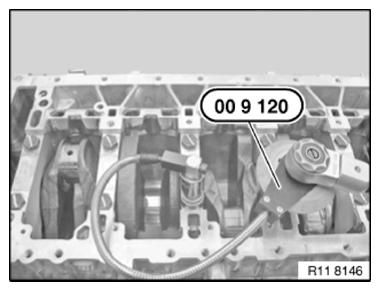

Fig 12: Tightening Steel Bolts Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Aluminum bolts (1) and (2) can have a blue colored mark.

Aluminum screws/bolts are not magnetic .

Fig 13: Identifying Aluminum Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: In the case of aluminum screws, jointing torque and angle of rotation must be observed without fail.

JOIN all aluminum bolts (1) from inside toward the outside.

Tightening torque 11 11 2AZ .

Fig 14: Tightening Aluminum Bolts To Jointing Torque Specification

Courtesy of BMW OF NORTH AMERICA, INC.

Mark across all aluminum bolts (1) with a colored mark.

Fig 15: Identifying Mark Across Aluminum Bolt Heads

Courtesy of BMW OF NORTH AMERICA, INC.

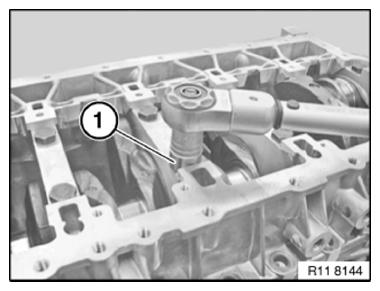

Tighten all aluminum bolts (1) only with special tool 00 9 120 .

Tightening torque 11 11 3AZ .

Tightening torque 11 11 4AZ .

Installation note:

All aluminum bolts must be equally positioned with respect to the colored mark after being fastened.

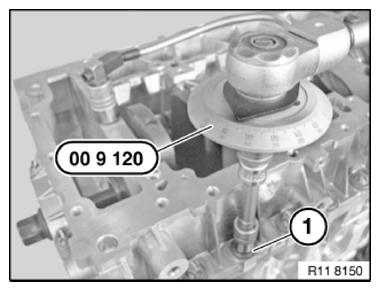

Fig 16: Tightening Aluminum Bolts Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

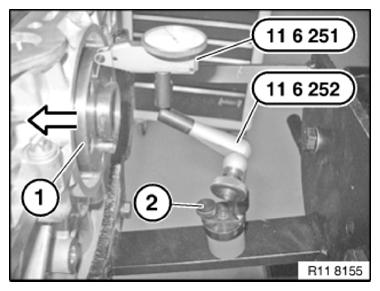

Fit special tool 11 6 252 with magnetic foot on special tool 11 4 440.

Clamp special tool 11 6 251 on special tool 11 6 252 .

Position special tool 11 6 251 with button on the flat side of the crankshaft.

Press crankshaft (1) in direction of arrow up to stop.

Set dial gauge with knurled screw (2) on zero.

Fig 17: Pressing Crankshaft Up To Stop And Setting Dial Gauge On Zero

Courtesy of BMW OF NORTH AMERICA, INC.

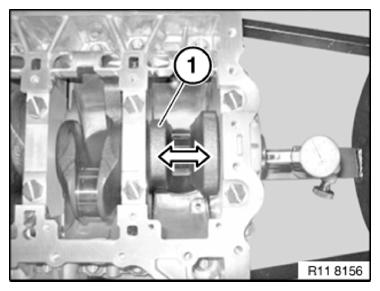

Press crankshaft (1) in direction of arrow from right to left up to stop.

Determine CRANKSHAFT AXIAL CLEARANCE .

Fig 18: Pressing Crankshaft Up To Stop And Determining Crankshaft Axial Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

Turn crankshaft (1) via the central bolt with special tool 00 2 010 to determine the COEFFICIENT OF FRICTION .

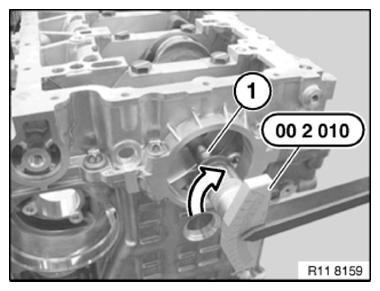

Fig 19: Turning Crankshaft And Determining Coefficient Of Friction

Courtesy of BMW OF NORTH AMERICA, INC.

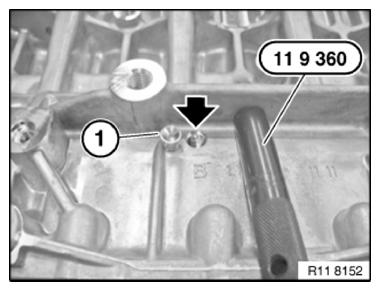

Drive both injector nozzles (1) on left and right on crankcase into the bore hole (see arrow in illustration) with special tool 11 9 360 .

Installation note:

Replace injector nozzles (1).

Fig 20: Locating Injector Nozzles

Courtesy of BMW OF NORTH AMERICA, INC.

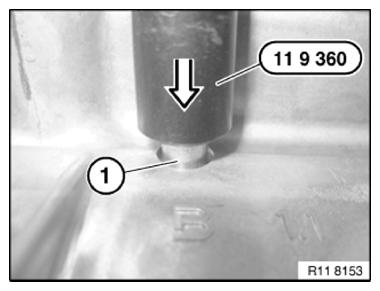

Drive in both injector nozzles (1) on left and right with special tool 11 9 360 into crankcase.

Fig 21: Driving-In Injector Nozzle Using Special Tool 11 9 360

Courtesy of BMW OF NORTH AMERICA, INC.

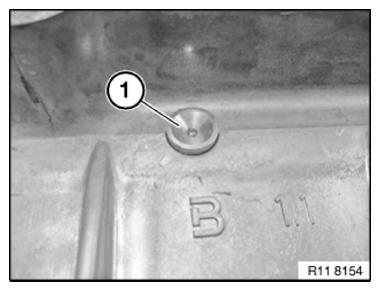

Drive injector nozzle (1) all the way in.

Fig 22: Identifying Injector Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Use PRIMER 1.3 AND LIQUID SEALING COMPOUND 1.4 .

Prepare liquid sealing compound (2) in special tool 11 4 370 .

Screw on nozzle (1) for injecting sealing compound.

Fig 23: Identifying Liquid Sealing Compound And Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Slowly and evenly insert liquid sealing compound (1) via the injector nozzle with special tool 11 4 370 in direction of arrow.

NOTE: Illustrations N42.

Fig 24: Inserting Liquid Sealing Compound Using Special Tool 11 4 370

Courtesy of BMW OF NORTH AMERICA, INC.

Replace CRANKSHAFT SEAL at front.

Replace CRANKSHAFT RADIAL SEAL (transmission side).

Assemble engine.
