11 23 010 Removing and installing/replacing vibration damper (N55)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove UNDERBODY PROTECTION .
Remove DRIVE BELT .

NOTE: Gearbox removed:
Block crankshaft with special tool 11 9 260 .

NOTE: Picture of flywheel removal.

Fig 1: Securing Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

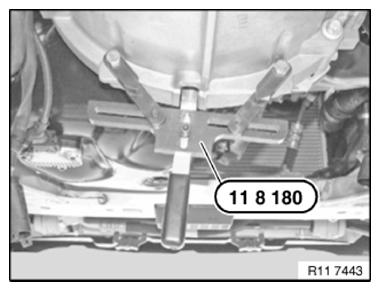

NOTE: Gearbox installed with manual gearbox:
Block crankshaft with special tool 11 8 180 .

Fig 2: Blocking Crankshaft With Special Tool (Vehicles With Manual Transmission)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Gearbox installed with automatic transmission:
Block crankshaft with special tool 11 8 660 .

Fig 3: Blocking Crankshaft With Special Tool (Vehicles With Automatic Transmission)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not release central bolt.
If the central bolt is accidentally loosened, the timing must be readjusted.

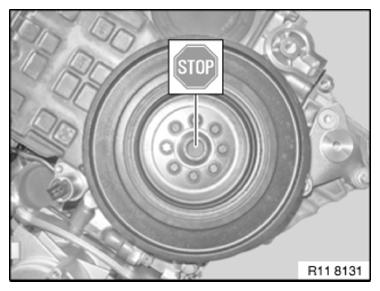

Fig 4: Identifying Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 to 8).

Remove vibration damper (1).

Screws on vibration damper

Tightening torque 11 23 1AZ .

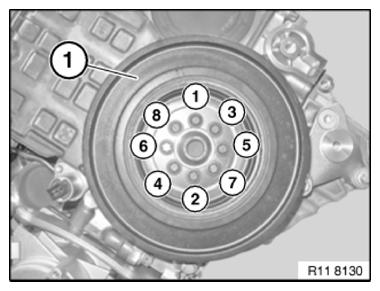

Fig 5: Identifying Vibration Damper And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
