11 25 530 Removing and installing/replacing all pistons (N55)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

WARNING: Safety goggles must be worn when working on the gudgeon pin circlip.
IMPORTANT: If pistons, connecting rods and bearing shells are reused, they must be reinstalled in the same places.
Piston and gudgeon pins are paired and must not be fitted individually.
Individual connecting rod replacement is not permitted; they are classified by weight class.
Connecting rods and connecting rod bearing caps are marked with the same pairing letters; mixing them up will result in engine damage.

Necessary preliminary work:

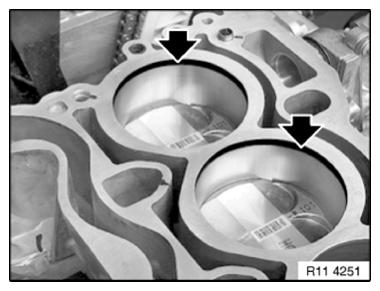

NOTE: In event of heavy oil carbon residue:
Carefully remove oil carbon residue from cylinder wall.
NOTE: Illustration shows N46.
Fig 1: Identifying Oil Carbon Residue On Cylinder Wall
G10042389Courtesy of BMW OF NORTH AMERICA, INC.

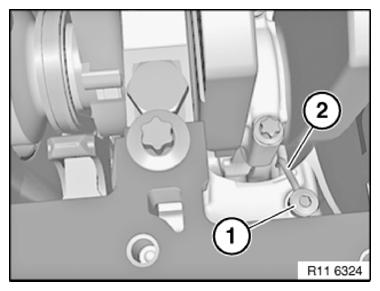

IMPORTANT: Do not release screw (1).
OIL SPRAY NOZZLE  (2) must not be maladjusted or bent.
If necessary, readjust (risk of damage)  .
Fig 2: Identifying Oil Spray Nozzle And Screw
G10042390Courtesy of BMW OF NORTH AMERICA, INC.

Release connecting rod bolts (1).

Tightening torque 11 24 1AZ .

Remove connecting rod bearing cap (2).

IMPORTANT: Connecting rods and connecting rod bearing caps are marked with the same pairing letters; mixing them up will result in engine damage.

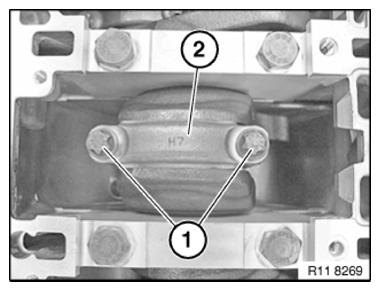

Fig 3: Identifying Connecting Rod Bolts And Bearing Cap
G10042391Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 8 590 into big end of connecting rod.

Press out connecting rod and piston to cylinder head side.

IMPORTANT: Risk of damage  to oil spray nozzle.

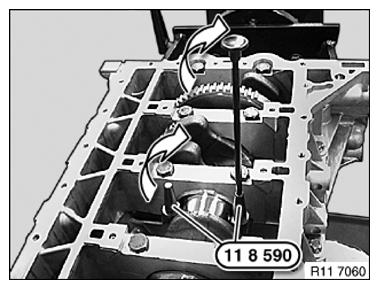

Fig 4: Identifying Connecting Rod And Special Tool 11 8 590
G10042392Courtesy of BMW OF NORTH AMERICA, INC.

Preliminary work:

Secure special tool 11 4 491 in vice.

Secure piston (1) with connecting rod to special tool 11 4 491 .

NOTE: Illustration shows N52.

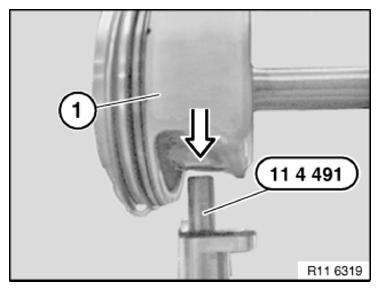

Fig 5: Securing Piston With Connecting Rod To Special Tool
G10042393Courtesy of BMW OF NORTH AMERICA, INC.
WARNING: Safety goggles  must be worn for the next operation.
WARNING: Safety goggles  must be worn.

To lever out piston circlip (1), support with special tool 11 4 492 on piston (2).

Lever out piston circlip (1) with special tool 11 4 492 in direction of arrow.

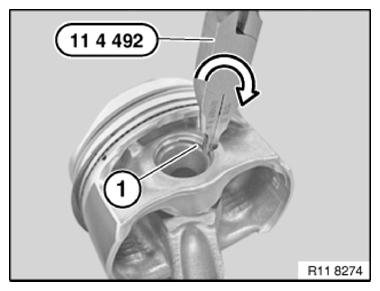

Fig 6: Removing Piston Circlip
G10042394Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Connecting rods are divided into weight classes and are only available as a set.
Old and new connecting rods must not be installed in mixed combinations.

Installation note:

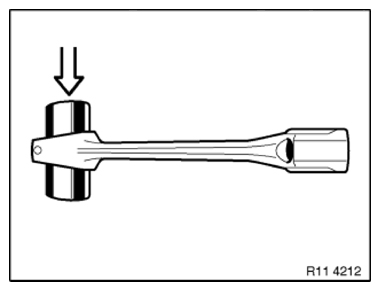

The gudgeon pin must be able to be pressed through the bush by hand with little force and must not display any significant play.

Fig 7: Pressing Gudgeon Pin Through Bush
G10042395Courtesy of BMW OF NORTH AMERICA, INC.

Measure PISTON INSTALLATION CLEARANCE :

Measure piston diameter with micrometer at measuring point A from lower edge of piston and offset at 90° to the axis of the gudgeon pin.

Piston diameter at measuring point A.

Fig 8: Measuring Piston Diameter
G10042396Courtesy of BMW OF NORTH AMERICA, INC.

Adjust micrometer to cylinder bore of engine block. Set internal measuring device on micrometer to zero. Measure bottom, center and top of cylinder bore in direction of travel and direction of rotation.

Diameter of cylinder bore.

Piston installation clearance.

Permissible total wear clearance  . See N55-01B1S1 ENGINE BLOCK, CYLINDER CRANKCASE, BMW, N55, B30 and N55-01B1S1 PISTONS WITH RINGS AND PINS, BMW, N55, B30 .

Installation note:

If necessary, replace piston.

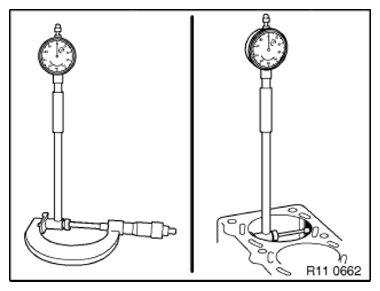

Fig 9: Measuring Cylinder Bore Diameter
G10042397Courtesy of BMW OF NORTH AMERICA, INC.
WARNING: Safety goggles  must be worn.
IMPORTANT: The opening of the piston pin circlip must be installed on the piston in the 6 o'clock position.
Risk of damage!

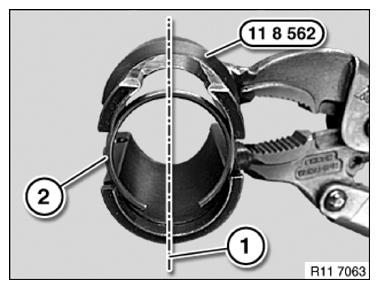

Insert piston circlip (2) into groove of special tool 11 8 562 .

Bring piston circlip (2) into installation position (1).

Fig 10: Identifying Installation Position For Piston Circlip
G10042398Courtesy of BMW OF NORTH AMERICA, INC.
WARNING: Safety goggles  must be worn.

Slide on special tool 11 8 564 up to piston pin circlip (1)

Special tools 11 8 562 and 11 8 564 are prepared.

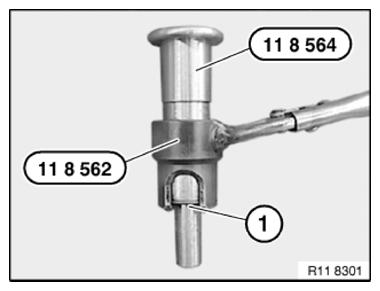

Fig 11: Sliding Piston Pin Circlip Onto Special Tool 11 8 564
G10042399Courtesy of BMW OF NORTH AMERICA, INC.
WARNING: Safety goggles  must be worn.

The aperture on special tool 11 8 562 must point to piston crown; only then can special tool 11 8 564 be fitted correctly.

If the special tools 11 8 562 and 11 8 564 are not positioned correctly, the piston pin circlip must be driven in using a plastic hammer in direction of arrow.

NOTE: See Fig 12.

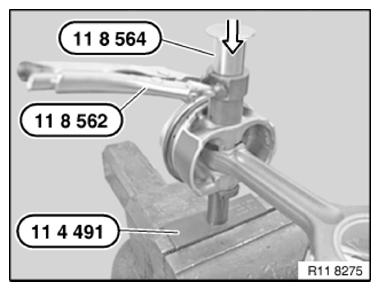

Fig 12: Installing Piston Pin Circlip Using Special Tool (11 8 564)
G10042400Courtesy of BMW OF NORTH AMERICA, INC.

Piston pin circlip is correctly installed when opening (1) points downwards.

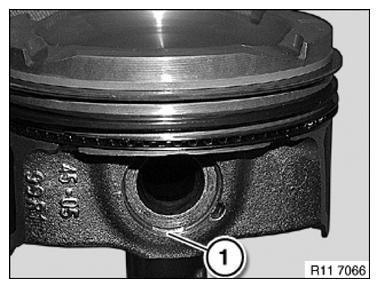

Fig 13: Identifying Correct Installation Position Of Piston Pin Circlip
G10042401Courtesy of BMW OF NORTH AMERICA, INC.

Install all PISTON RINGS .

Install all BEARING SHELLS .

Coat piston and piston rings with oil.

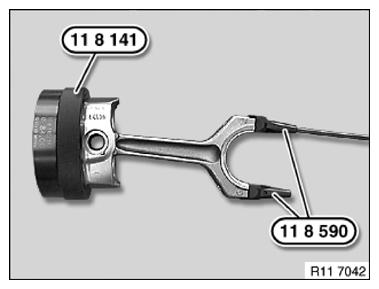

Pre-install piston (2) in special tool 11 8 141 .

Screw on special tool 11 8 590 in connecting rod (2).

Installation note:

Make sure protective lugs (1) on special tool 11 8 590 are positioned correctly and check for damage.

Fig 14: Identifying Piston And Special Tools
G10042402Courtesy of BMW OF NORTH AMERICA, INC.

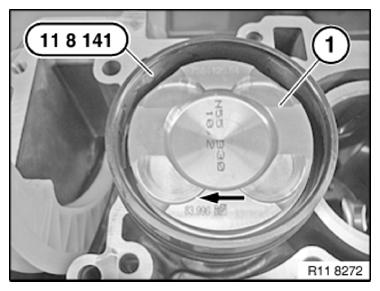

Insert piston with connecting rod in cylinder.

IMPORTANT: Risk of damage to oil spray nozzle.
Risk of breakage of piston rings.
Press in piston in direction of arrow with finger pressure only, do not drive in.

Insert piston so that arrow on piston crown points to camshaft drive.

Press in piston (1) with special tool 11 8 141 .

Fig 15: Installing Piston Into Cylinder Using Special Tool (11 8 141)
G10042403Courtesy of BMW OF NORTH AMERICA, INC.

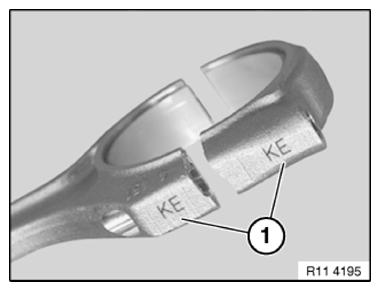

IMPORTANT: Connecting rod and connecting rod bearing cap are marked with pairing letters (1) and must not be mixed up.
Swapping or incorrect assembly the connecting rod bearing cap on the big end will result in engine damage  .
Fig 16: Identifying Connecting Rod Pairing Letters
G10042404Courtesy of BMW OF NORTH AMERICA, INC.

Apply a light coat of oil to crankshaft journal.

Assemble connecting rod and crankshaft journal.

Screw off special tool 11 8 590 in anticlockwise direction.

NOTE: Illustration shows N54.
Fig 17: Identifying Connecting Rod And Special Tool 11 8 590
G10042405Courtesy of BMW OF NORTH AMERICA, INC.

Fit bearing caps (2) so that pairing letters match up.

Install new connecting rod bolts (1).

Join connecting rod bolts (1).

Tightening torque 11 24 1AZ .

Fig 18: Identifying Connecting Rod Bolts And Bearing Cap
G10042406Courtesy of BMW OF NORTH AMERICA, INC.

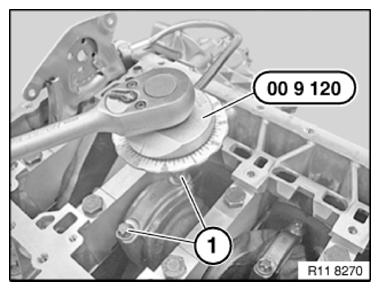

Secure connecting rod bolts (1) with special tool 00 9 120 .

Tightening torque 11 24 1AZ .

Fig 19: Tightening Connecting Rod Bolts Using Special Tool 00 9 120
G10042407Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
