11 13 000 Removing and installing, sealing or replacing oil sump (N55, AWD)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Aluminum screws/bolts are permitted with and without color coding (blue).
Aluminum screws/bolts must be replaced each time they are released .
For reliable identification:
Aluminum screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary tasks:

REMOVE LEFT CHARGE AIR DUCT .
Drain and add ENGINE OIL .
Remove FRONT AXLE DIFFERENTIAL .
Remove bearing support.
Detach power steering pump and set it aside (Dynamic Drive only). See applicable procedure for drivetrain configuration: 32 41 037 REMOVING AND INSTALLING/REPLACING POWER STEERING PUMP FOR HYDRAULIC STEERING GEAR WITH DYNAMIC DRIVE (N55) or 32 41 090 REMOVING AND INSTALLING (REPLACING) HYDRAULIC PUMP FOR DYNAMIC DRIVE (N55) .
Remove ENGINE SUPPORT ARM .
Detach deflecting element and holder from oil sump.

NOTE: The lines must be detached from the oil sump on vehicles with automatic transmission; if necessary, detach oil pump and place to one side.

Release bolts (3) on transmission.

Tightening torque 11 13 6AZ .

Detach return hose (2).

IMPORTANT: For vehicles with four-wheel drive or automatic transmission, bolts of different lengths are installed for mounting the oil sump.
Observe different tightening torques.

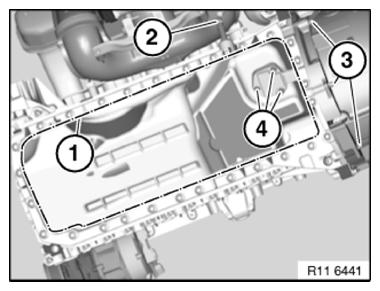

Fig 1: Identifying Oil Sump Bolts And Transmission Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts along line (1).

For vehicles with four-wheel drive or automatic transmission:

Tightening torque 11 13 2 AND 3AZ .

Additionally for vehicles with four-wheel drive:

Tightening torque 11 13 4AZ .

Installation note:

Replace aluminum screws.

If necessary, release nuts (4). Remove oil level sensor.

Tightening torque 11 13 7AZ .

Installation note:

Replace sealing ring.

IMPORTANT: There must be no adhesive residues in the lower crankcase section retaining threads.
Clean retaining threads and sealing surfaces.

Installation note:

Replace all gaskets.

Assemble engine.
