11 22 500 Removing and installing/replacing flywheel (N55)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Aluminum screws/bolts must be replaced each time they are released .
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary tasks:

Remove GEARBOX
Remove clutch

Automatic transmission:

Secure flywheel (1) with special tool 11 9 260 .

Unfasten flywheel bolts.

Tightening torque 11 22 1AZ .

Installation note:

Flywheel (1) is secured with an dowel pin.

Fig 1: Securing Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

Manual gearbox:

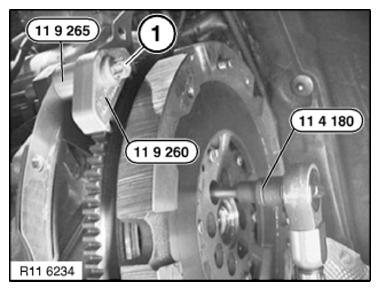

Fasten dual-mass flywheel with special tool 11 9 260 and 11 9 265 .

Release flywheel bolts with special tool 11 4 180 /

Tightening torque 11 22 2AZ .

Installation note:

Fit new flywheel bolts.

Clean all threads for flywheel bolts in crankshaft.

Fig 2: Releasing Flywheel Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

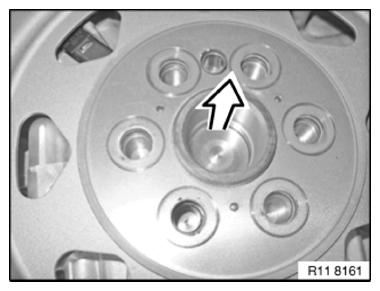

Installation note:

Pay attention to dowel pin.

Fig 3: Removing Dowel Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Ensure installed position of magnet wheel is correct.

Fig 4: Identifying Magnet Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
