41 62 014 Adjusting tailgate

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Do not damage adjoining body components.
Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.

Read contents of BODY, GENERAL .

Observe GAP DIMENSIONS .

The tailgate must be provided with all attachment parts for correct adjustment.

When the tailgate is closed, the lock striker must not touch or scrape against the tailgate lock.

If necessary, remove lock striker.

Necessary preliminary tasks:

Remove HEADLINING
Remove ROOF SPOILER

Adjusting tailgate laterally and in longitudinal direction:

Slacken nuts (1) and adjust tailgate.

Tightening torque 41 62 1AZ .

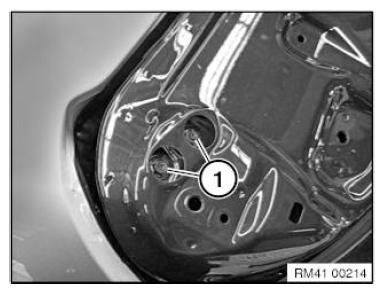

Fig 1: Identifying Tailgate Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting the tailgate sideways and vertically:

Slacken nuts (1) and adjust tailgate.

Tightening torque 41 62 2AZ .

Adjust TAILGATE CATCH .

Adjust STOP PAD .

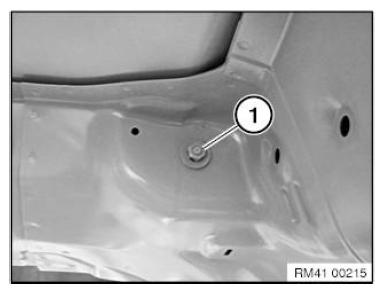

Fig 2: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

After Installation note:

Tighten all screws and nuts to specified torque.
Touch up unpainted surfaces in the appropriate color.
