41 00... Gap dimensions, body

WARNING: This page is about a different variant/trim than selected.

NOTE: Symmetry of the gaps between left and right sides of the vehicle has top priority.
The door gaps must not deviate between the front and rear door gap by more than 1.0 mm.
Adjust headlight and rear light with constant all-round gap (visually).

Dimensions in mm

Fig 1: Body Panel Gap Dimensions (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension (1) 5.0 reduces to the rear to 3.9 in direction of travel

Dimension (2) 5.7 increases outwards to 6.1

Dimension (3) 2.9 reduces to the rear to 3.4 in direction of travel

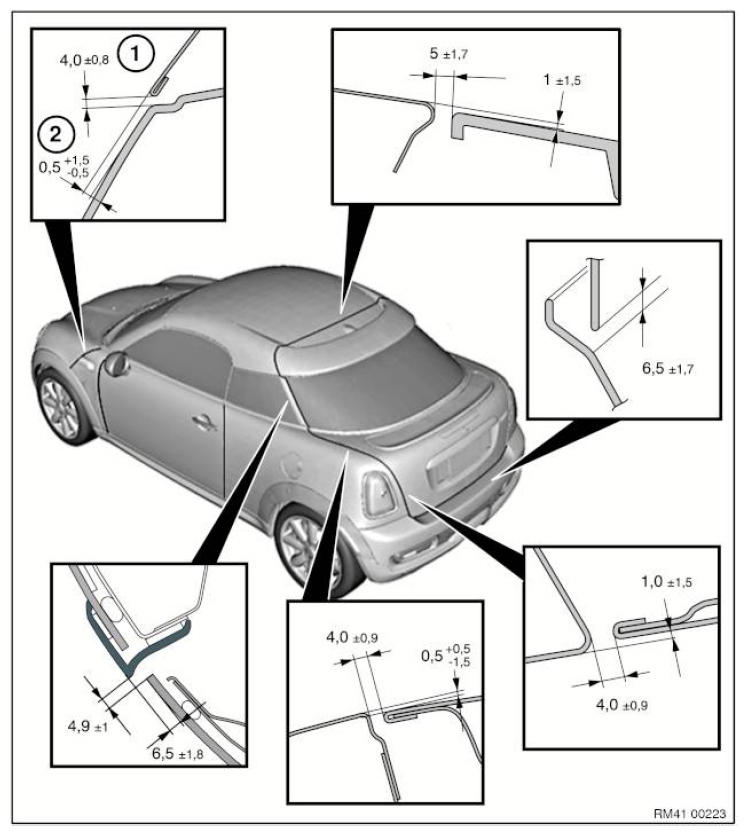

Fig 2: Body Panel Gap Dimensions (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension (1) 4.0 reduces to the rear to 3.1 in direction of travel

Dimension (2) 0.5 reduces to the rear to 0 in direction of travel

Rear lid
Rear spoiler

Fig 3: Body Gap Dimension Between Rear Lid And Rear Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.
