51 44 001 Removing and installing/replacing headlining

WARNING: This page is about a different variant/trim than selected.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Release expanding rivet (1).

Undo the headlining (2) at the clips (3).

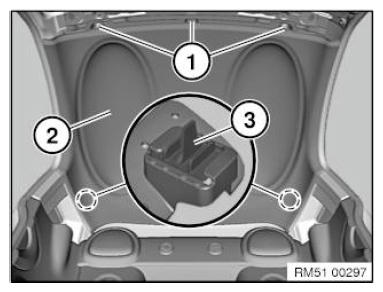

Fig 1: Identifying Expanding Rivet, Headlining And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Release expanding rivet (1).

IMPORTANT: Perform the following repair work with a second person to give assistance.

Loosen the edge protection (2) at the door/luggage compartment lid cutout around the headlining (3).

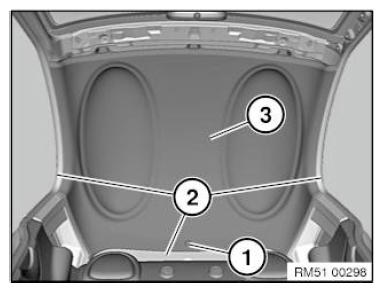

Fig 2: Identifying Expanding Rivet, Edge Protection And Headlining

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the headlining (3) through the front passenger side door aperture.

Installation note:

Make sure EDGE PROTECTION (2) is correctly seated.
