51 24 004 Adjusting tailgate lock

WARNING: This page is about a different variant/trim than selected.

Prerequisite:

Rear lid must be correctly adjusted to fit; if necessary, ADJUST REAR LID .

Necessary preliminary work:

Slacken screws (1) until tailgate lock (3) can still just be moved and centers itself.

Close tailgate, check gap dimensions and checking closing comfort.

Striker (2) must be centrally positioned in tailgate lock (3), repeat process if necessary.

NOTE: When the tailgate is closed, the striker must not touch or scrape against the rear lid lock. Look out for scratch marks.

Fig 1: Identifying Tailgate Lock, Striker And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Open tailgate.

Adjust tailgate lock (2) vertically so that upper edges of washers are flush with edge of tailgate lock (2).

Tighten down screws (1).

Tightening torque 51 24 1AZ .

After adjustment: grease tailgate lock (3).

Fig 2: Identifying Tailgate Lock And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

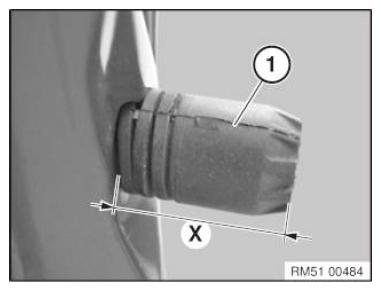

Unscrew stop buffer (1) by dimension (X).

Dimension (X) = 38 mm

Close rear lid.

Check alignment and closing function of tailgate and tailgate lock; readjust stop buffer (1) if necessary.

Twist stop pad (1) max. ±1 turn.

Fig 3: Unscrewing Stop Buffer

Courtesy of BMW OF NORTH AMERICA, INC.

Checking adjustment:

Insert a strip of paper (normal writing paper) between stop pad (1) and limit position on body
Close the tailgate and make sure that the paper strip remains between stop pad (1) and limit position
Stop pad (1) is correctly adjusted when the paper strip can be pulled out with "slight" resistance

Fig 4: Checking Stop Pad Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Apply setting:

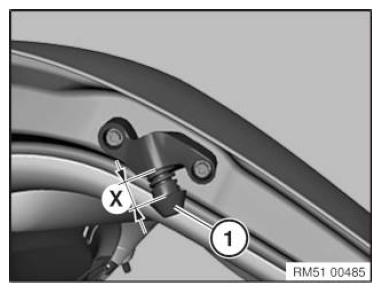

Adjust stop buffer (1) to dimension (X).
Dimension (X) = 8 mm
Close tailgate and check whether paper strip can be pulled out with a degree of resistance; if necessary readjust stop buffer (3).
Twist stop buffer (1) max. ±1 turn.
