51 71 260 Remove and fit (replace) roof spoiler

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Lever out plug (1) and undo nuts underneath.

Tightening torque 51 71 12AZ .

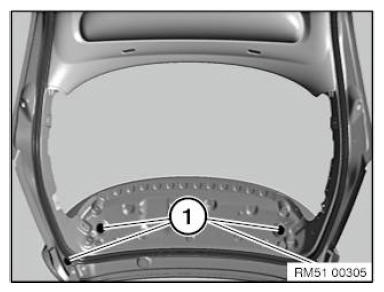

Fig 1: Identifying Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Undo the roof spoiler (1) in the highlighted areas from the clips (2) and remove towards the top.

Installation note:

If necessary, replace faulty clips (2).

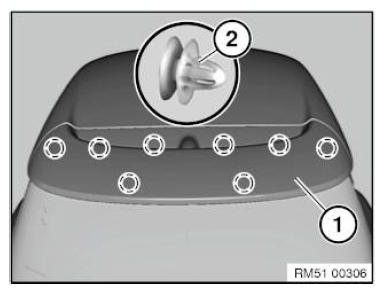

Fig 2: Locating Roof Spoiler Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The following parts must not be damaged or missing from the roof spoiler (1):

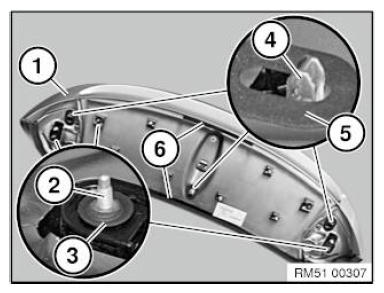

Fig 3: Locating Roof Spoiler Guides, Gaskets, Sealing And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
