51 45 072 Removing and installing dashboard with support

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Move wheels into straight-ahead position
Disconnect BATTERY NEGATIVE LEAD .
Remove trim for roof pillar at front (A-pillar), left or right .
Remove door sill cover strip at front left and right .
Remove storage compartment .
Remove heating center console trim .
Remove glove box lid .
Remove side air outlet grille lid cover left and right, see bottom air outlet grille cover .
Note: For version with storage compartment or CD changer, no dismantling of right decorative trim.
Remove LOWER SECTION OF STEERING COLUMN TRIM .
Remove 6 CONTROL PANEL FOR HEATER - A/C SYSTEM .

Depending on version:

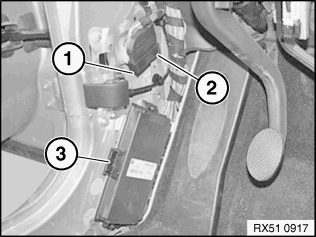

Disconnect left plug connection (1) up to (3) A-pillar.

Fig 1: Identifying Left Connector

Courtesy of BMW OF NORTH AMERICA, INC.

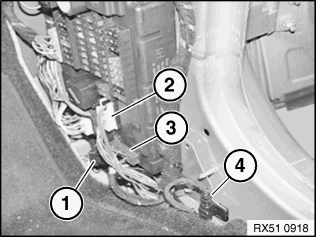

Disconnect right plug connection (1) up to (4) A-pillar.

Fig 2: Identifying Right Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage cable (1) for handbrake switch.

Fig 3: Disengaging Cable For Handbrake Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) for airbag control unit.

Fig 4: Identifying Connection For Airbag Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

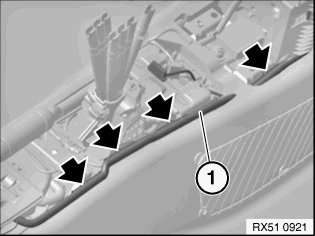

Unclip wiring harness (1) on driving area and center console.

Fig 5: Unclipping Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Remove STEERING COLUMN .

(Complete with steering wheel, airbag, steering column switch cluster)

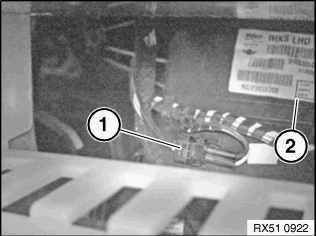

Disconnect plug connection (1) at air conditioner (2).

Fig 6: Identifying Connector At Air Conditioner

Courtesy of BMW OF NORTH AMERICA, INC.

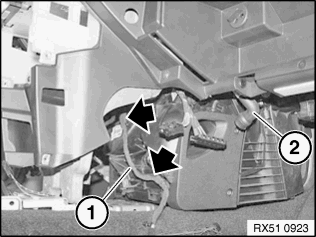

Unclip wiring harness (1).

Detach cooling hose (2).

Fig 7: Identifying Wiring Harness And Cooling Hose

Courtesy of BMW OF NORTH AMERICA, INC.

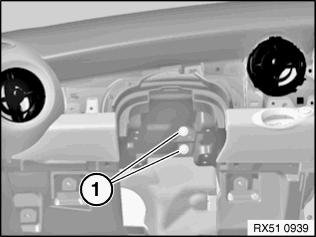

Release screws (1) above steering column.

Fig 8: Identifying Screws Above Steering Column

Courtesy of BMW OF NORTH AMERICA, INC.

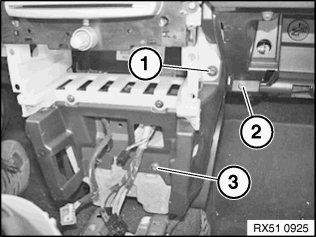

Unfasten screws (1) to (3).

Fig 9: Identifying Screws (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

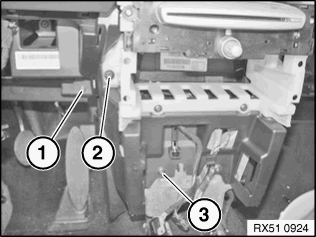

Unfasten screws (1) to (3).

Fig 10: Identifying Screws (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

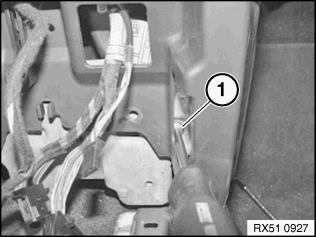

Release left screw (1) underneath air conditioner controls.

Fig 11: Identifying Left Screw Underneath Air Conditioner Controls

Courtesy of BMW OF NORTH AMERICA, INC.

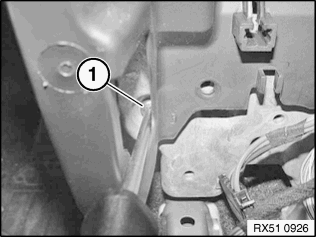

Release right screw (1) underneath air conditioner controls.

Fig 12: Identifying Right Screw Underneath Air Conditioner Controls

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: For the following repair work, use a step drill with a large diameter, otherwise the background will be damaged while drilling the 20 mm dia. access holes.

Fig 13: Identifying 20-30mm Step Drill Bit

Courtesy of BMW OF NORTH AMERICA, INC.

Make access drill holes (2) of 20 mm dia. left next to the aperture (1) for air conditioning controls.

Fig 14: Locating Area For Access Drill Holes At Left Of Aperture For A/C Controls

Courtesy of BMW OF NORTH AMERICA, INC.

Determine and mark center of access drill hole as follows:

Line up the edge of the deepening (1) to side.
Distance to flank (2) - (A) = 14 mm.

Release screw becoming visible behind the access drill holes.

Installation note:

Close off access drill holes with plugs.

BMW/MINI Part Number 51 71 1 801 066

Fig 15: Marking Center Of Access Drill Hole

Courtesy of BMW OF NORTH AMERICA, INC.

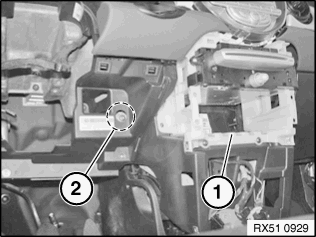

Make access drill holes of 20 mm dia. left (1) and right (2) in the glove box aperture.

Fig 16: Locating Area For Access Drill Holes At Left And Right In Glove Box Aperture

Courtesy of BMW OF NORTH AMERICA, INC.

Left access drill hole:

Determine and mark center of access drill hole as follows:

Distance to flank (1) - (A) = 16 mm.
Distance to profile corner (2) - (B) = 26 mm.

Fig 17: Marking Center Of Left Access Drill Hole

Courtesy of BMW OF NORTH AMERICA, INC.

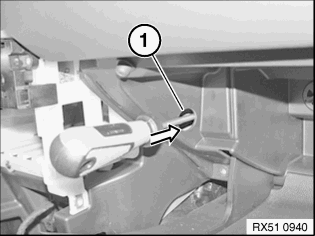

Release screw, reachable sideways from front, through the access drill holes (1).

Installation note:

Close off access drill holes with plugs.

BMW/MINI Part Number 51 71 1 801 066

Fig 18: Releasing Screw Through Access Drill Holes

Courtesy of BMW OF NORTH AMERICA, INC.

Right access drill hole:

Determine and mark center of access drill hole as follows:

Line up the edge of the flank (1) to the bottom.
Distance to top flank (2) - (A) = 58 mm.

Release screw becoming visible behind the access drill holes.

Installation note:

Close off access drill holes with plugs.

BMW/MINI Part Number 51 71 1 801 066

Fig 19: Marking Center Of Right Access Drill Hole

Courtesy of BMW OF NORTH AMERICA, INC.

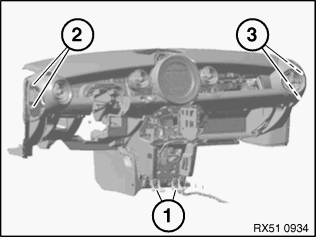

Unfasten retaining bracket (1).

Release side screws (2) and (3).

Pull off dashboard complete with support.

Fig 20: Locating Retaining Bracket And Side Screws

Courtesy of BMW OF NORTH AMERICA, INC.
