11 00 050 Removing and installing engine (M62)

Follow instructions for disconnecting and connecting battery, refer to 12 00 INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Disconnect negative battery lead.

Lift engine hood into assembly position.

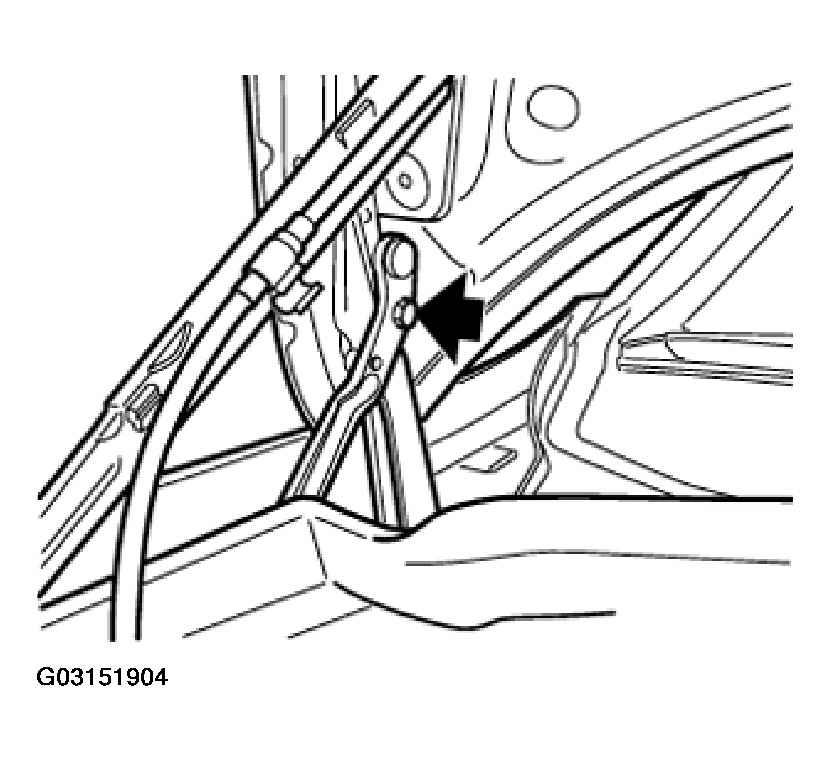

Disconnect damper on hood, open hood fully and secure with a screw on left and right sides.

Fig 1: Securing Engine Hood With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Version 1

(Acoustic cover screwed down)

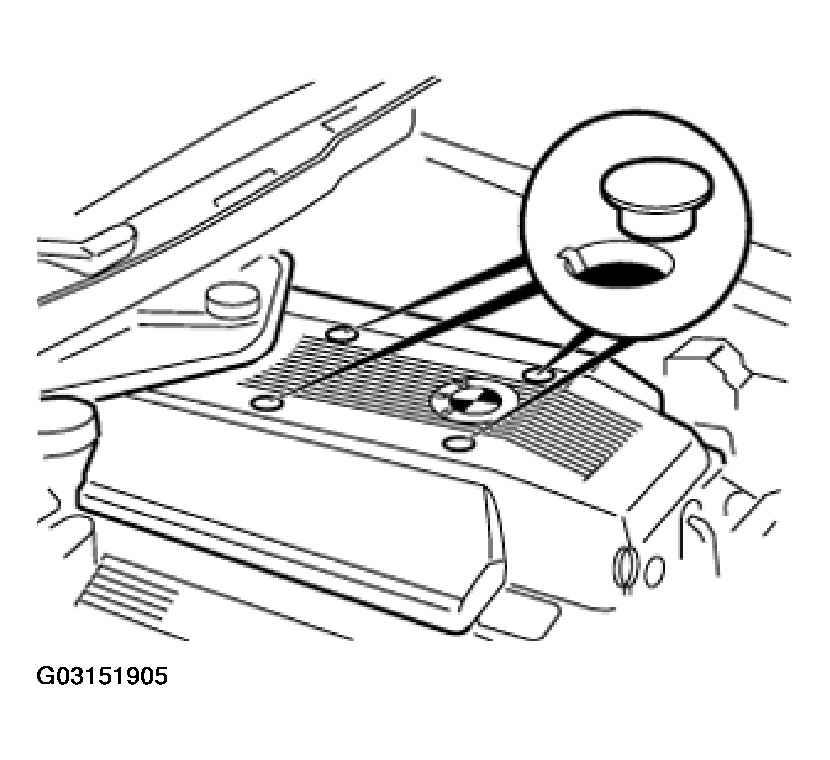

Pry out sealing cap. Unscrew nuts.

Remove acoustic cover.

Fig 2: Removing Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

(Acoustic cover with press-stud fastener)

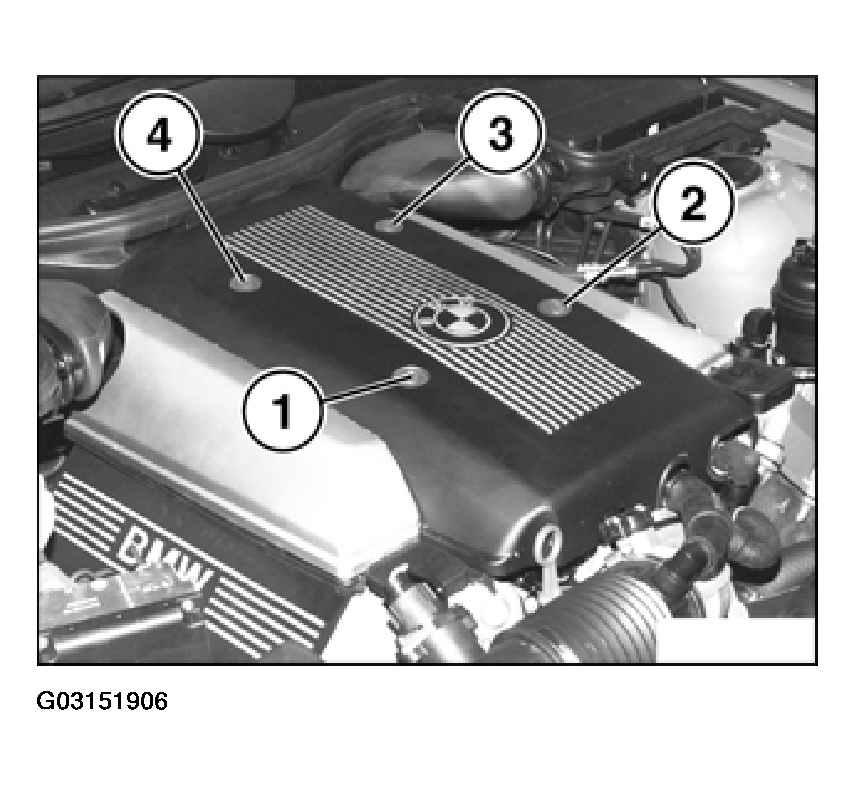

Press press-stud fasteners (1 to 4) in succession and simultaneously raise acoustic cover slightly; remove acoustic cover once all four press-stud fasteners have been unlocked.

Installation

Position acoustic cover and press downwards until press-stud fasteners (1 to 4) click into place.

Fig 3: Pressing Press-Stud Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

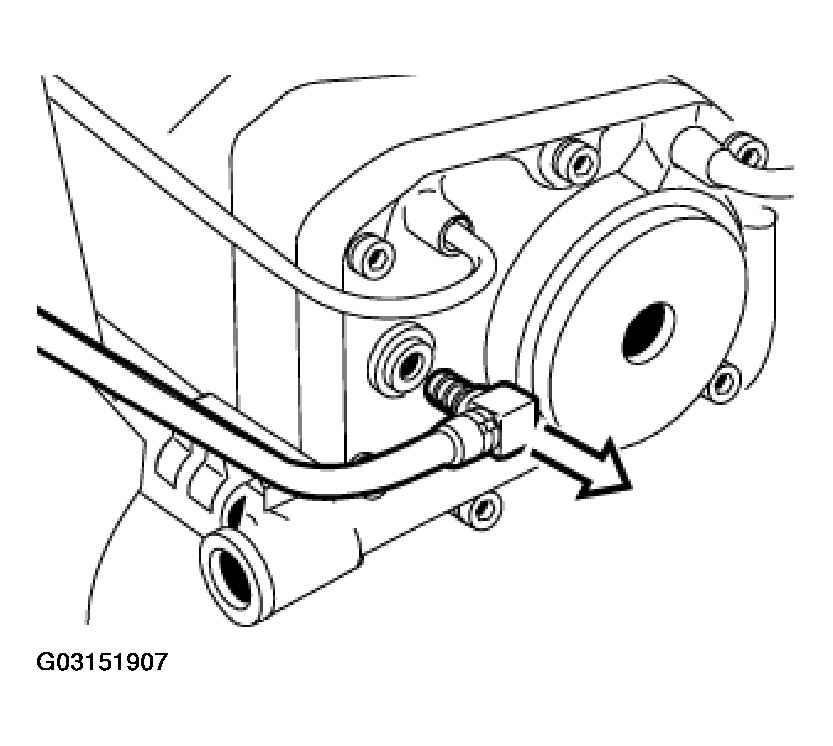

Remove connector for brake force booster.

Fig 4: Removing Connector For Brake Force Booster

Courtesy of BMW OF NORTH AMERICA, INC.

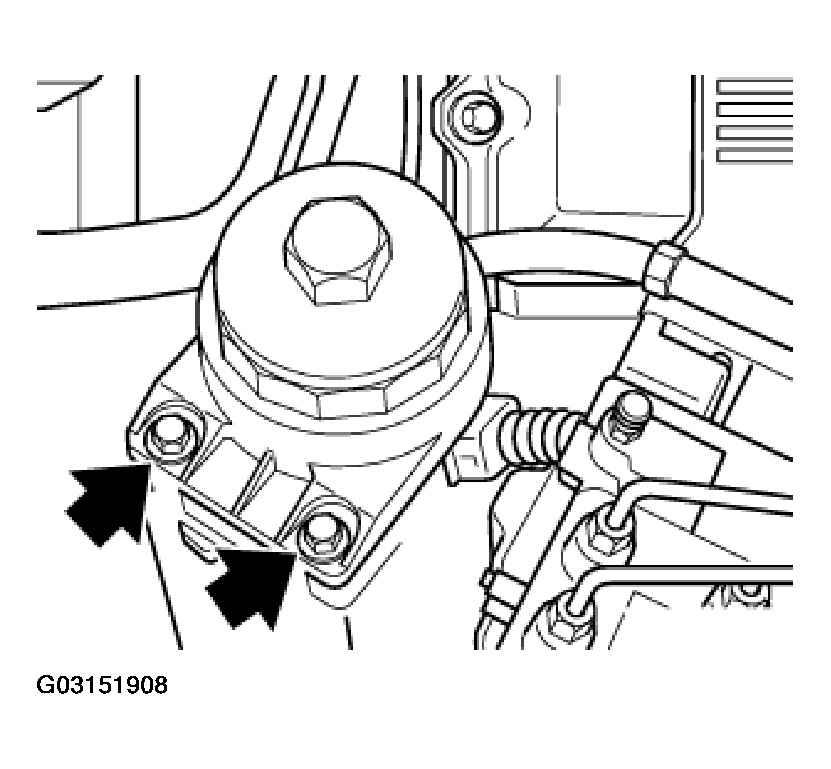

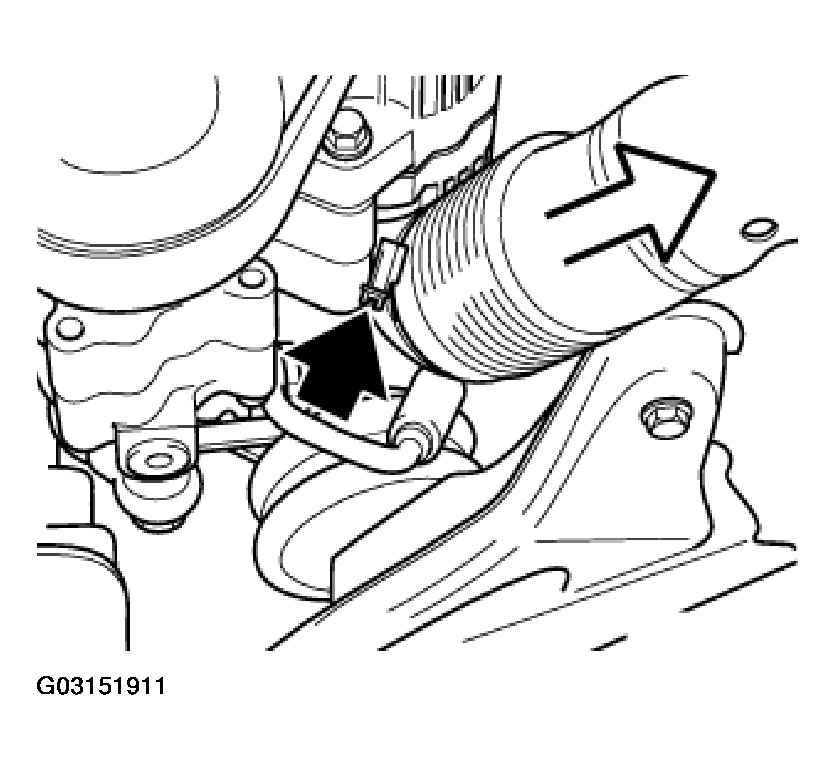

Unfasten main flow oil filter housing from bracket and attach to engine.

Fig 5: Unfastening Main Flow Oil Filter Housing From Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

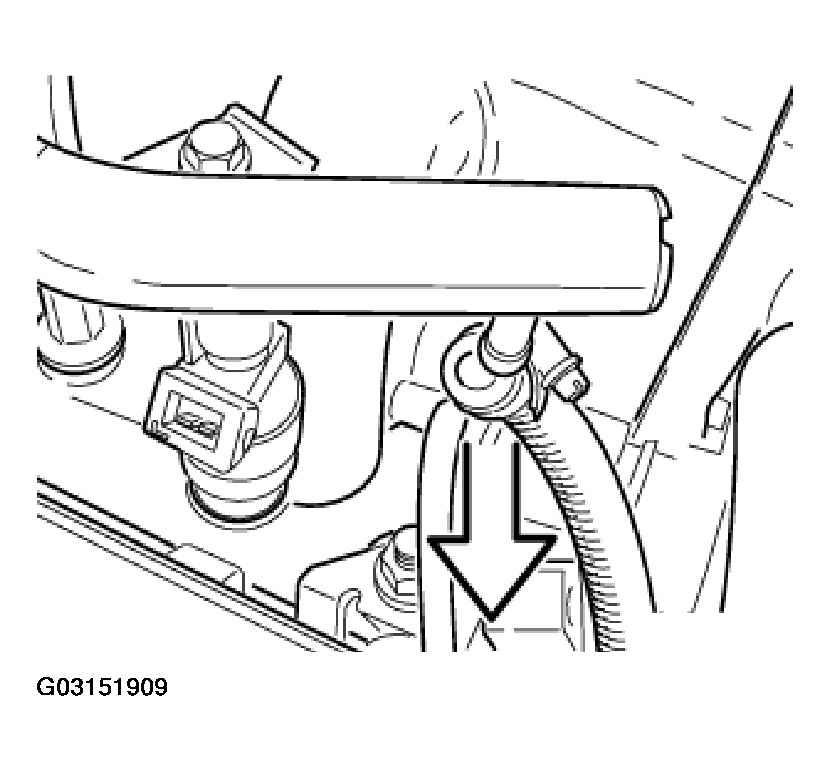

Unfasten fuel feed and return lines to injector tube.

Follow instructions for removing and installing fuel hoses, refer to 13 53 540 REPLACING, SEALING FUEL HOSES .

Fig 6: Unfastening Fuel Feed And Return Lines To Injector Tube

Courtesy of BMW OF NORTH AMERICA, INC.

Remove intake filter housing with air-mass flow sensor, refer to 13 71 000 REMOVING AND INSTALLING SUCTION-FILTER HOUSING (M60, M62) .

Remove ASC+T throttle assembly, refer to 13 54 060 REMOVING AND INSTALLING OR REPLACING THROTTLE BODY (ASC+T) (M60, M62) .

Disconnect Bowden cables for throttle valve actuation. This task is described in the work step Removing and installing/sealing throttle assembly, refer to 13 54 060 REMOVING AND INSTALLING OR REPLACING THROTTLE BODY (ASC+T) (M60, M62) .

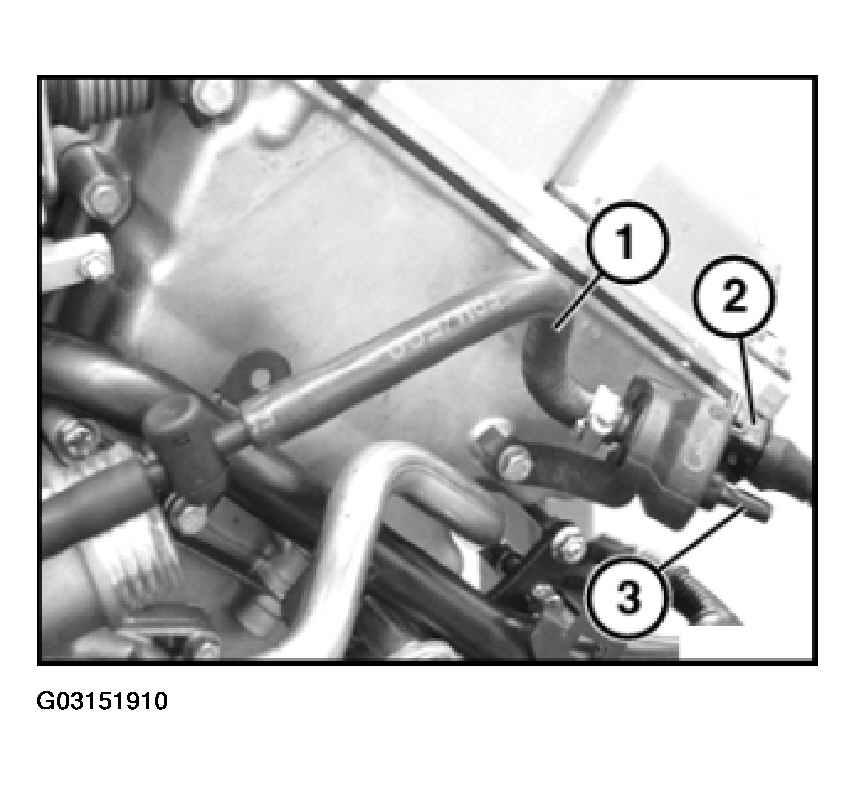

Disconnect plug connection (2) and vacuum hose (3) from tank vent valve.

Fig 7: Disconnecting Plug Connection And Vacuum Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Release wiring harness section for engine and lay to one side with cable ducts, refer to 12 51 001 REPLACING WIRING HARNESS SECTION FOR ENGINE (M60, M62) .

Unclip diagnosis connector on spring strut shock absorber and place to one side.

Unfasten heat baffle plate on left and right sides.

Unfasten drain plug for coolant in left and right engine block.

Drain and dispose of coolant.

Installation

Replace sealing ring.

Tightening torque, refer to 11 11 5AZ in ENGINE - TIGHTENING TORQUES - 540i .

Remove radiator, refer to 17 11 000 REMOVING AND INSTALLING RADIATOR (M62) .

Remove transmission. See AUTOMATIC TRANSMISSION

Unfasten positive battery lead from starter motor.

Remove starter motor.

Unfasten positive battery lead from oil pan and unfasten left carrier bracket and alternator.

Remove cooling air duct for alternator.

Fig 8: Removing Cooling Air Duct For Alternator

Courtesy of BMW OF NORTH AMERICA, INC.

Remove alternator drive belt, refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (M62) .

Remove vane pump, refer to REMOVAL & INSTALLATION .

Remove A/C compressor drive belt, refer to 11 28 050 REPLACING DRIVE BELT FOR A/C COMPRESSOR (M60 / M62 / M73) .

Disconnect A/C compressor from mounting block and tie up to one side.

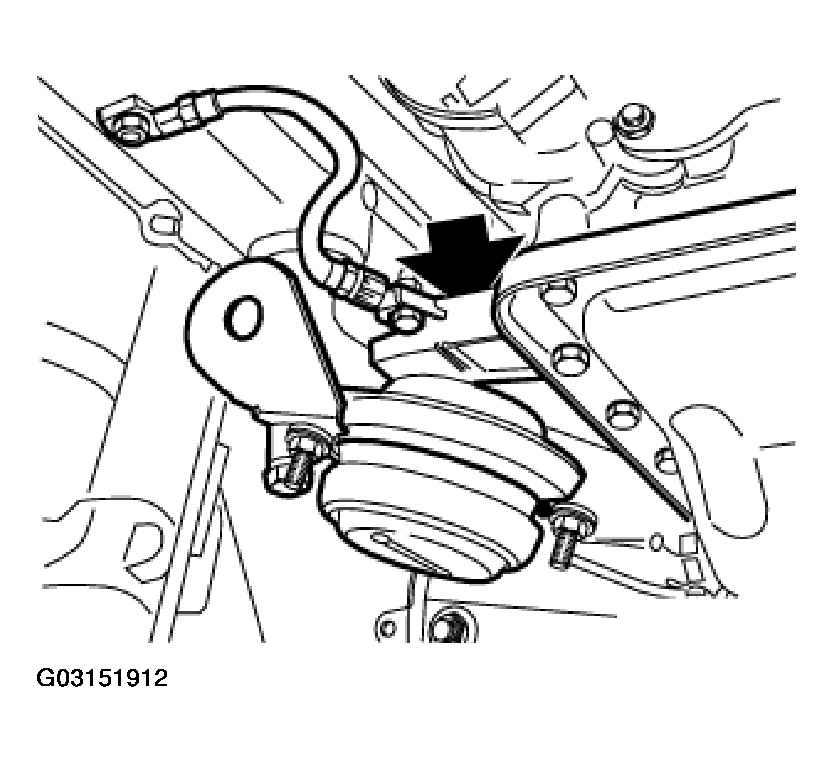

Unfasten ground tape from right of engine support.

Unfasten top left and right nuts on engine mount.

Fig 9: Disconnecting A/C Compressor From Mounting Block

Courtesy of BMW OF NORTH AMERICA, INC.

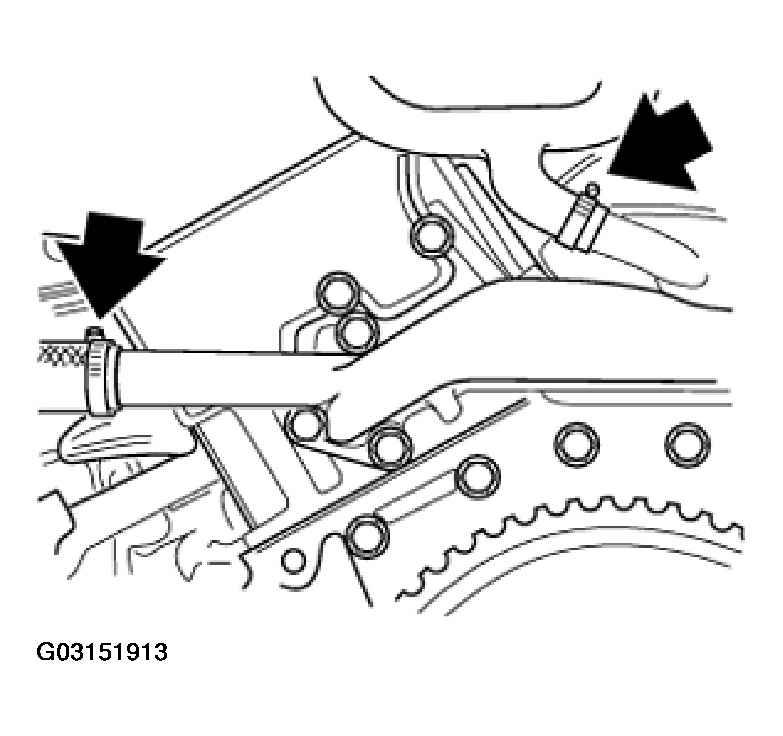

Unfasten coolant hoses from coolant manifold.

Fig 10: Unfastening Coolant Hoses From Coolant Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

Remove left and right exhaust manifolds.

Up to 9/98, refer to 11 62 142 REMOVING AND INSTALLING OR REPLACING BOTH EXHAUST MANIFOLDS ON LEFT (M62 TO 9/98)  / 143.

From 9/98, refer to 11 62 060 REMOVING AND INSTALLING/REPLACING EXHAUST MANIFOLD, LEFT (M62 VANOS FROM 9/98)  / 11 62 065.

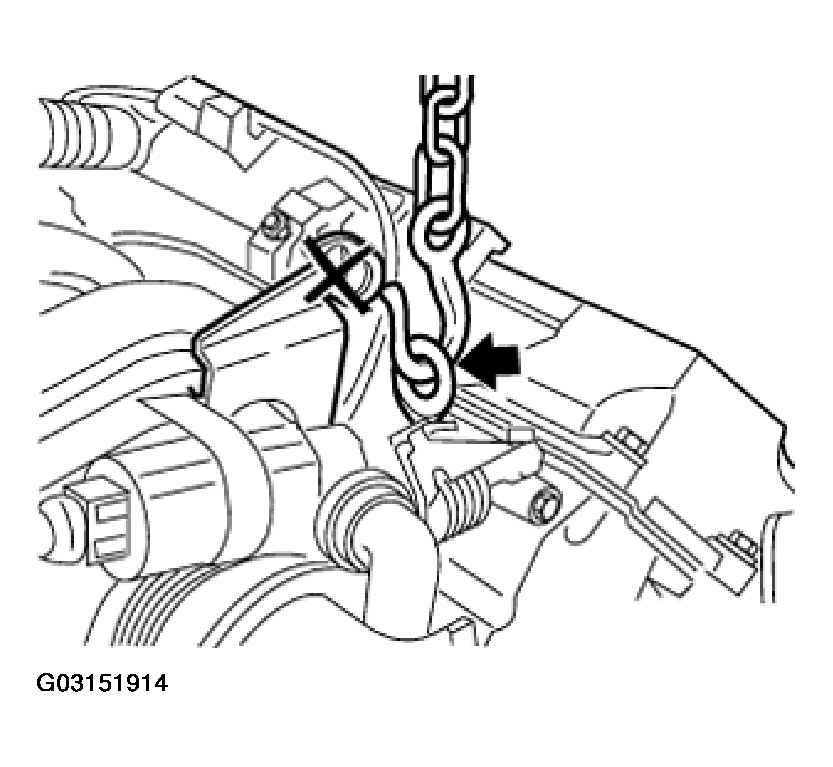

Layout of front engine mount.

Fig 11: Identifying Lugs (Front Engine Mount)

Courtesy of BMW OF NORTH AMERICA, INC.

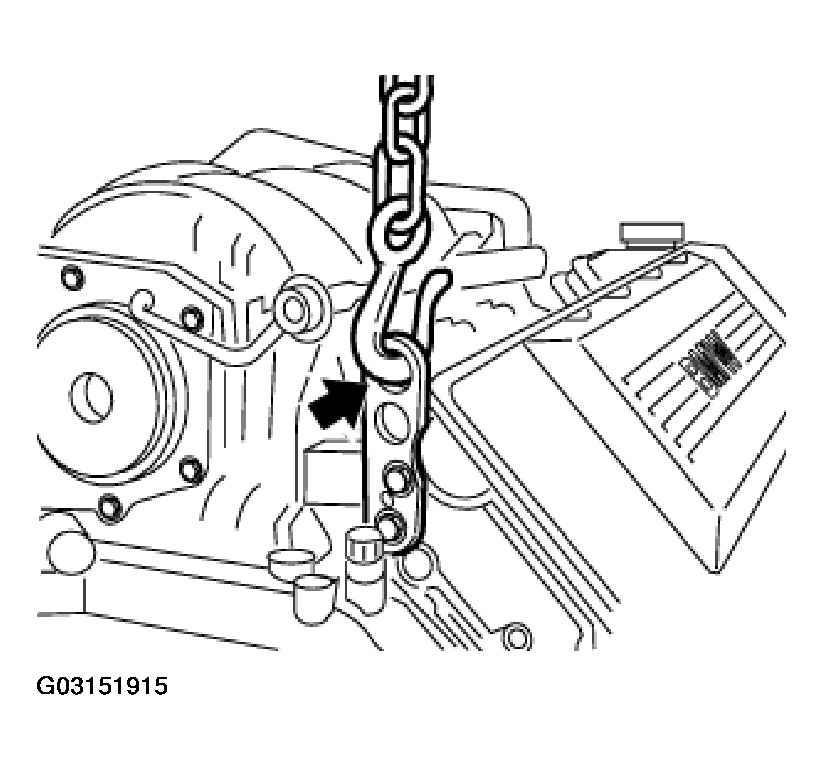

Layout of rear engine mount.

Fig 12: Identifying Lugs (Rear Engine Mount)

Courtesy of BMW OF NORTH AMERICA, INC.

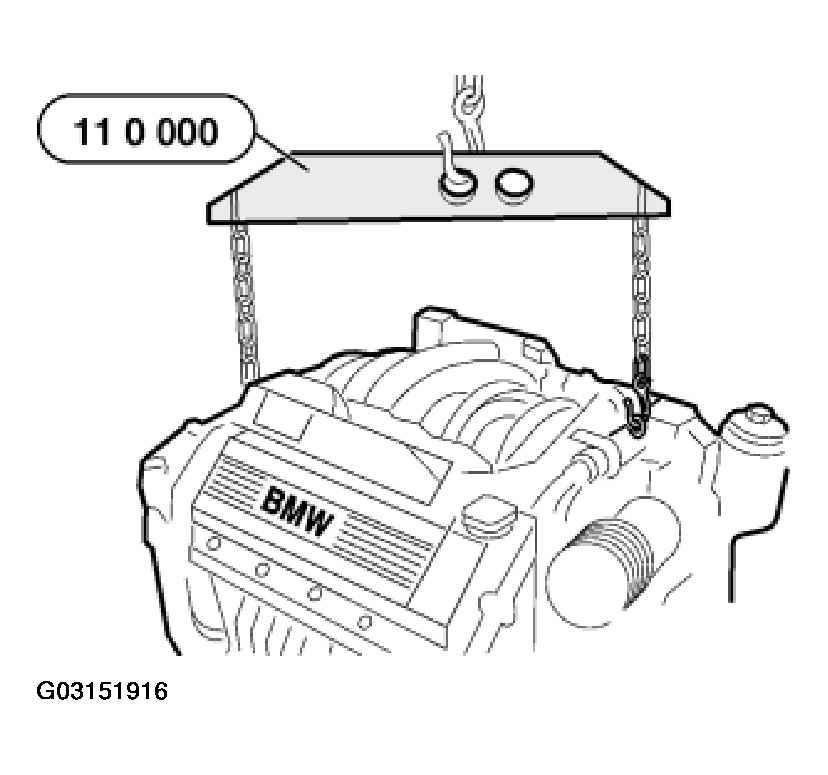

Secure engine to special tool 11 0 000.

Fig 13: Raising Engine Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lift out engine.

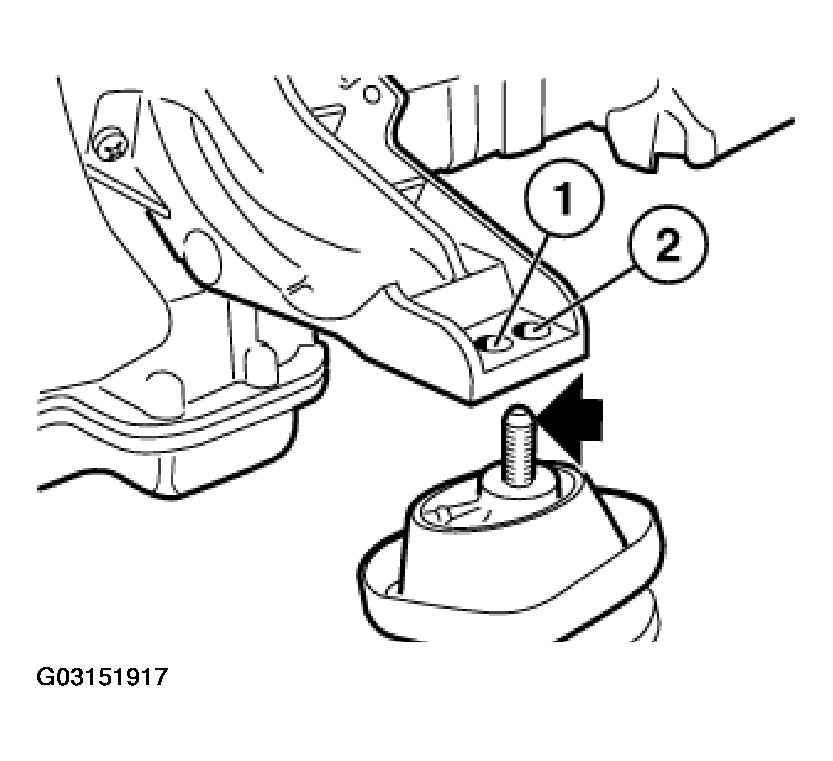

Install engine mount in front bore (1) of support bracket.

Fig 14: Installing Engine Mount In Rear And Front Bore

Courtesy of BMW OF NORTH AMERICA, INC.
