13 53 540 Replacing, sealing fuel hoses

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The fuel in the fuel lines is under pressure (approx. 3-5 bar)!

Recycling

Catch and dispose of escaping fuel.
Observe country-specific waste-disposal regulations.

Version with hose clamps:

Release hose clamps.

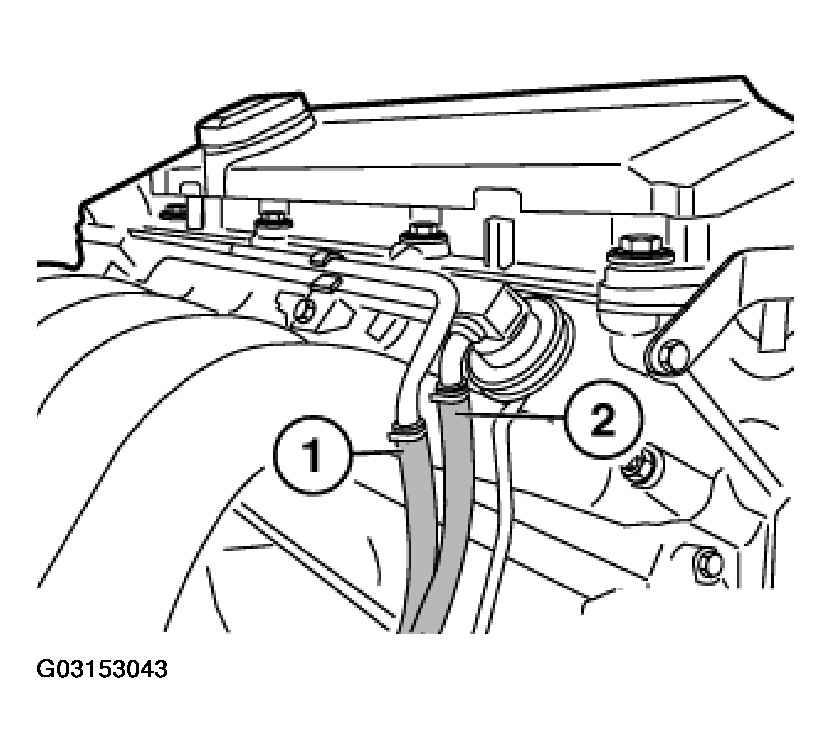

Remove hoses (1) and (2).

Installation

Fuel hoses and hose clamps must be replaced each time they are removed!

Fig 1: Identifying Fuel Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Version with compressed air connection:

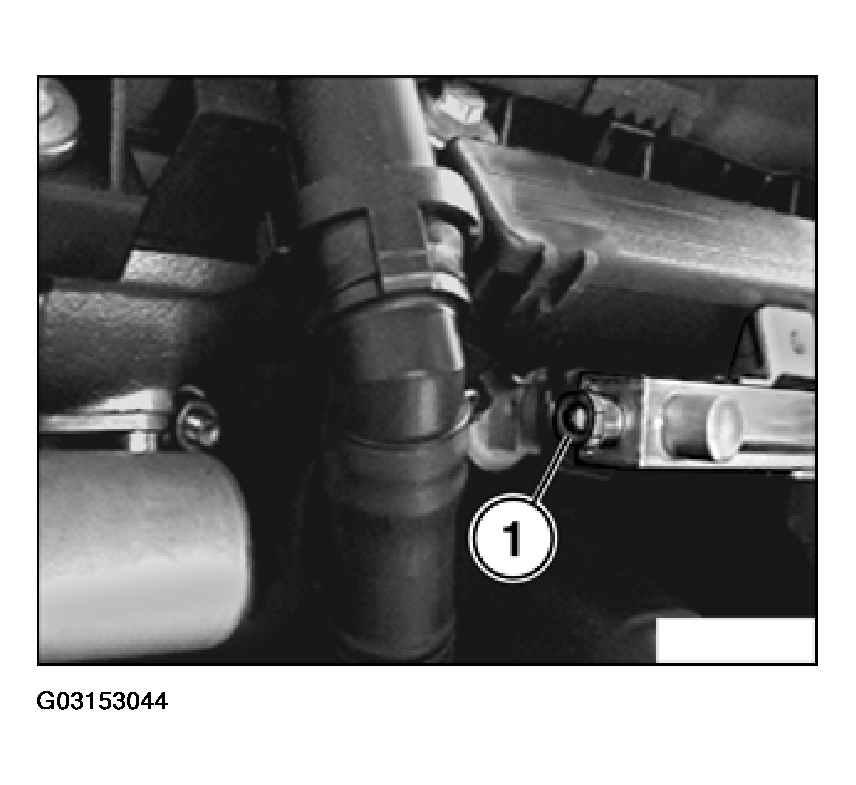

Blow fuel back into tank with a short blast of compressed air (max. 3 bar) at compressed air connection (1).

Fig 2: Locating Compressed Air Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Version, fuel hoses without integrated unlocking facility:

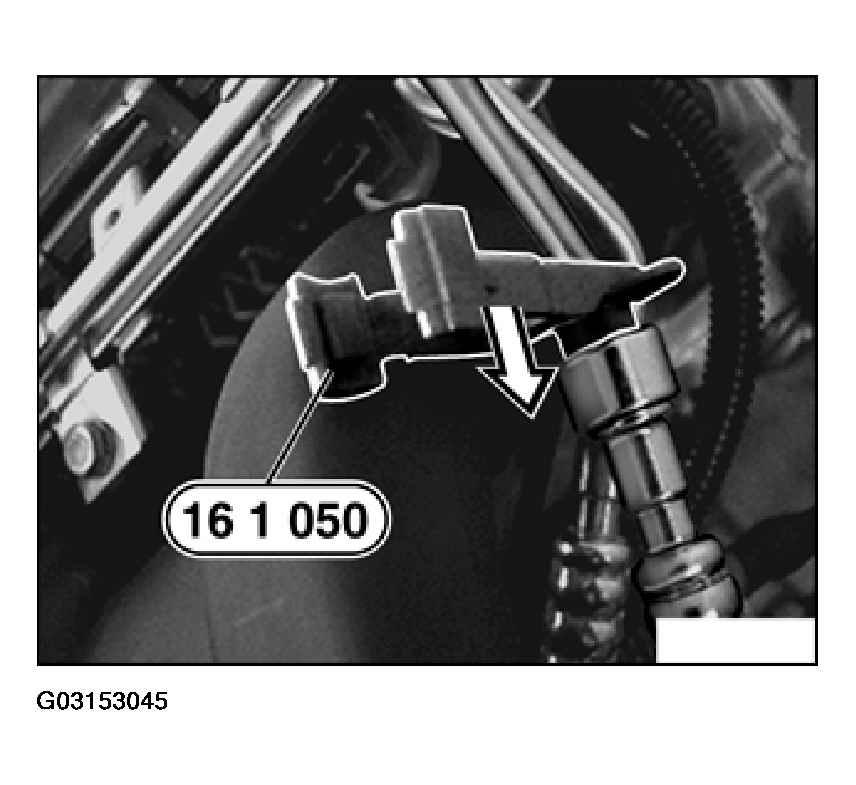

Unlock fuel hoses with special tool 16 1 050 and detach hoses.

Installation

Check O-ring in fuel hose and sealing surfaces on fuel lines for damage; replace components if necessary.
Coat O-ring for assembly with anti-friction agent.

Fig 3: Unlocking Fuel Hoses Using Special Tool 16 1 050

Courtesy of BMW OF NORTH AMERICA, INC.

Version, fuel hoses with integrated unlocking facility:

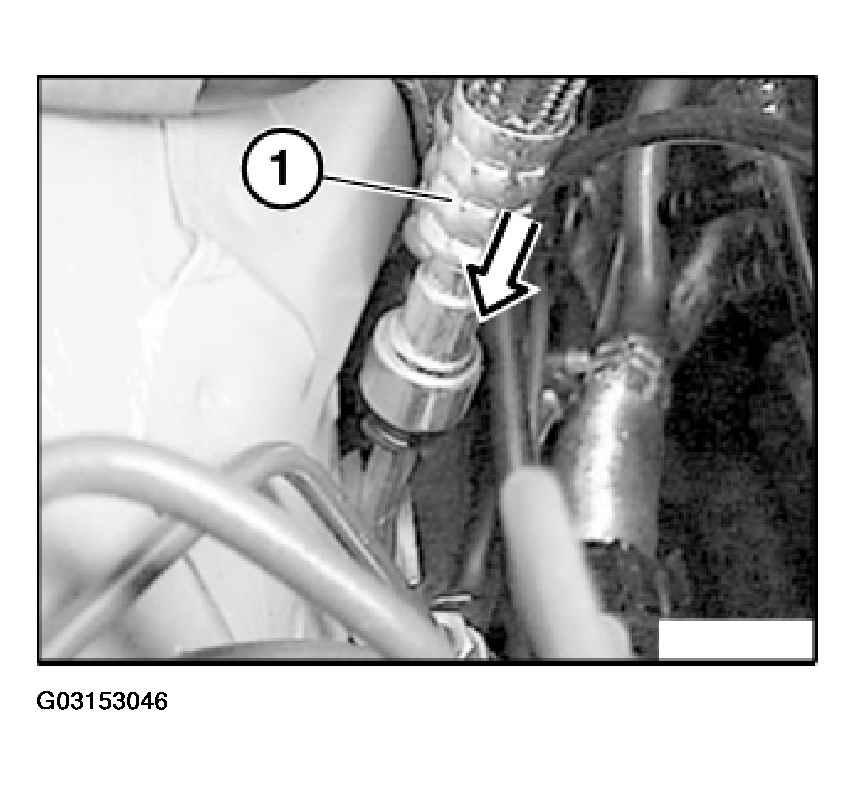

Press fuel hose (1) downwards and keep pressed.

Fig 4: Pressing Fuel Hose Downwards

Courtesy of BMW OF NORTH AMERICA, INC.

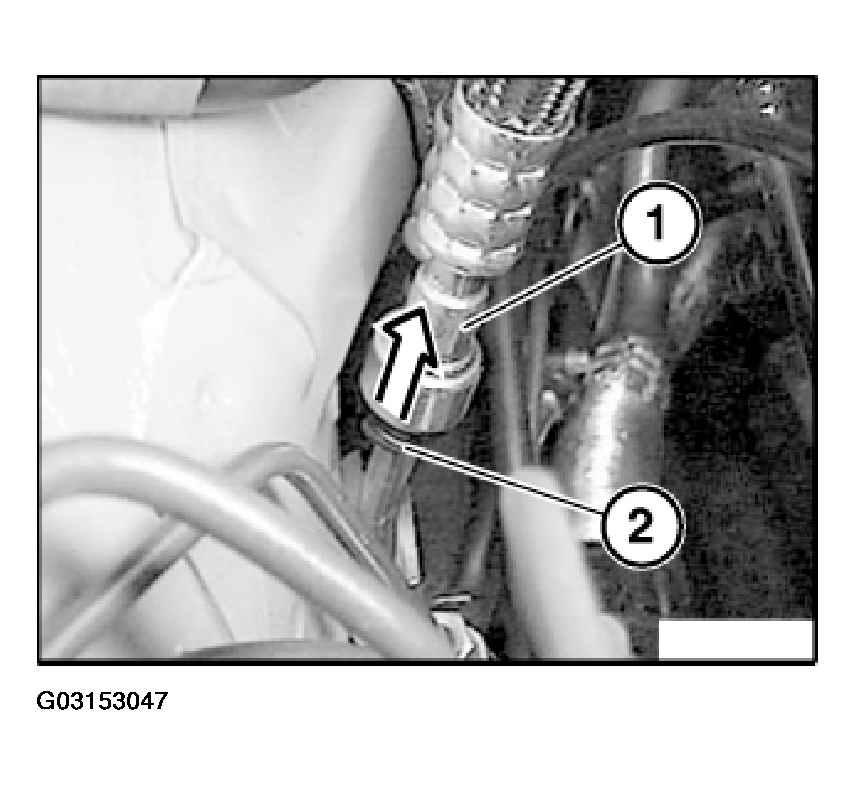

Press unlocking ring (2) upwards, keep pressed and detach fuel hose (1).

Installation

Check O-ring in fuel hose and sealing surfaces on fuel lines for damage; replace components if necessary.
Coat O-ring for assembly with anti-friction agent.

Fig 5: Pressing Unlocking Ring Upwards For Disconnecting Fuel Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Fuel hoses and hose clamps must be replaced each time they are removed!

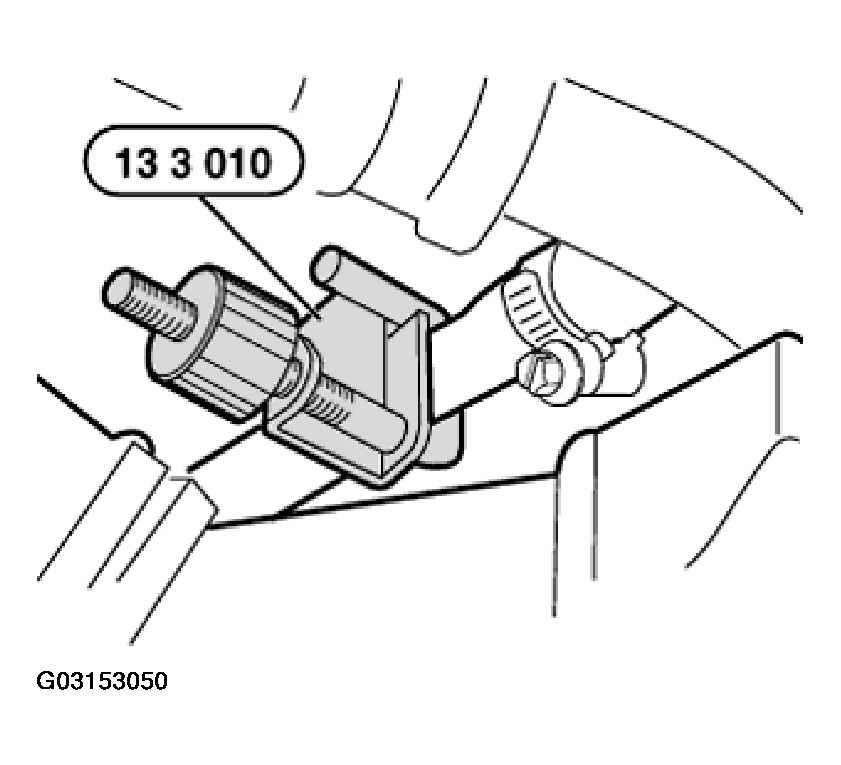

Fig 6: Sealing Hoses Using Special Tool 13 3 010

Courtesy of BMW OF NORTH AMERICA, INC.

Fuel hoses with quick-release couplings:

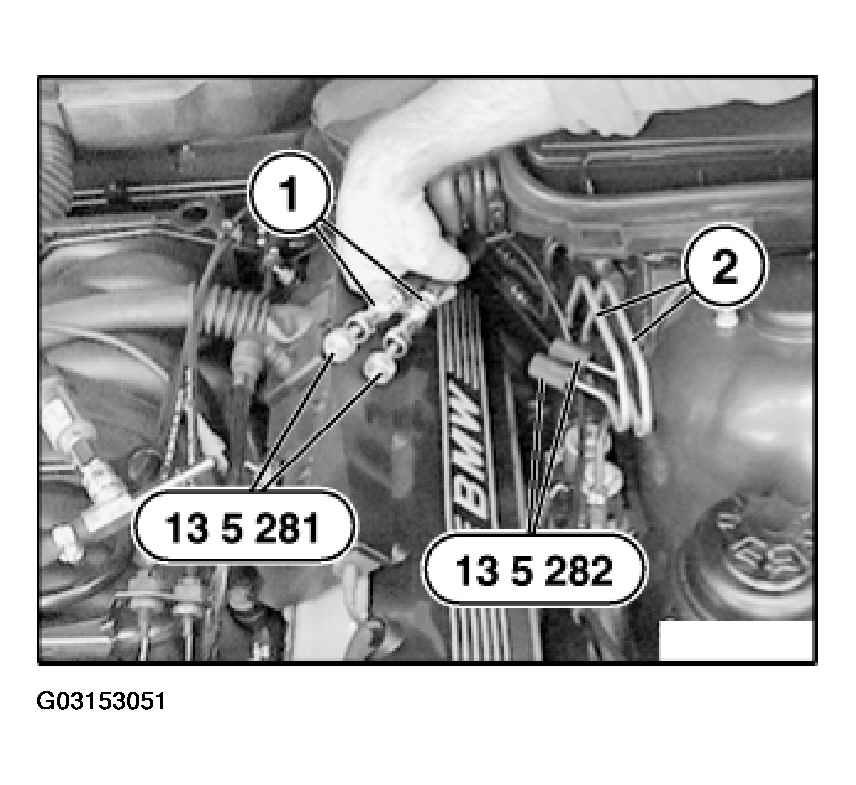

Seal fuel hoses (1) with special tool 13 5 281.

Seal fuel lines (2) with special tool 13 5 282.

Installation

Check O-ring in fuel hose and sealing surfaces on fuel lines for damage; replace components if necessary.
Coat O-ring for assembly with anti-friction agent.

Fig 7: Sealing Fuel Hoses And Lines Using Special Tool 13 5 281 And 13 5 282

Courtesy of BMW OF NORTH AMERICA, INC.
