17 11 000 Removing and installing radiator (M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

Drain coolant,

refer to 17 00 005 DRAINING AND TOPPING UP COOLANT .

Remove fan cowl,

refer to 17 11 031 REPLACING FAN COWL (M52, M62) .

NOTE: When removing the fan cowl, note the engine variant.

Open drain plug.

Drain off and catch coolant.

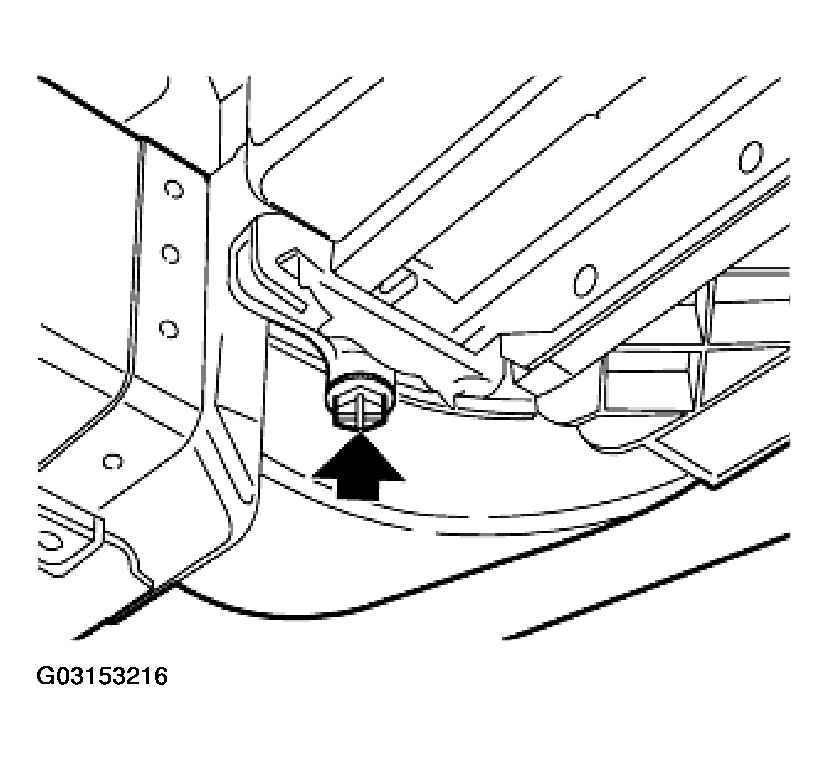

Fig 1: Opening Drain Plug

G03153216

Courtesy of BMW OF NORTH AMERICA, INC.

Recycling

Dispose of drained coolant.

Observe country-specific waste-disposal regulations.

If necessary, disconnect plug connection at level sensor.

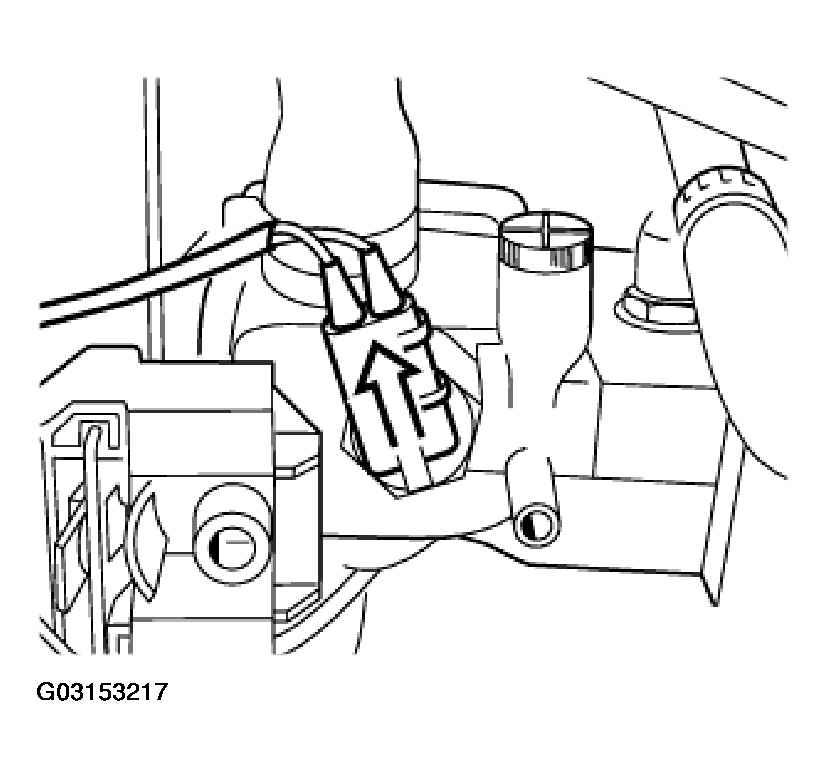

Fig 2: Disconnecting Plug Connection At Level Sensor

G03153217

Courtesy of BMW OF NORTH AMERICA, INC.

Air conditioning

Disconnect plug connection on temperature switch.

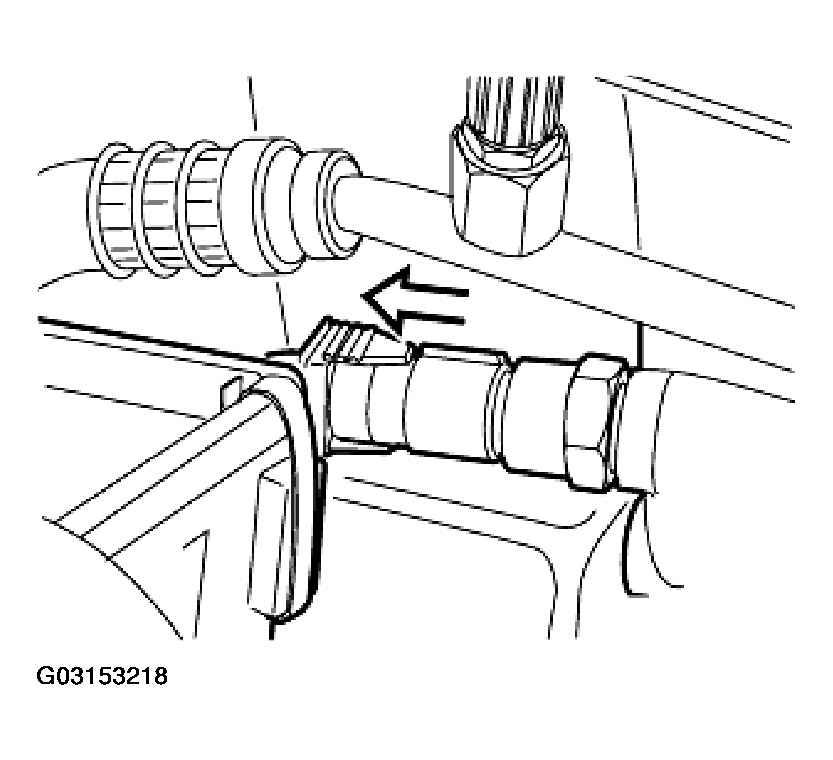

Fig 3: Disconnecting Plug Connection On Temperature Switch

G03153218

Courtesy of BMW OF NORTH AMERICA, INC.

Remove upper coolant hose.

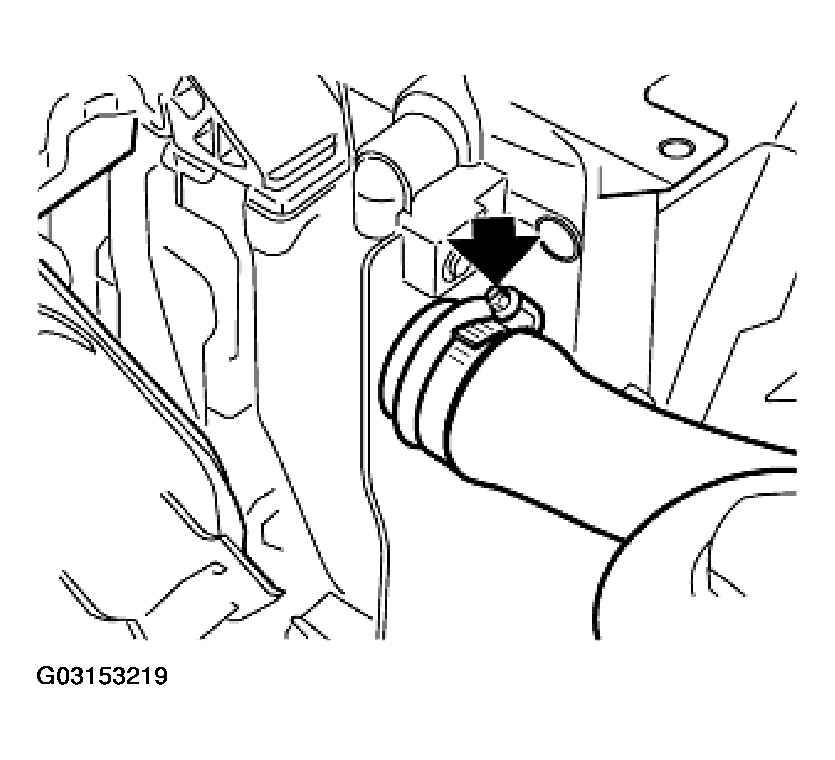

Fig 4: Removing Upper Coolant Hose

G03153219

Courtesy of BMW OF NORTH AMERICA, INC.

Coolant hoses with quick-release couplings

Lift out spring (1).

Disconnect water hose (2).

Release left and right screws (3) on radiator.

Remove both brackets (4).

Installation

Follow instructions for working on cooling system, refer to 17 00... INSTRUCTIONS FOR WORKING ON COOLING SYSTEM

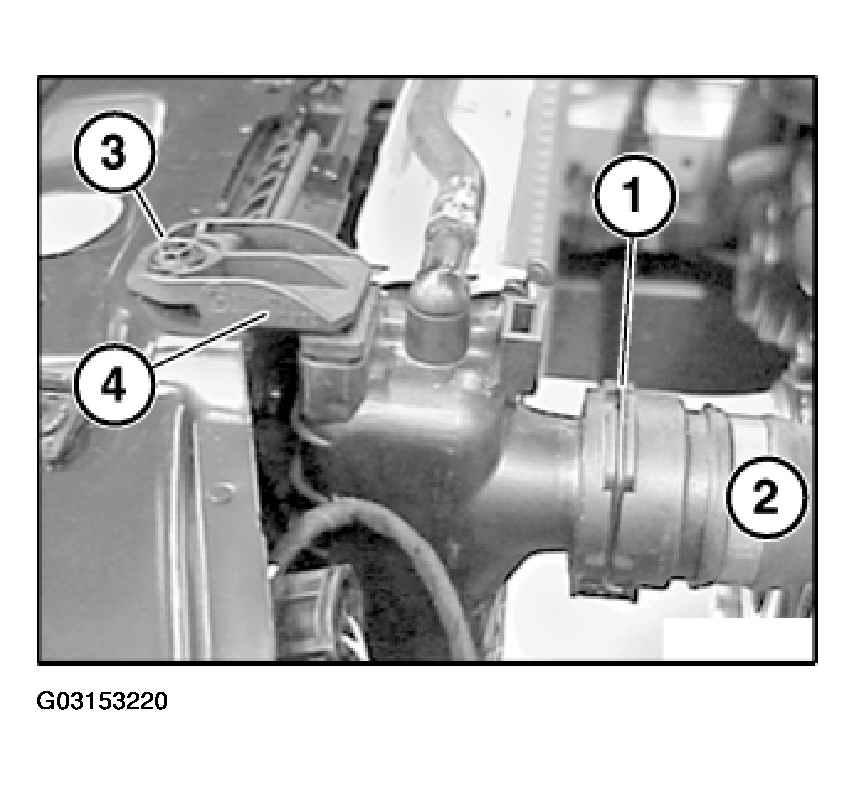

Fig 5: Disconnecting Water Hose

G03153220

Courtesy of BMW OF NORTH AMERICA, INC.

Remove lower coolant hose.

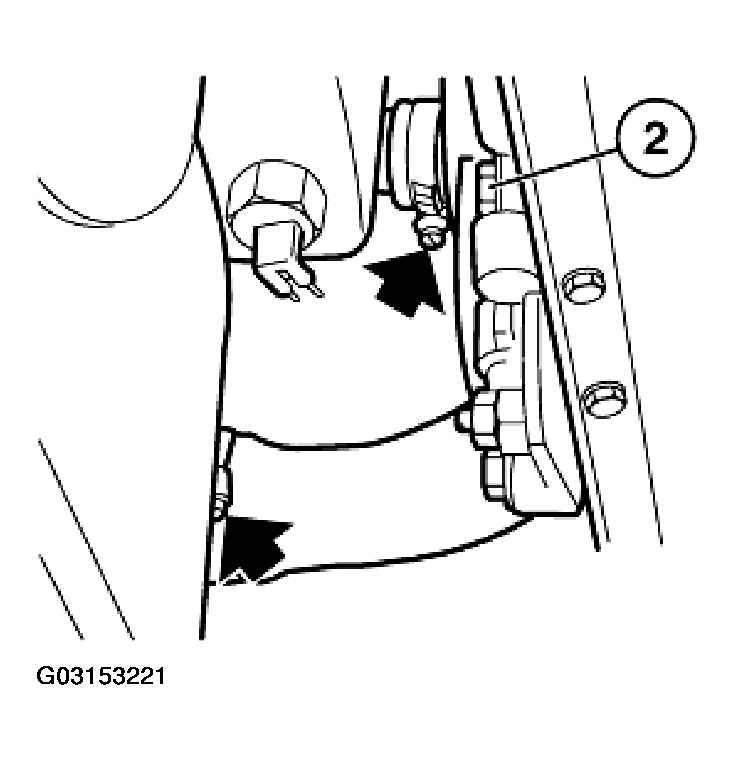

Fig 6: Removing Lower Coolant Hose

G03153221

Courtesy of BMW OF NORTH AMERICA, INC.

Coolant hoses with quick-release couplings

Remove connector (1).

Lift out spring (2).

Disconnect water hose (3).

Installation

Follow instructions for working on cooling system, refer to 17 00... INSTRUCTIONS FOR WORKING ON COOLING SYSTEM

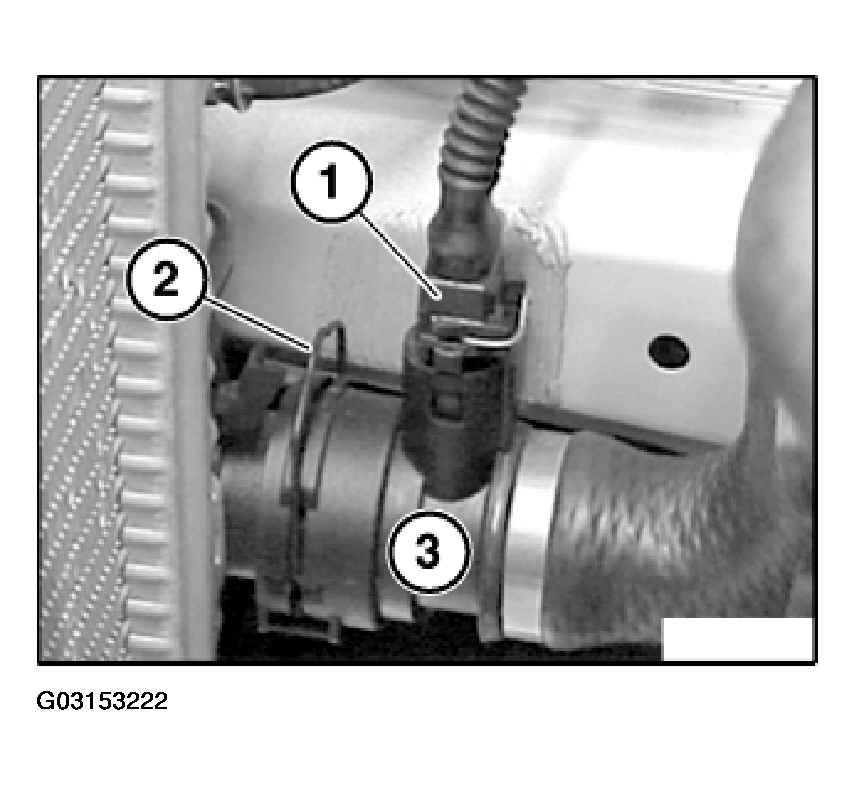

Fig 7: Removing Connector And Lift Out Spring

G03153222

Courtesy of BMW OF NORTH AMERICA, INC.

Lift radiator upwards to remove.

Installation

Place radiator on supports.

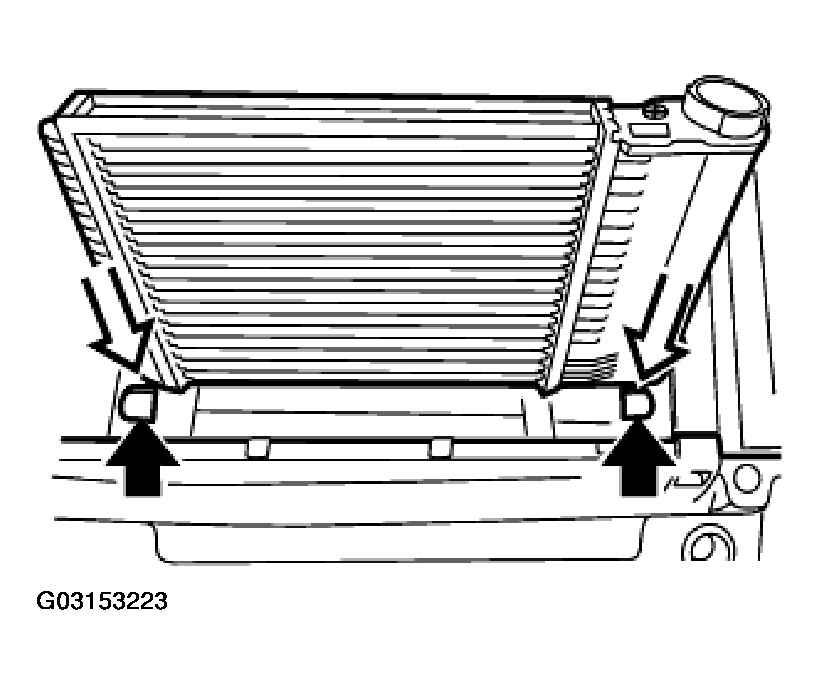

Fig 8: Identifying Radiator On Supports

G03153223

Courtesy of BMW OF NORTH AMERICA, INC.

Coolant hoses with quick-release couplings

Lift radiator (1) up and out.

Installation

Place radiator on supports.

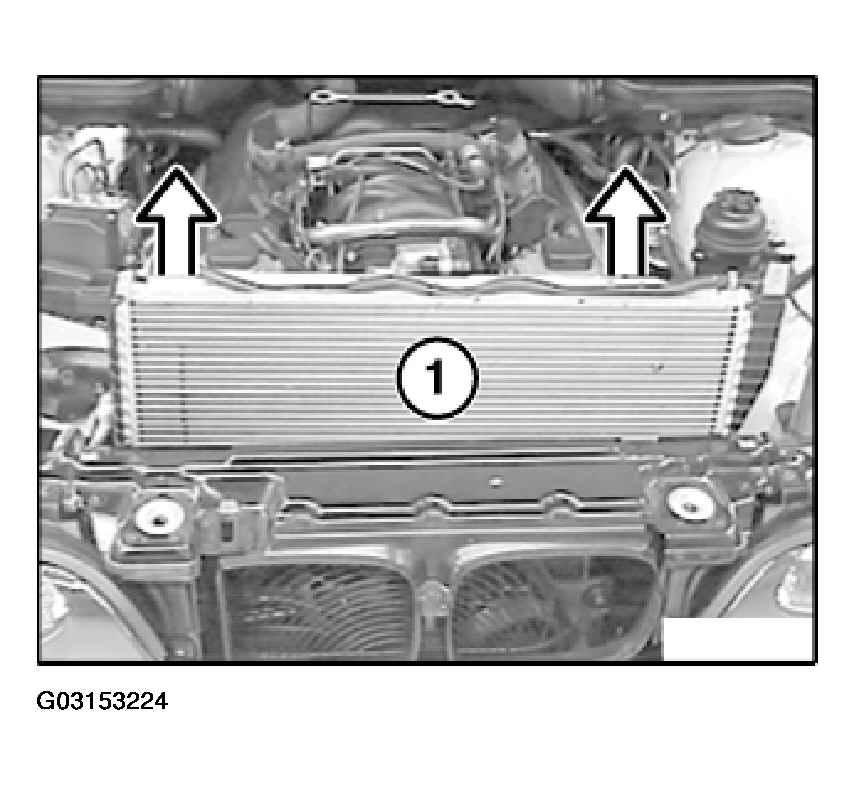

Fig 9: Lifting Radiator

G03153224

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Note rubber mounts on left and right sides.

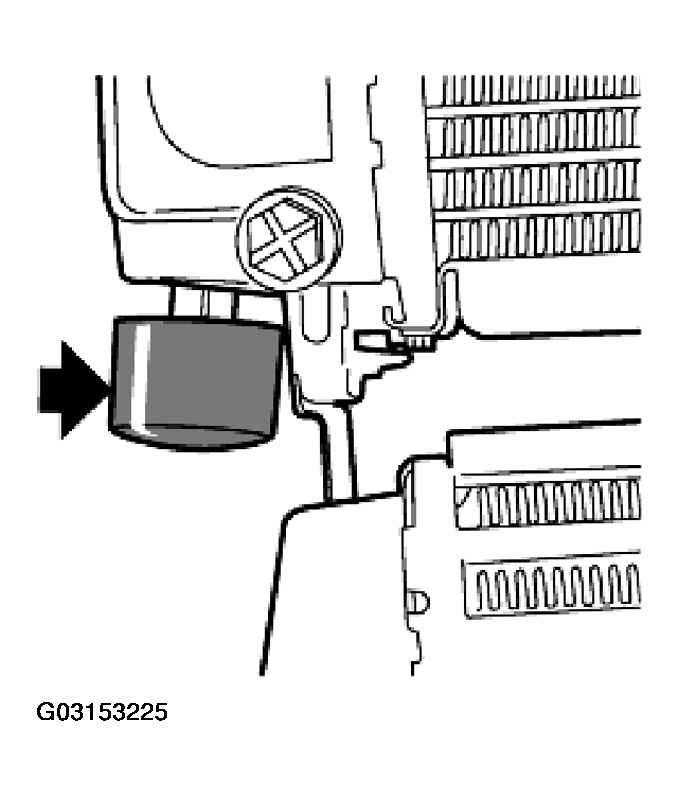

Fig 10: Identifying Rubber

G03153225

Courtesy of BMW OF NORTH AMERICA, INC.

Top up coolant,

refer to 17 00 005 DRAINING AND TOPPING UP COOLANT .

Vent cooling system and check for leaks,

refer to 17 00 039 BLEEDING COOLING SYSTEM AND CHECKING FOR WATER LEAKS .
