13 54 060 Removing and installing or replacing throttle body (ASC+T) (M60, M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Interrogate fault memory of the ASC+T control unit.

Switch off ignition.

Remove hose (1).

Unfasten hose clip (2).

Remove gaiter.

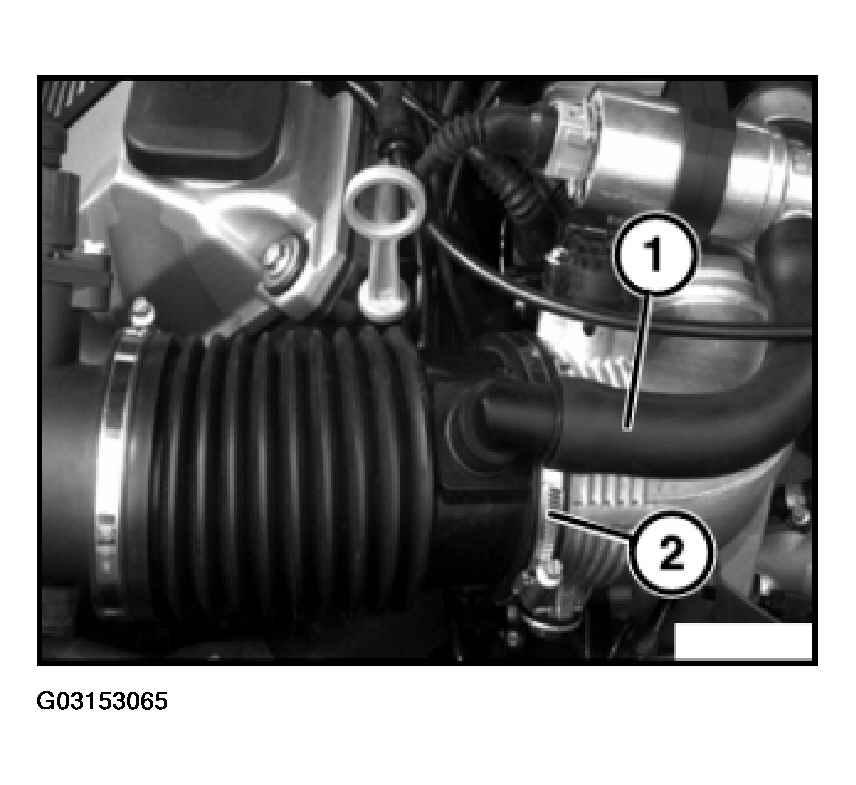

Fig 1: Removing Gaiter

G03153065

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector.

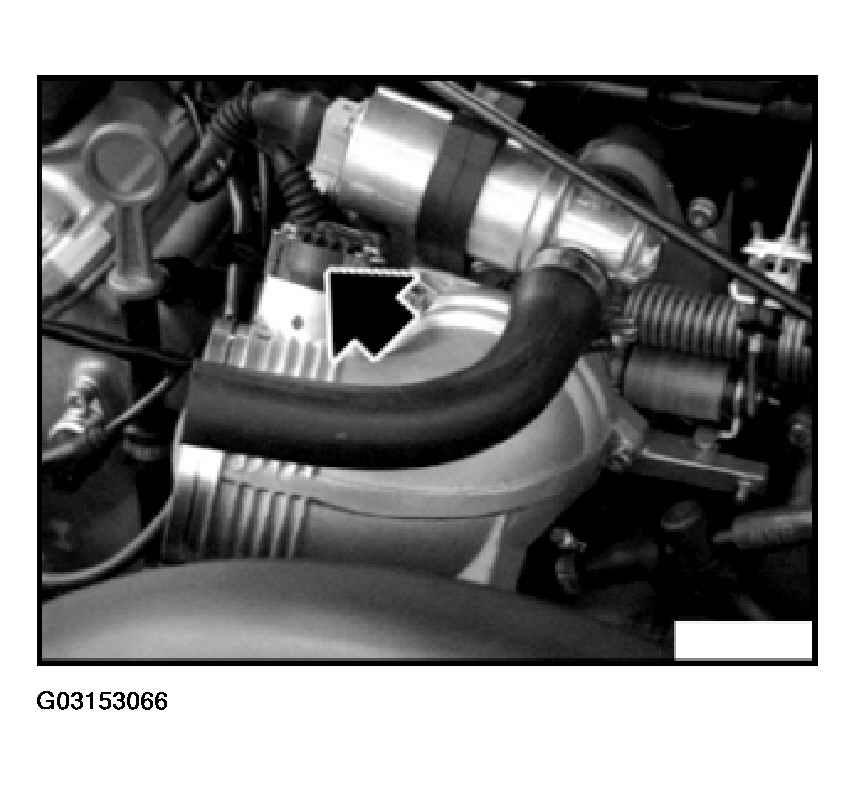

Fig 2: Disconnecting Connector

G03153066

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect cable.

Installation

Bowden cable must be adjusted to zero backlash.

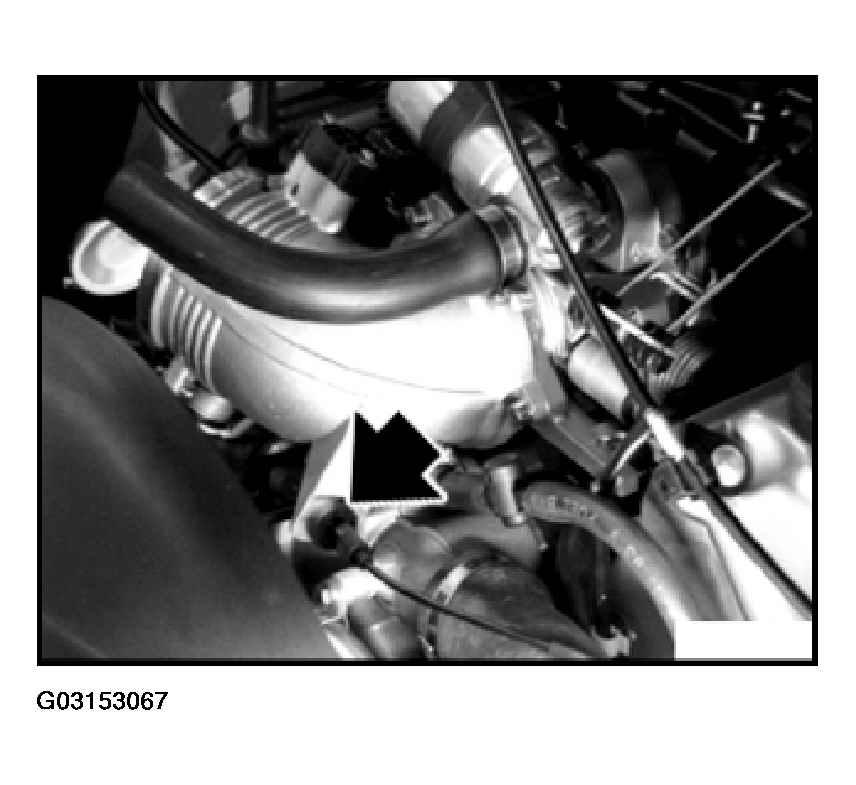

Fig 3: Disconnecting Cable

G03153067

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) to (3).

Remove throttle body.

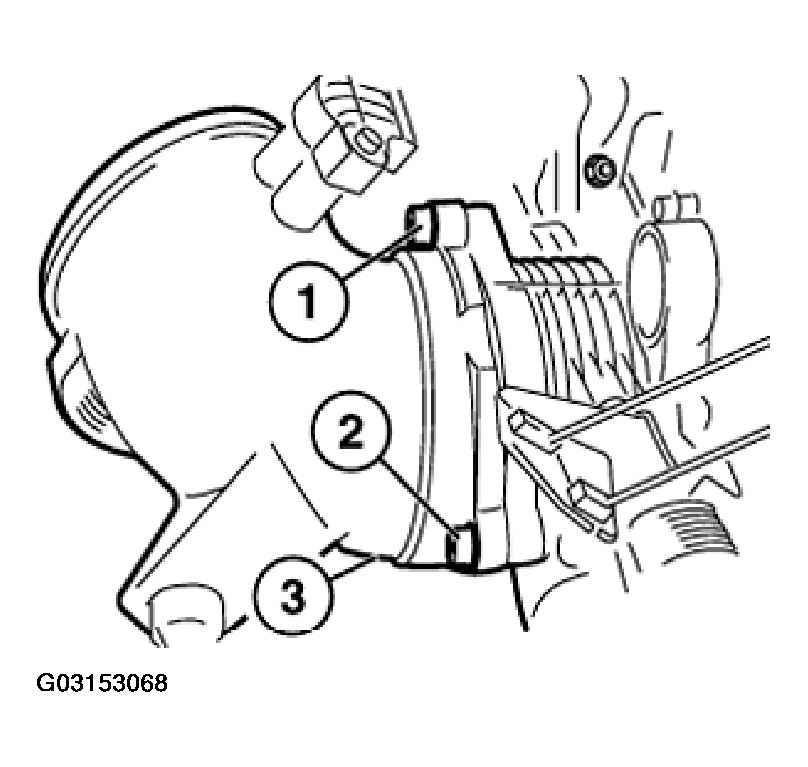

Fig 4: Identifying Throttle Body Unfasten Screws

G03153068

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Replace gasket (1).
Interrogate fault memory of ASC+T control unit, check fault messages stored in memory, rectify faults and clear the fault memory.

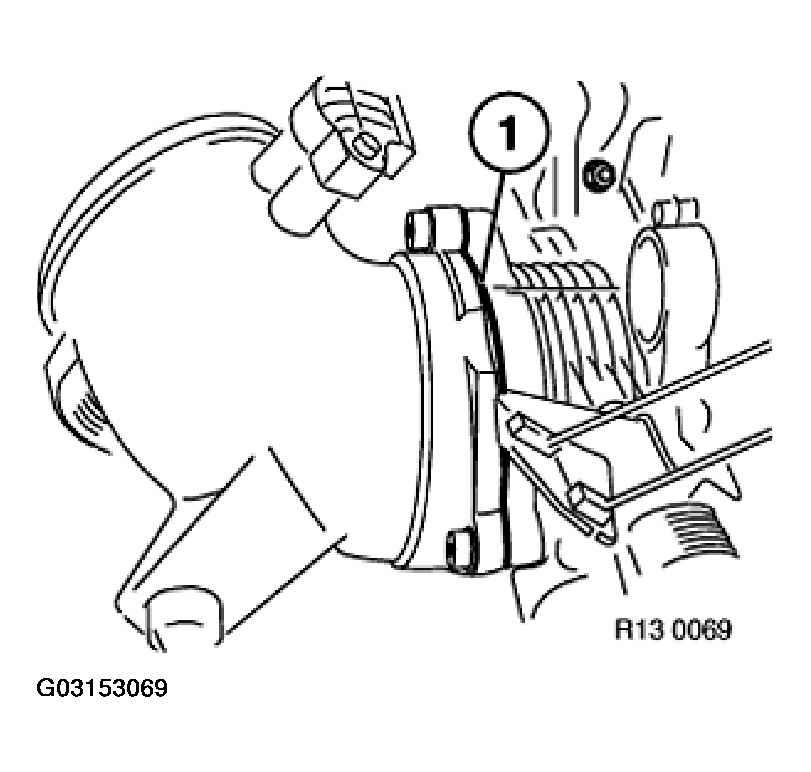

Fig 5: Locating Throttle Body Gasket

G03153069

Courtesy of BMW OF NORTH AMERICA, INC.
