51 16 200 Removing and installing oddments tray

Removing and installing finisher for preselector lever, refer to 51 16 210 REMOVING AND INSTALLING / REPLACING FINISHER FOR PRESELECTOR LEVER

Removing and installing heater controls, refer to 64 11 749 REMOVING AND INSTALLING / REPLACING HEATER CONTROLS (AUTOMATIC AIR CONDITIONER) .

Removing and installing switch for hazard warning lights, refer to 61 31 080 REMOVING AND INSTALLING / REPLACING SWITCH FROM HAZARD WARNING LIGHTS .

Removing and installing switch for central locking, refer to 61 31 082 REMOVING AND INSTALLING / REPLACING SWITCH FOR CENTRAL LOCKING SYSTEM .

Removing and installing switch for automatic stability control, refer to 61 31 212 REMOVING AND INSTALLING / REPLACING SWITCH FOR AUTOMATIC STABILITY CONTROL .

If necessary, remove and install both switches for seat heating, refer to 61 31 090 REMOVING AND INSTALLING / REPLACING SWITCH FOR LEFT OR RIGHT SEAT HEATING .

If necessary, remove and install switch for rear window roller blind, refer to 61 31 216 REMOVING AND INSTALLING / REPLACING SWITCH FOR REAR WINDOW ROLLER BLIND .

If necessary, remove and install switch for electronic damper control, refer to 61 31 214 REMOVING AND INSTALLING / REPLACING SWITCH FOR ELECTRONIC DAMPER CONTROL .

Removing and installing fresh air grille in luggage compartment, refer to 64 22 190 REMOVING AND INSTALLING / REPLACING FRESH-AIR GRILL IN REAR OF CAR .

Unfasten screws on left/right sides.

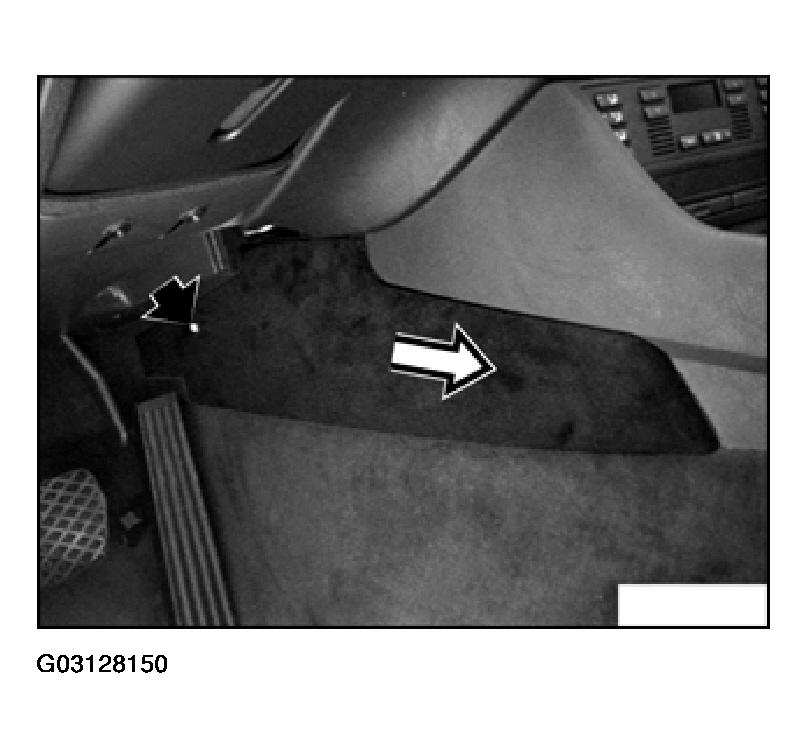

Pull left/right side carpet backwards out of clips.

Fig 1: Pulling Left/Right Side Carpet Backwards Out Of Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten left/right screws.

Fig 2: Unfastening Left/Right Screws

Courtesy of BMW OF NORTH AMERICA, INC.

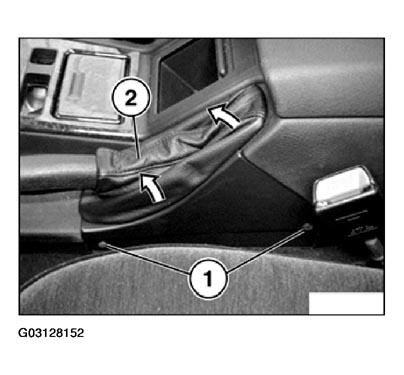

Lift off caps (1) and unfasten screws. Unclip rubber gaiter (2).

Fig 3: Unclipping Rubber Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

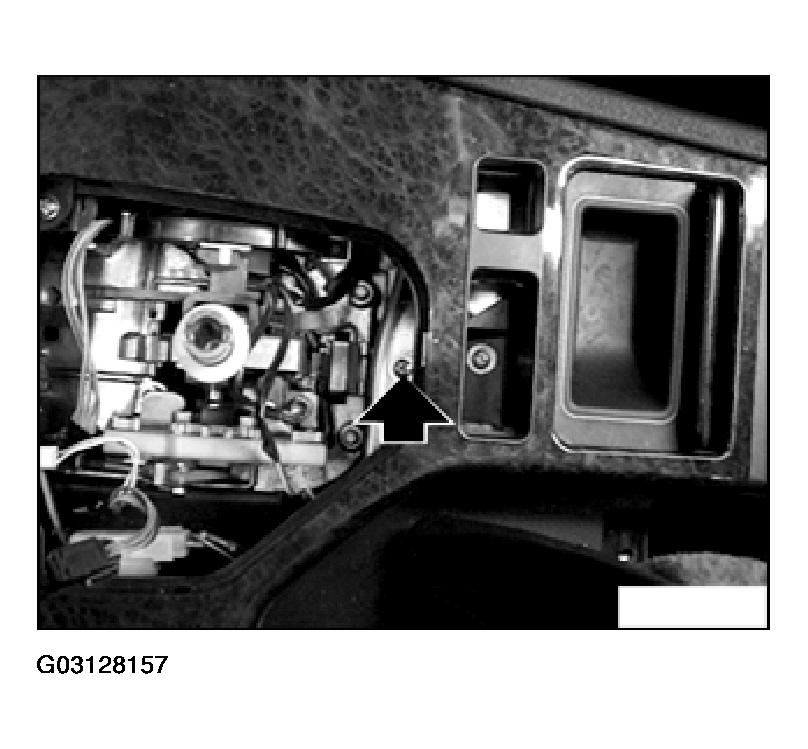

Unfasten screw and unclip finisher.

Fig 4: Unfastening Screw & Unclipping Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

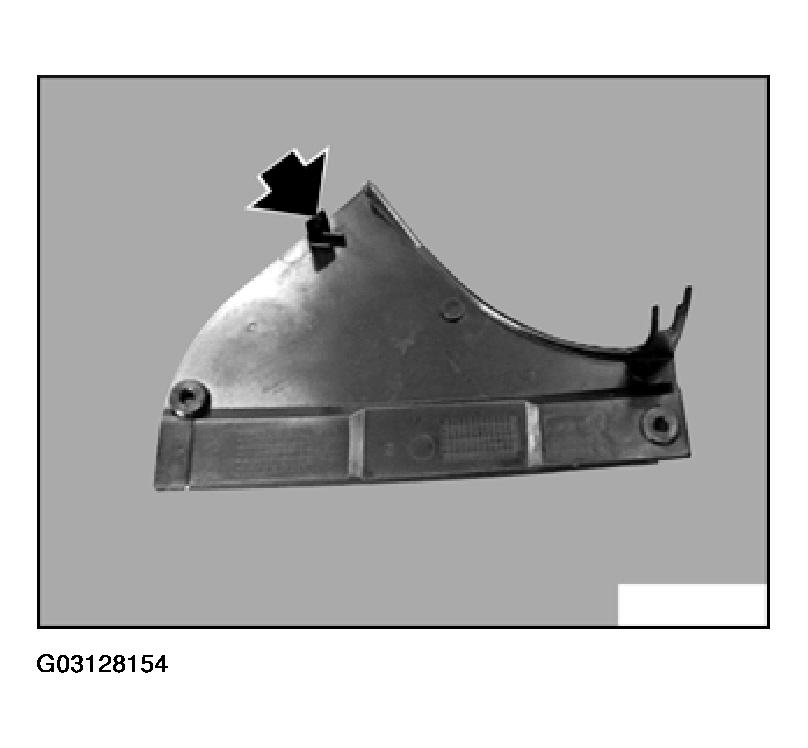

Tab for clip mounting must not be damaged.

Fig 5: Checking Tab For Clip Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

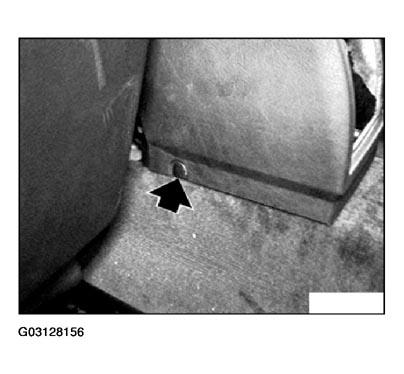

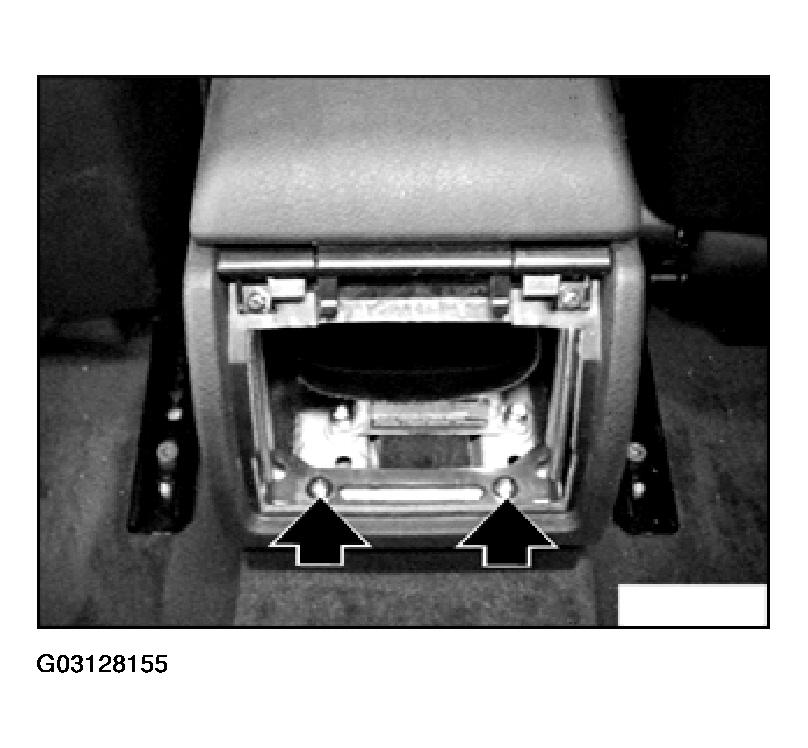

Unfasten screws.

Fig 6: Unfastening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

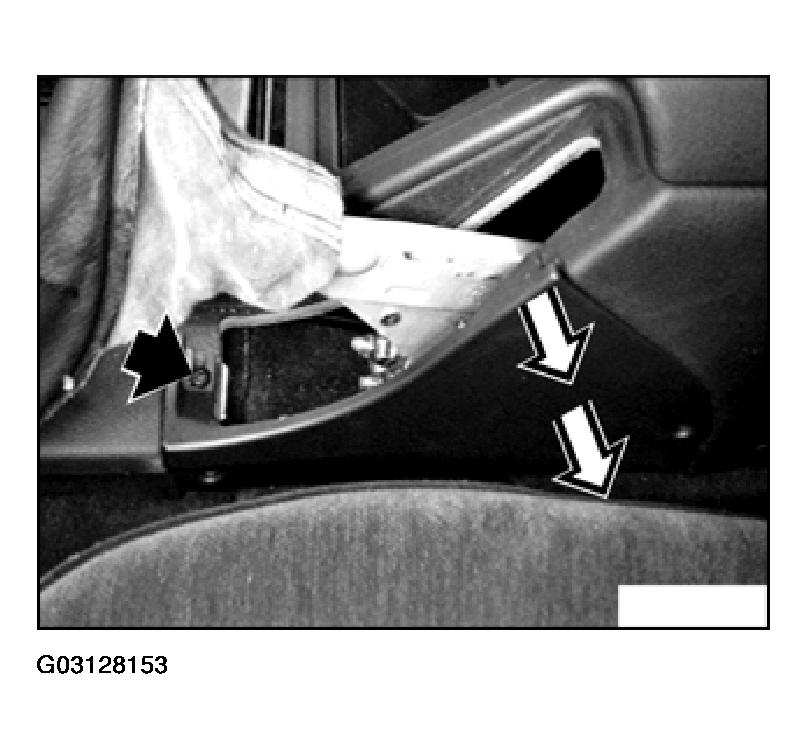

Lift off left/right and unfasten screws.

Fig 7: Lifting Off Left/Right & Unfastening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

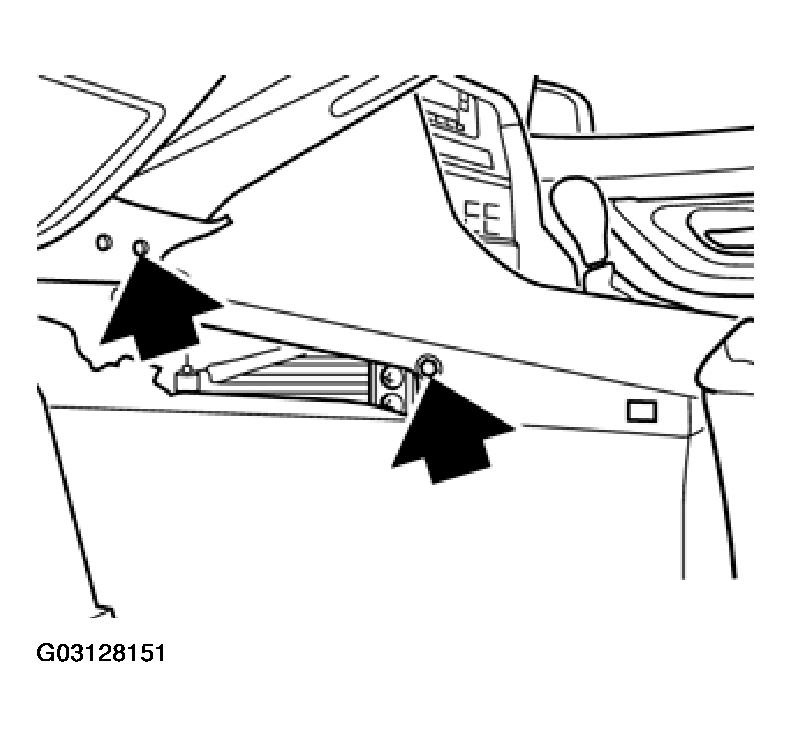

Unscrew screw.

Fig 8: Unscrewing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

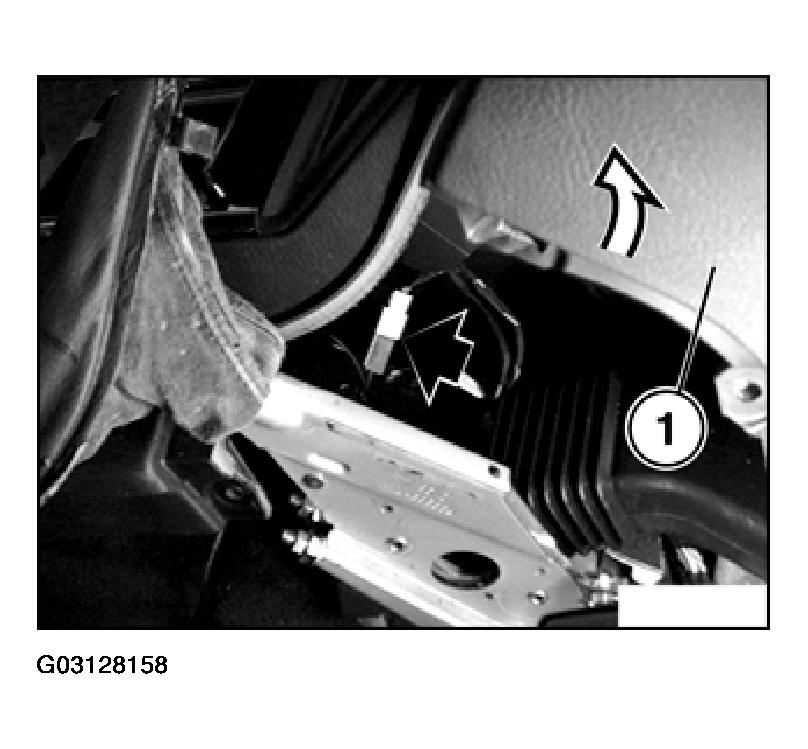

Raise back of oddments tray (1) slightly and cut through plug connection (cigarette lighter).

Fig 9: Raising Back Of Oddments Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust both front seats, back-rests and selector lever as far backwards and downwards as possible.

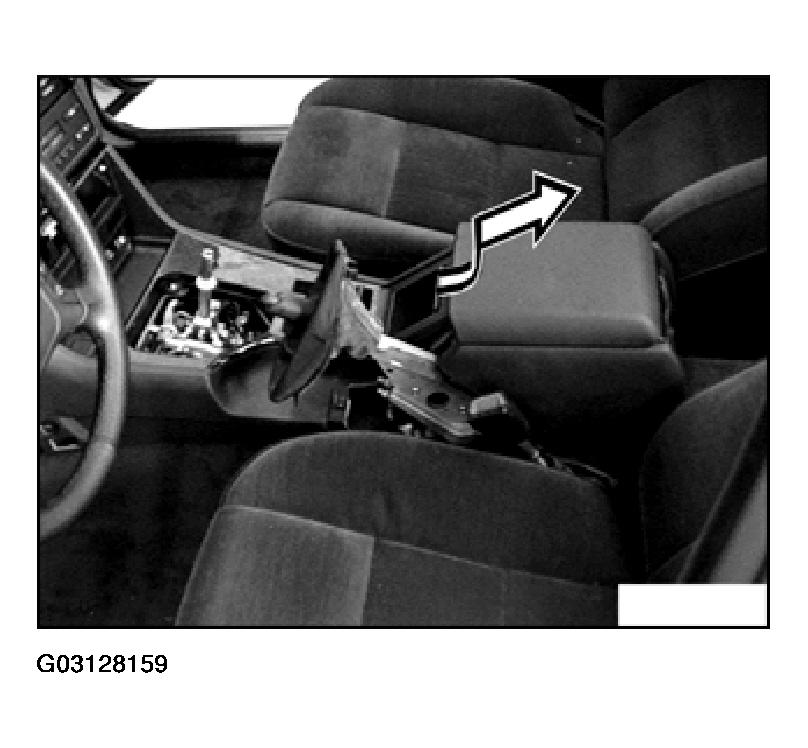

Lift up rear oddments tray and pull out on passenger side.

Fig 10: Lifting Up Rear Oddments Tray & Pulling Out On Passenger Side
