64 11 749 Removing and installing / replacing heater controls (automatic air conditioner)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove radio or on-board monitor,

refer to 65 11 030 REMOVING AND INSTALLING / REPLACING RADIO RECEIVER .

Press out controls through the radio aperture.

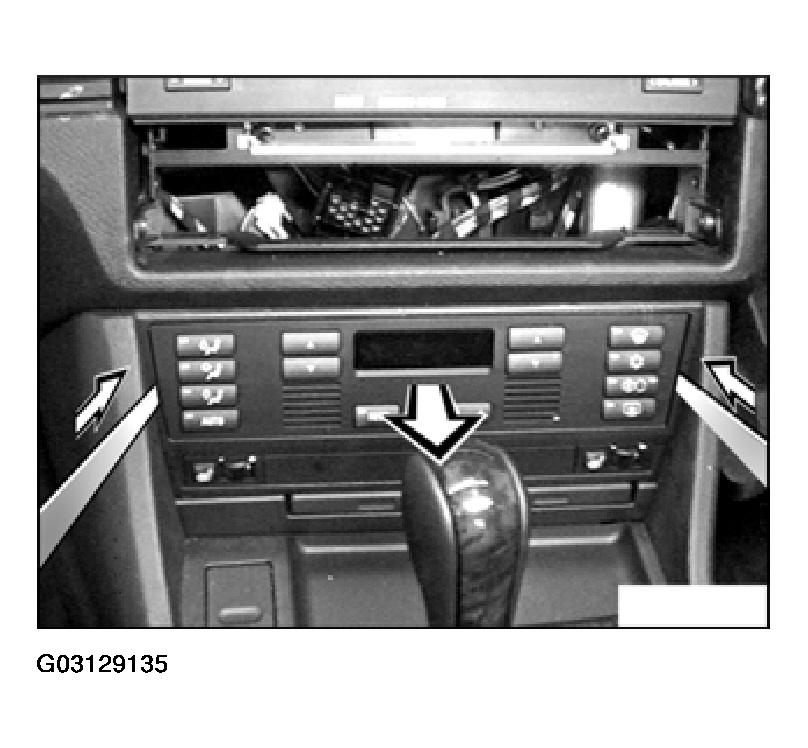

Fig 1: Removing Radio Or On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connectors.

Installation:

After replacing the heater controls, recoding is necessary.

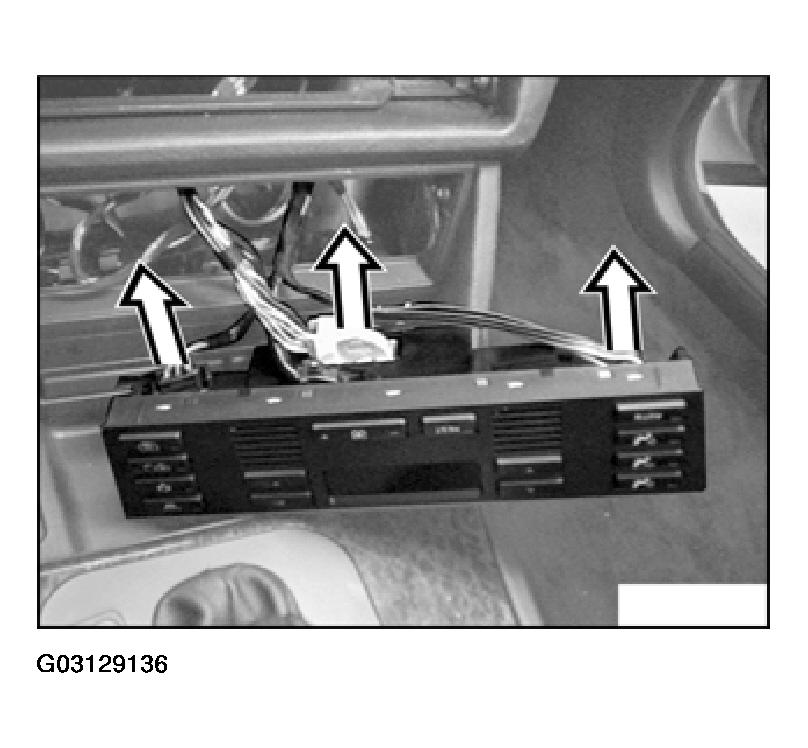

Fig 2: Disconnecting Connectors

Courtesy of BMW OF NORTH AMERICA, INC.
