61 31 080 Removing and installing / replacing switch from hazard warning lights

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Lever out panel and lift off.

Press down switch and remove from bottom of oddments tray.

Pull off connectors.

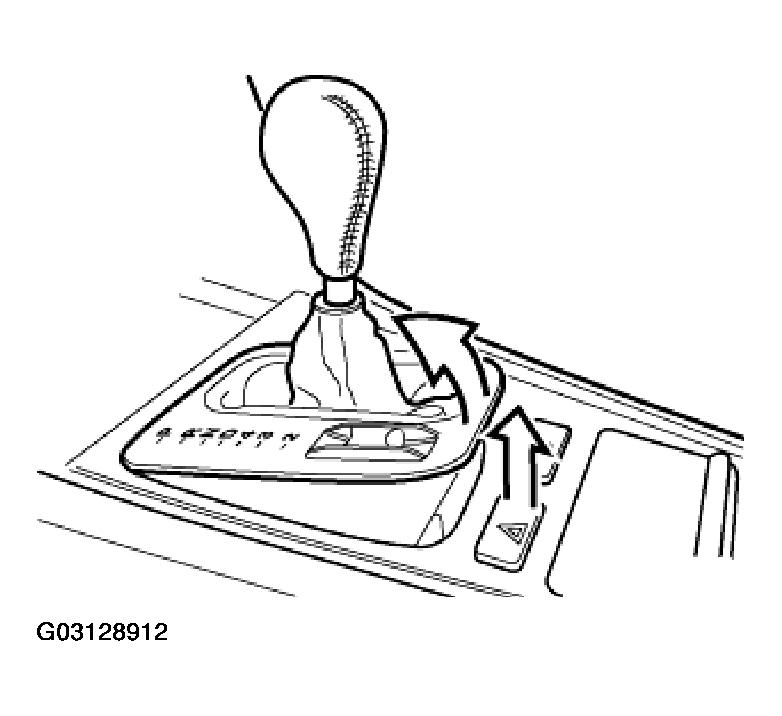

Fig 1: Pressing Down Switch
G03128912Courtesy of BMW OF NORTH AMERICA, INC.
