64 22 190 Removing and installing / replacing fresh-air grille in rear of car

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Depending on the equipment version, a can holder or a finisher strip may be installed. Both versions are removed in the same way.

Press fresh-air grill (1) somewhat upward and unclip can holder (2) from guide groove at top.

Guide in special tool 00 9 300 between center console and can holder and lift out can holder (2).

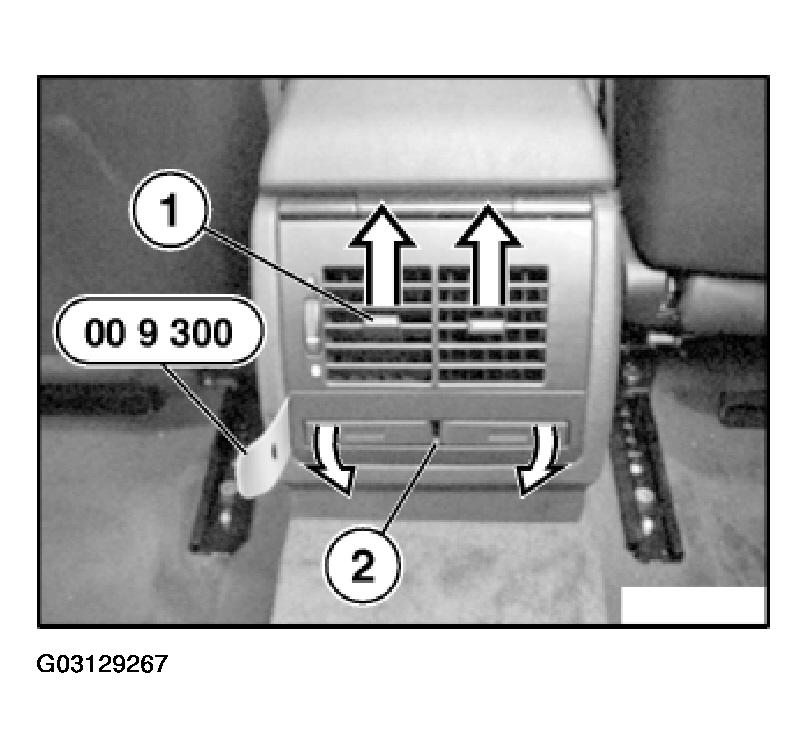

Fig 1: Removing Can Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Push down fresh-air grill (1) by dimension A (approx. 30 to 40 mm) and pull out of recesses of guide groove.

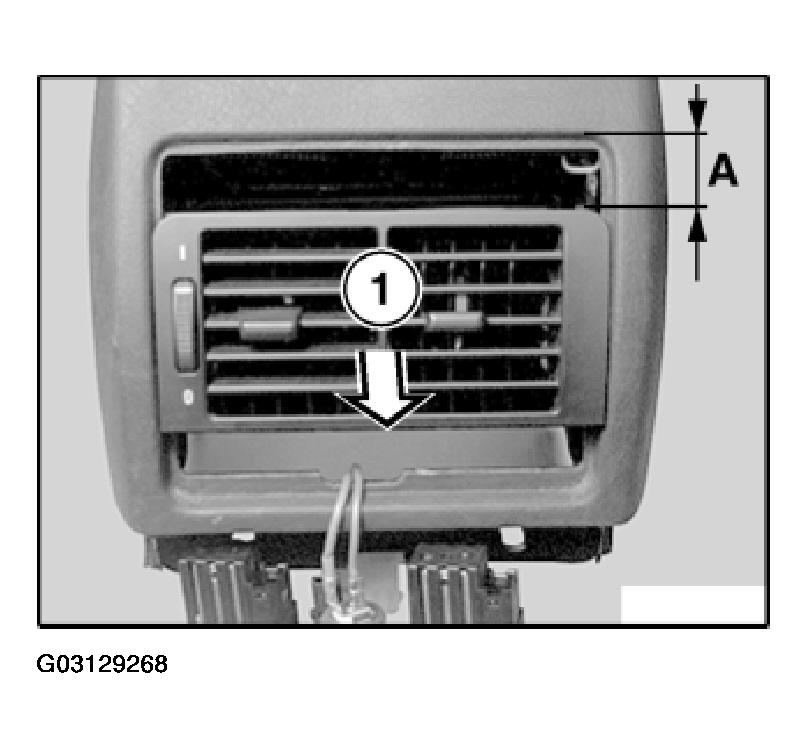

Fig 2: Pushing Fresh-Air Grill Down

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Thread fresh-air grill centered into recesses (1) of guide groove and press completely upward. Then install finisher or can holder.

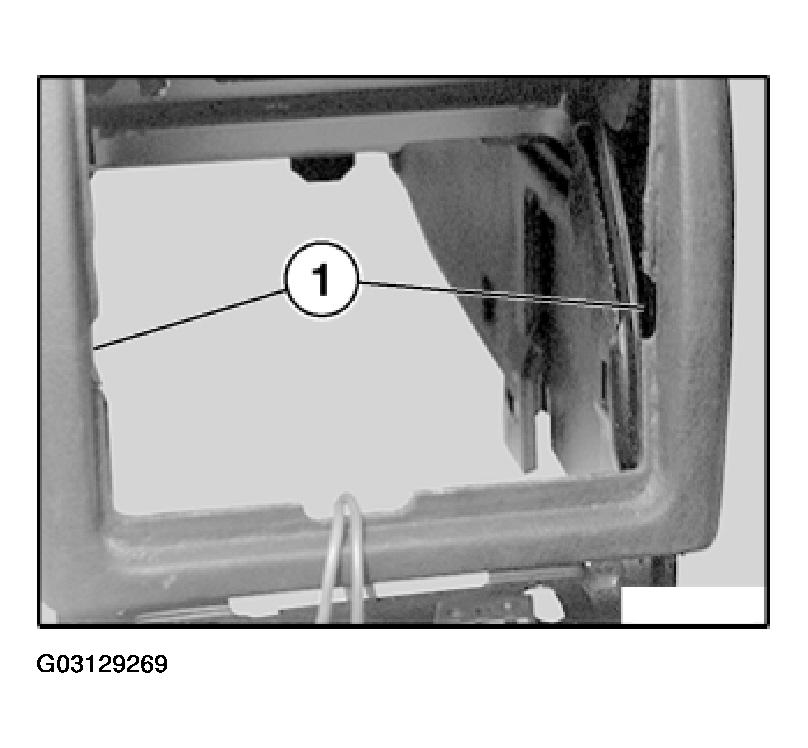

Fig 3: Locating Guide Groove Thread Recessing Point

Courtesy of BMW OF NORTH AMERICA, INC.
