51 16 210 Removing and installing / replacing finisher for preselector lever

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

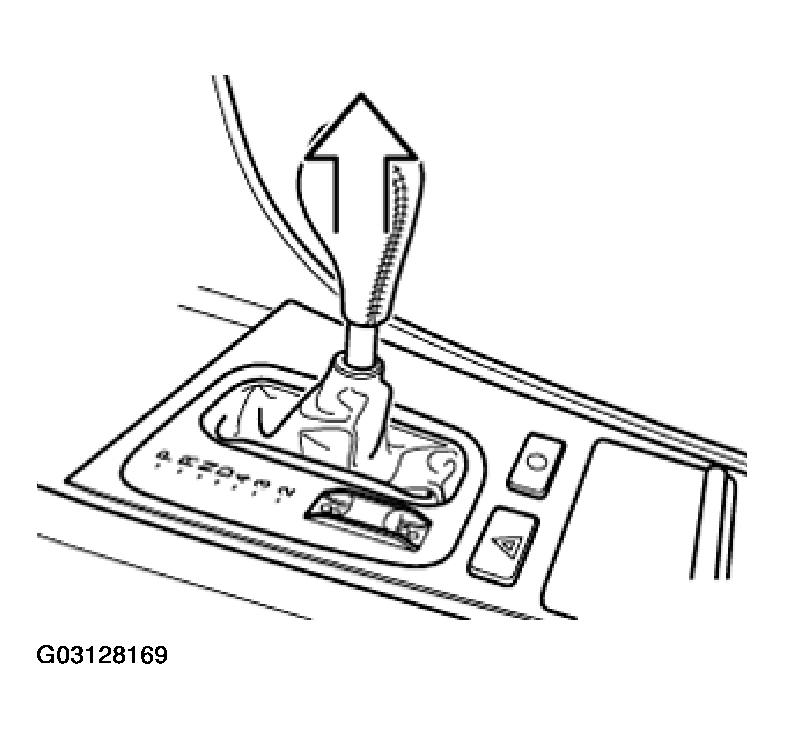

Pull handle off with one firm movement. Lift out cover plate.

Fig 1: Pulling Handle Off

Courtesy of BMW OF NORTH AMERICA, INC.

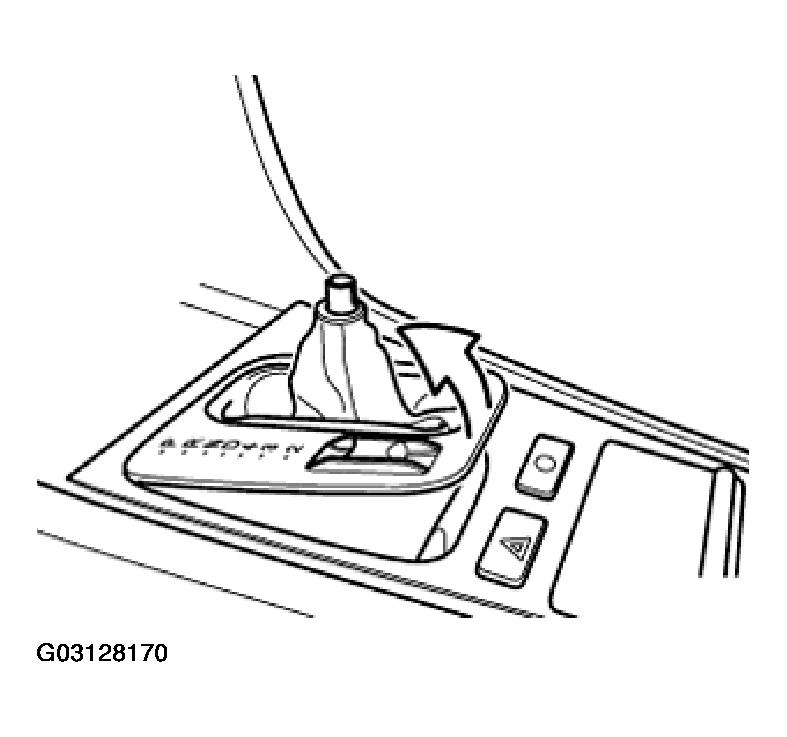

Lift out cover plate

Fig 2: Lifting Out Cover Plate

Courtesy of BMW OF NORTH AMERICA, INC.

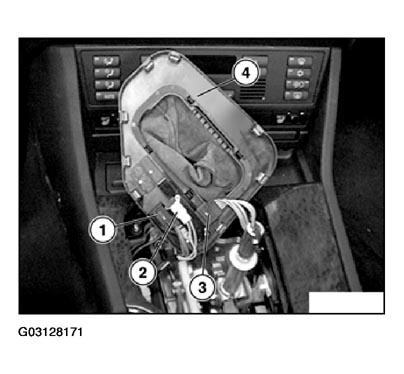

Pull out cable connector (1... 3) and remove finisher strip (4) for selector lever.

Fig 3: Removing Finisher Strip For Selector Lever

Courtesy of BMW OF NORTH AMERICA, INC.
