51 45 030 Removing and installing instrument panel trim

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect battery negative lead. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Remove both panels for front roof pillar. Refer to 51 43 201 REMOVING AND INSTALLING/REPLACING PANEL FOR ROOF PILLAR AT FRONT (A-PILLAR), LEFT OR RIGHT .

Remove light switch unit. Refer to 61 31 033 REMOVING AND INSTALLING LIGHT SWITCH UNIT .

Remove complete instrument carrier. Refer to 62 21 000 REMOVING AND INSTALLING COMPLETE INSTRUMENT CARRIER .

Remove fixture for steering column switch. Refer to 61 31 005 REMOVING AND INSTALLING/REPLACING FIXTURE FOR STEERING COLUMN STALK .

Remove center fresh air grill. Refer to 64 22 161 REMOVING AND INSTALLING/REPLACING FRESH-AIR GRILL CENTER .

Remove radio receiver. Refer to 65 11 030 REMOVING AND INSTALLING / REPLACING RADIO RECEIVER or 65 52 010 REMOVING AND INSTALLING ON-BOARD MONITOR .

Remove airbag module on passenger side. Refer to PASSENGER-SIDE AIR BAG MODULE for year model 2001, PASSENGER-SIDE AIR BAG MODULE for year model 2002, and PASSENGER-SIDE AIR BAG MODULE for year model 2003.

Remove center console. Refer to 51 16 200 REMOVING AND INSTALLING CENTER CONSOLE .

Remove lower left trim from instrument panel. Refer to 51 45 180 REMOVING AND INSTALLING TRIM FOR INSTRUMENT PANEL, BOTTOM LEFT

Remove right glovebox. Refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .

Remove all clipped finishers (decorative strips on panel for instrument panel). Refer to 51 16 221 REPLACING A CLIPPED FINISHER (DECORATIVE STRIP ON PANEL FOR INSTRUMENT PANEL, FRONT OR REAR DOOR) .

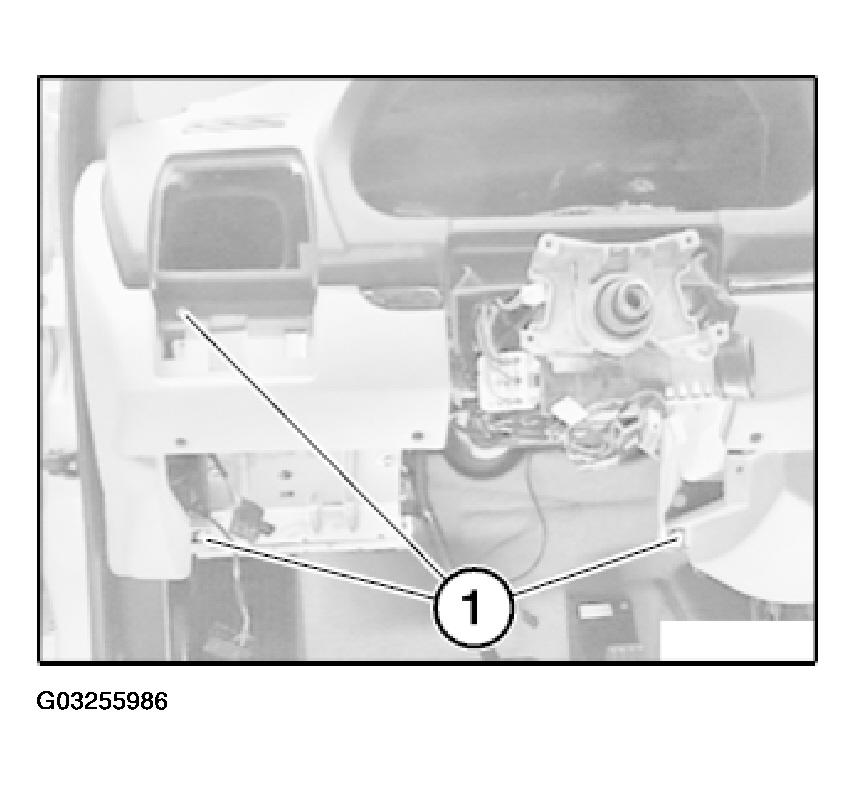

Release screws (1).

Disconnect plug connection for speaker.

Fig 1: Disconnecting Plug Connection For Speaker

Courtesy of BMW OF NORTH AMERICA, INC.

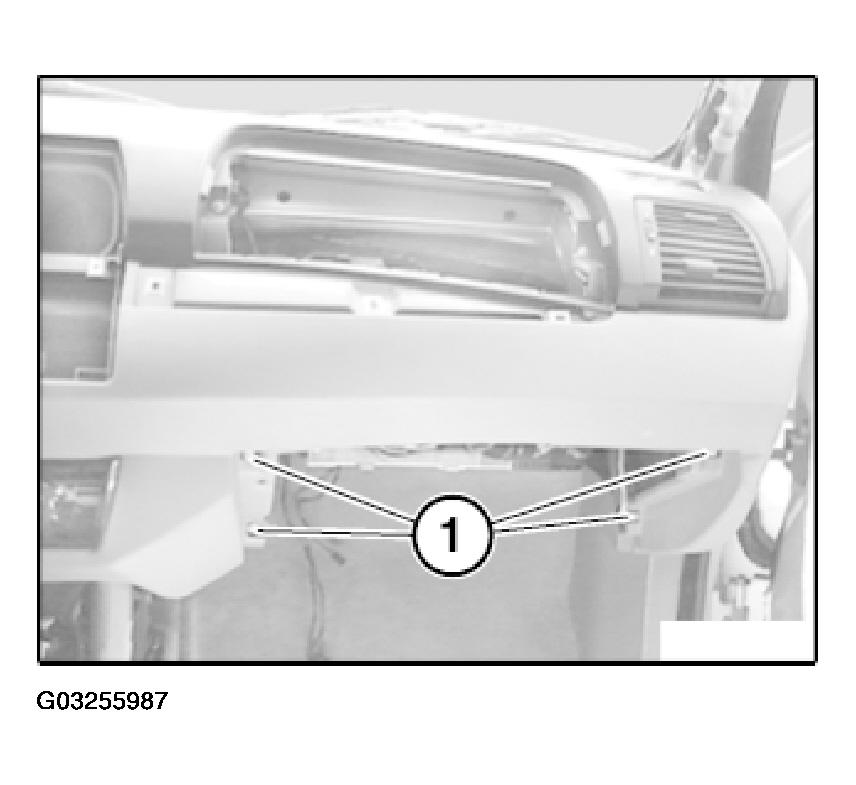

Release screws (1).

Disconnect plug connection for speaker.

Fig 2: Releasing Speaker Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Anti-drumming lining (1) must be correctly stuck on.

Foam strip (2) must be correctly stuck on.

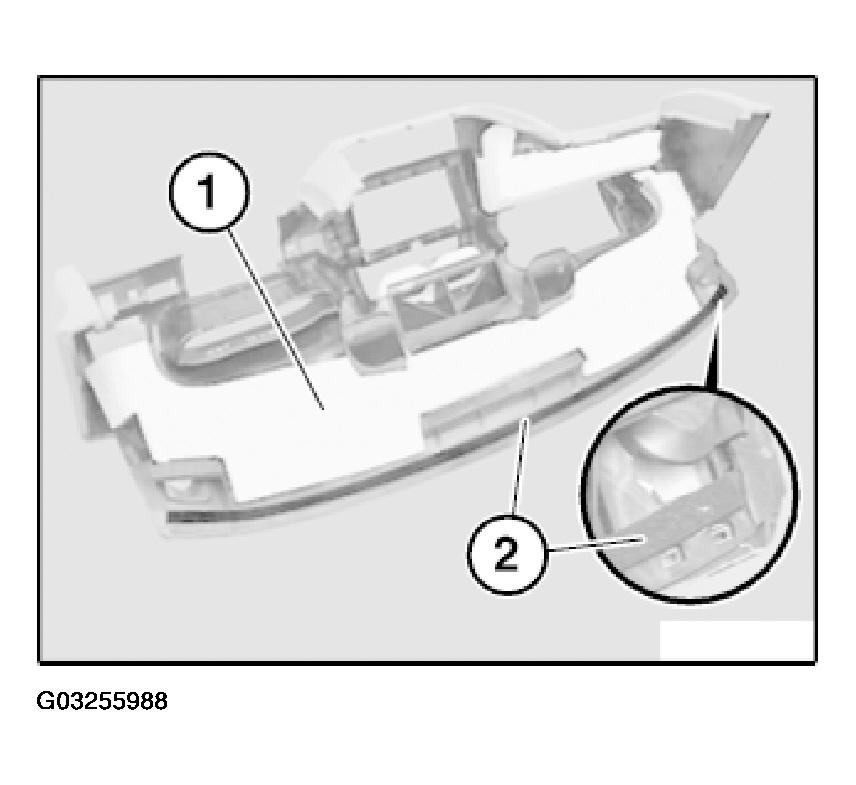

Fig 3: Identifying Anti-Drumming Lining And Foam Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Push fixtures (1) and (2) onto guide plates (3) and (4).

Fixture on instrument panel, outside.
Fixture on instrument panel, center.
Guide plate on body, outside.
Guide plate on body, center.

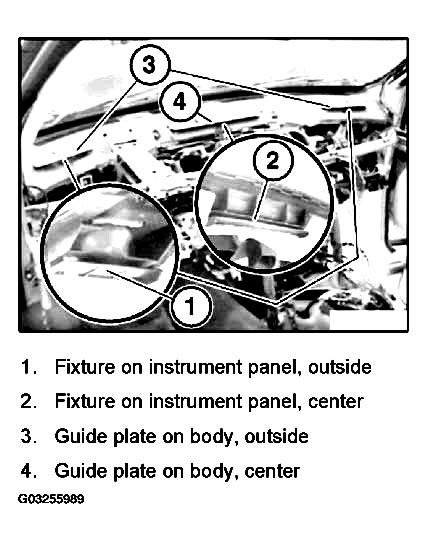

Fig 4: Locating Fixtures And Guide Plates

Courtesy of BMW OF NORTH AMERICA, INC.
