51 43 201 Removing and installing/replacing panel for roof pillar at front (A-pillar), left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow safety instructions for working on cars with airbag systems. Refer to AIR BAG SAFETY PRECAUTIONS .

IMPORTANT: Do not use sharp-edged tools to remove trim (risk of damage to head air bag).

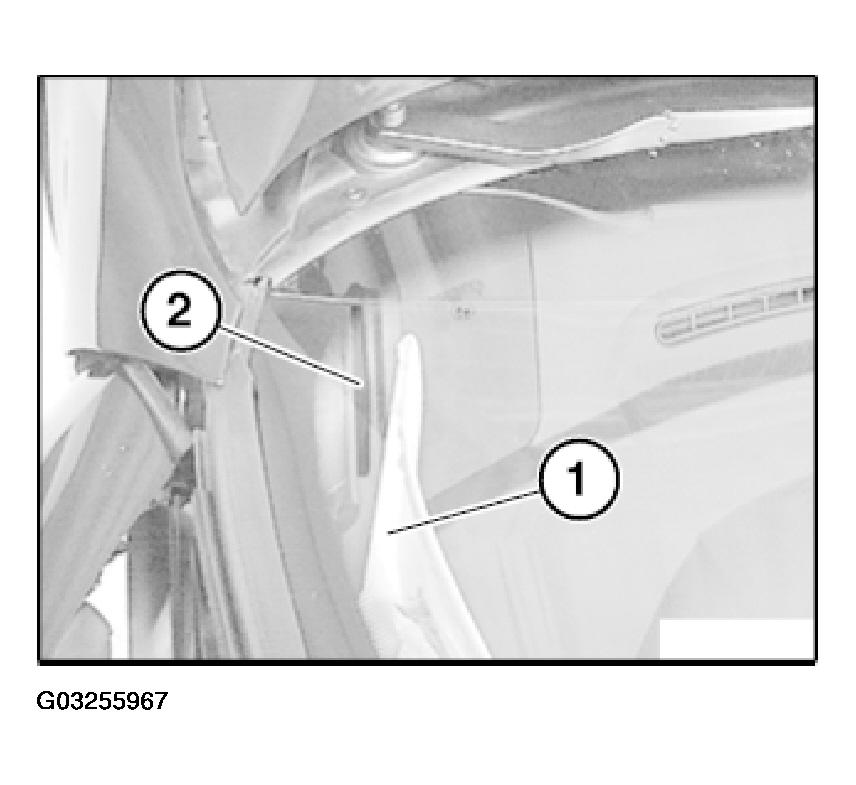

Detach mucket on outside in area of panel (1).

Fig 1: Detaching Mucket

Courtesy of BMW OF NORTH AMERICA, INC.

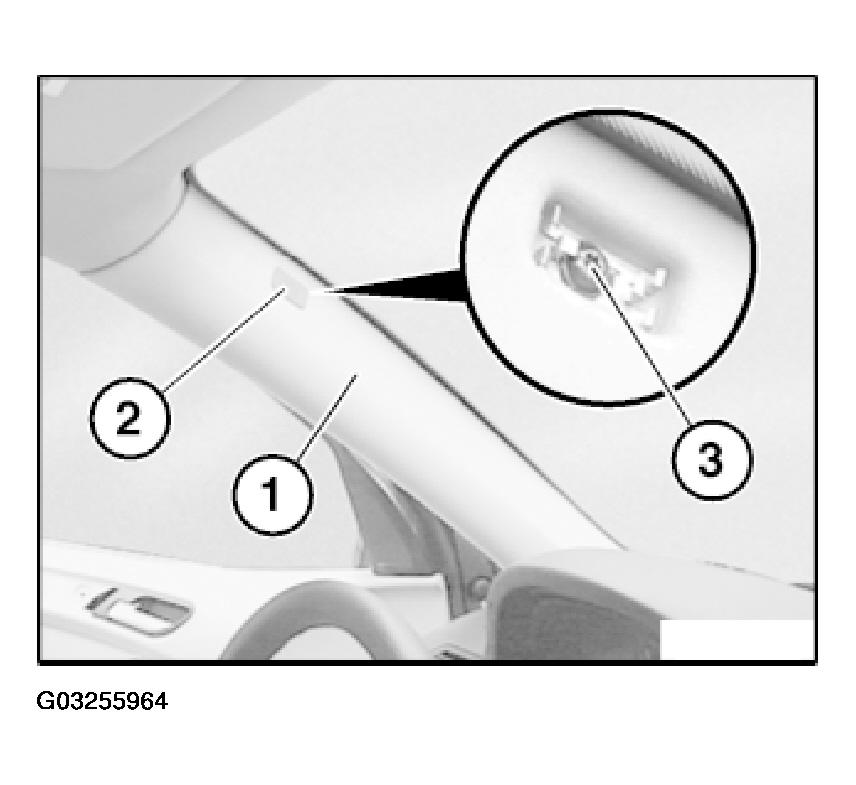

Remove plate (2).

Unscrew bolt (3).

Unclip panel (1) at top and detach towards top.

Fig 2: Detaching Panel At Top

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

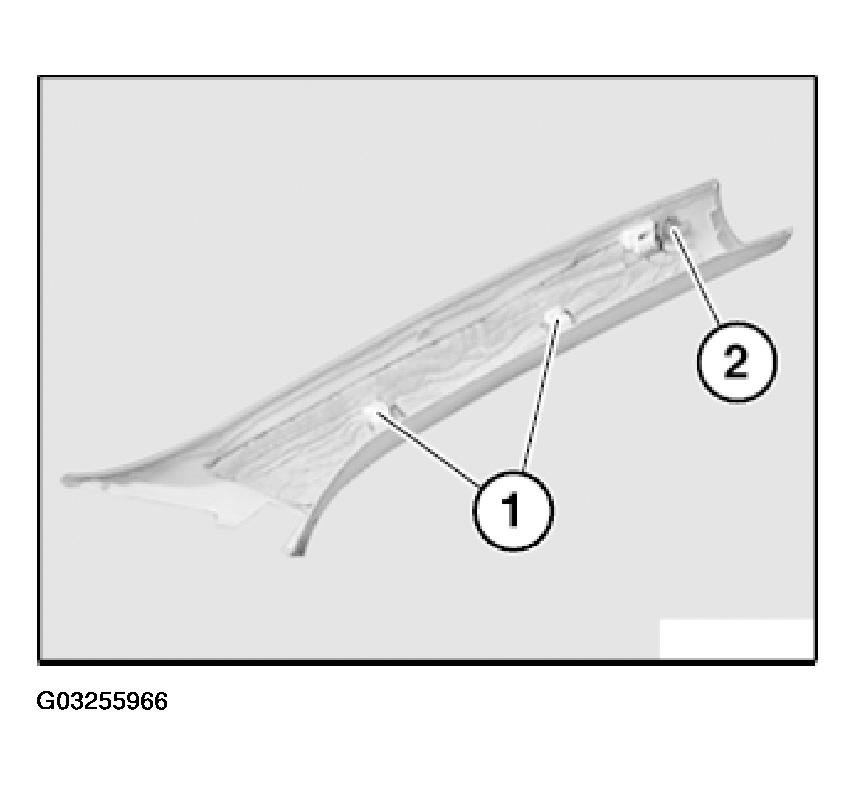

If necessary, replace faulty clips (1).

Align plastic lug (2) to retainer in A-pillar.

Fig 3: Locating Plastic Lug In Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

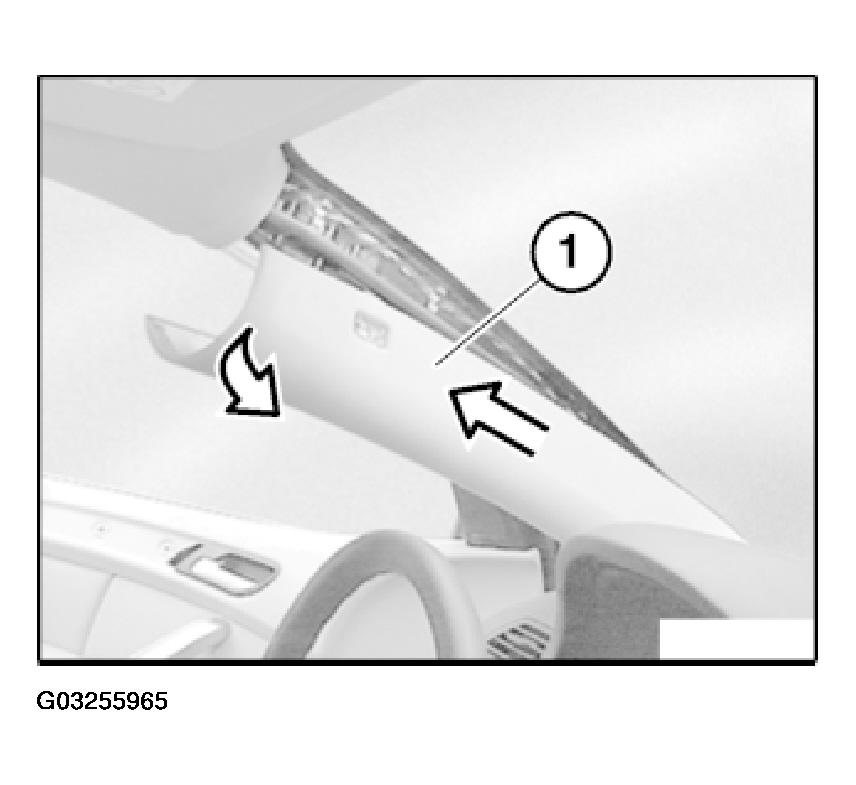

Viewing direction through windscreen:

Insert panel for roof pillar (1) into groove (2) of trim panel for instrument panel.

Fig 4: Locating Groove Of Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
