51 16 360 Removing and installing right glove box

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove bottom right trim panel from instrument panel. Refer to 51 45 181 REMOVING AND INSTALLING/REPLACING TRIM FOR INSTRUMENT PANEL, BOTTOM RIGHT .

Open glovebox.

Lever out glovebox lamp and disconnect plug connection.

Raise glovebox (1) a little and detach pin (2) from retaining strap (3).

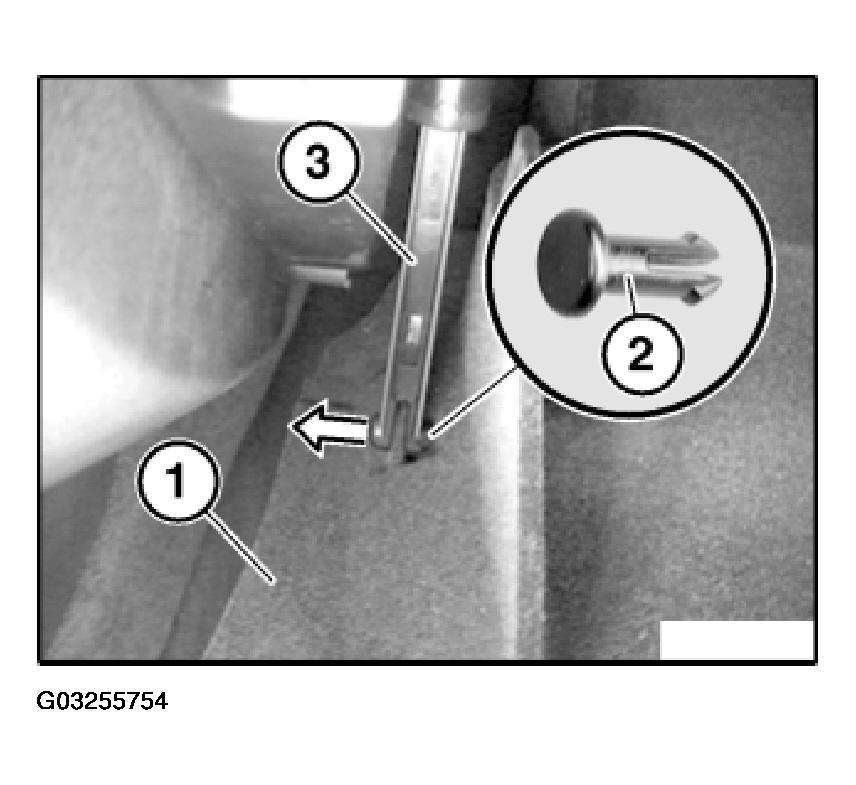

Fig 1: Identifying Pin From Retaining Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out cover from right glovebox and open fully.

Remove screws (1) and (2).

Release screws (3) and fold down glovebox (4).

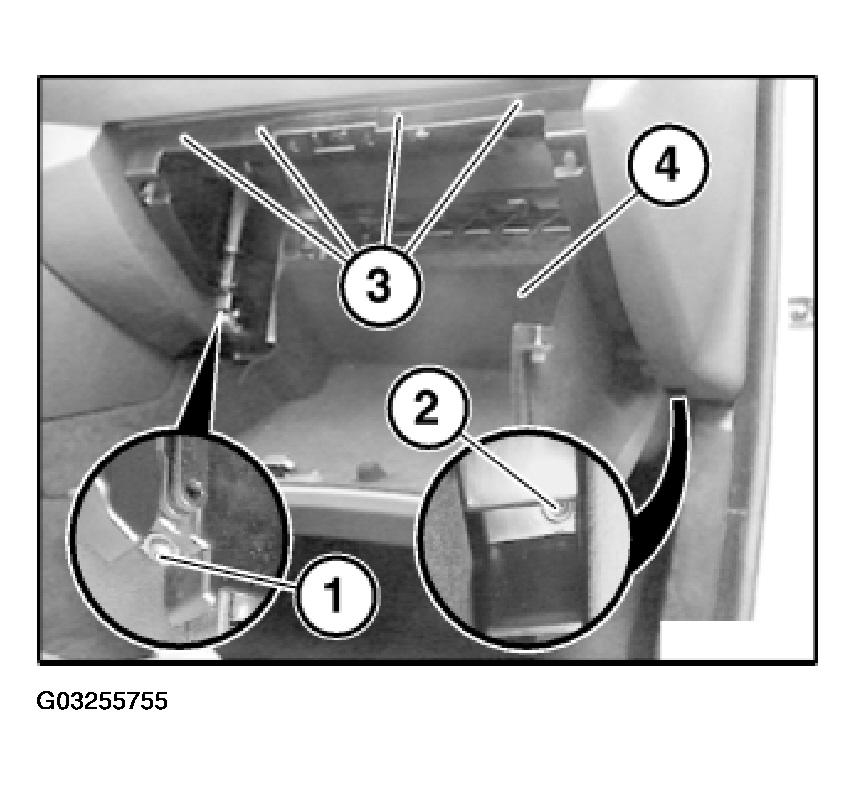

Fig 2: Releasing Screws From Glovebox

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, disconnect plug connection for portable lamp.

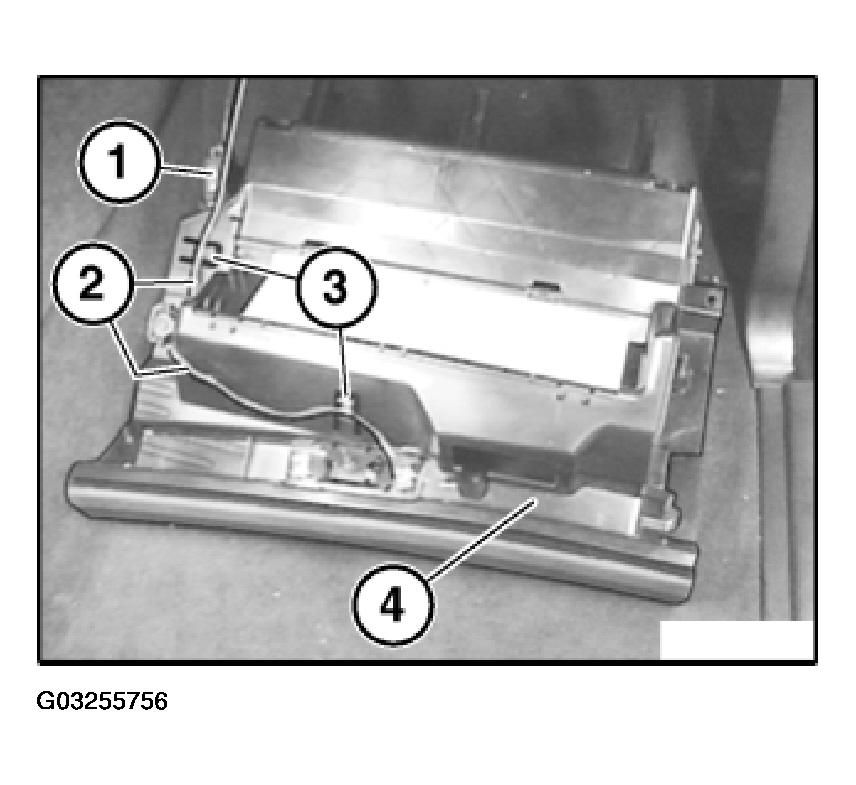

Fig 3: Disconnecting Plug Connection For Portable Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Feed cable (2) out of holder (3) and remove glovebox (4).
