65 52 010 Removing and installing on-board monitor

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove center fresh air grill. Refer to 64 22 161 REMOVING AND INSTALLING/REPLACING FRESH-AIR GRILL CENTER .

Detach felt strips (1) in lower area and fold upwards.

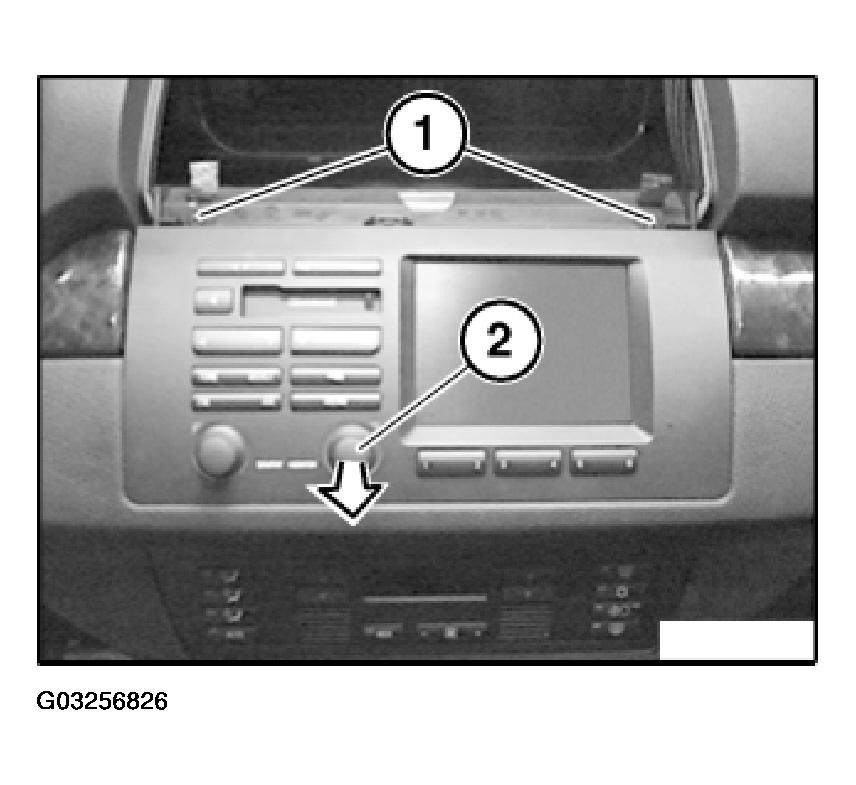

Fig 1: View Of Felt Strips In Lower Area

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Detach rotary knob (2).

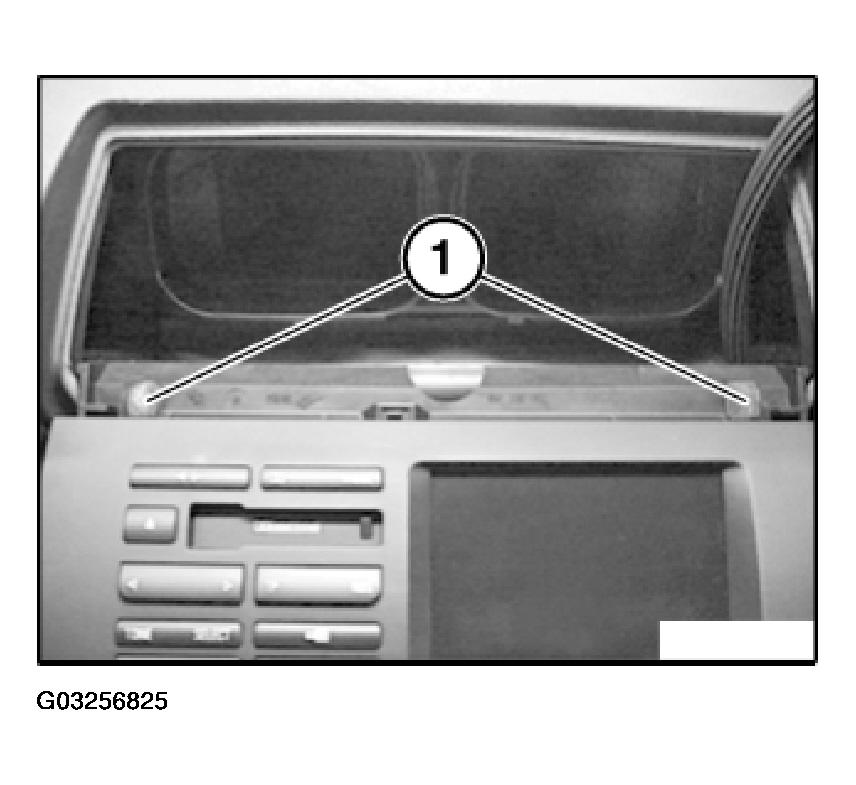

Fig 2: Detaching Rotary Knob

Courtesy of BMW OF NORTH AMERICA, INC.

Insert suitable screwdriver in aperture.

Turn screwdriver approx. 45° in direction of arrow and unlock on-board monitor.

Withdraw on-board monitor (1) and disconnect plug connections.

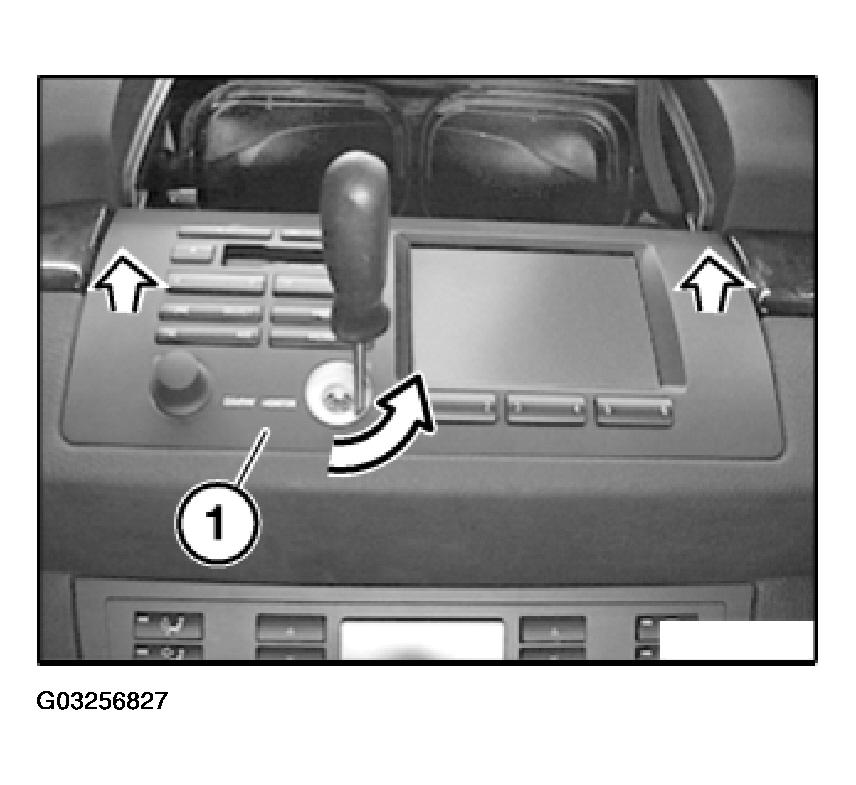

Fig 3: Unlocking On-Board Monitor Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

On-board monitor (1) must snap securely into place in lower lock.
