51 45 180 Removing and installing trim for instrument panel, bottom left

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Release screws (1).

Disconnect plug connection for OBD socket (2).

Unclip rubber gaiter from steering wheel trim and remove trim (2).

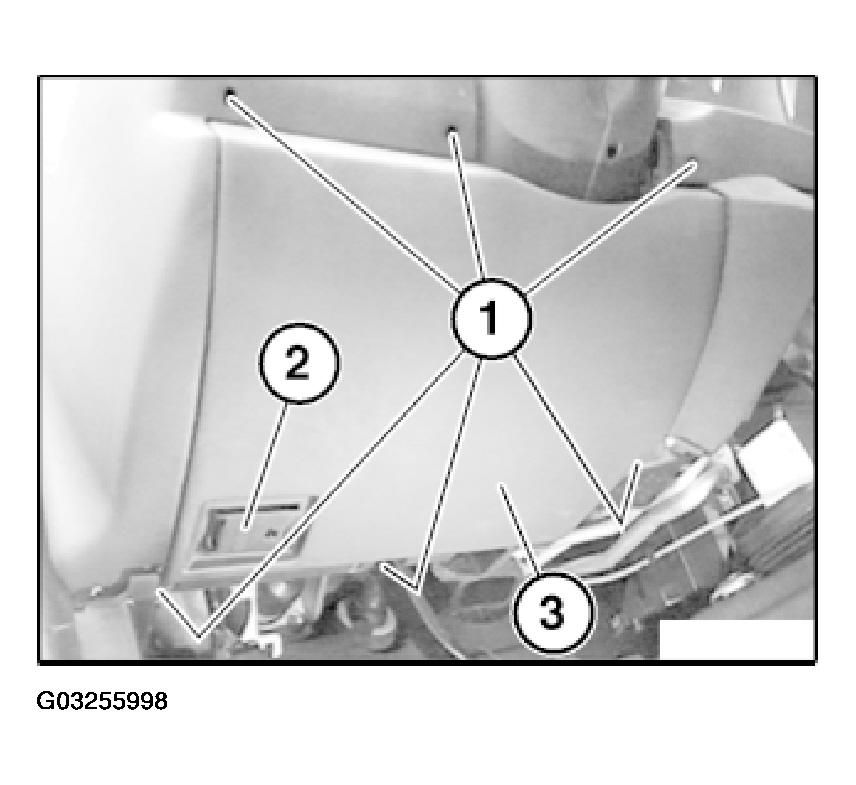

Fig 1: Disconnecting Plug Connection For OBD Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip rubber gaiter (1) correctly with clips (1) into fixtures (3) in steering wheel trim.

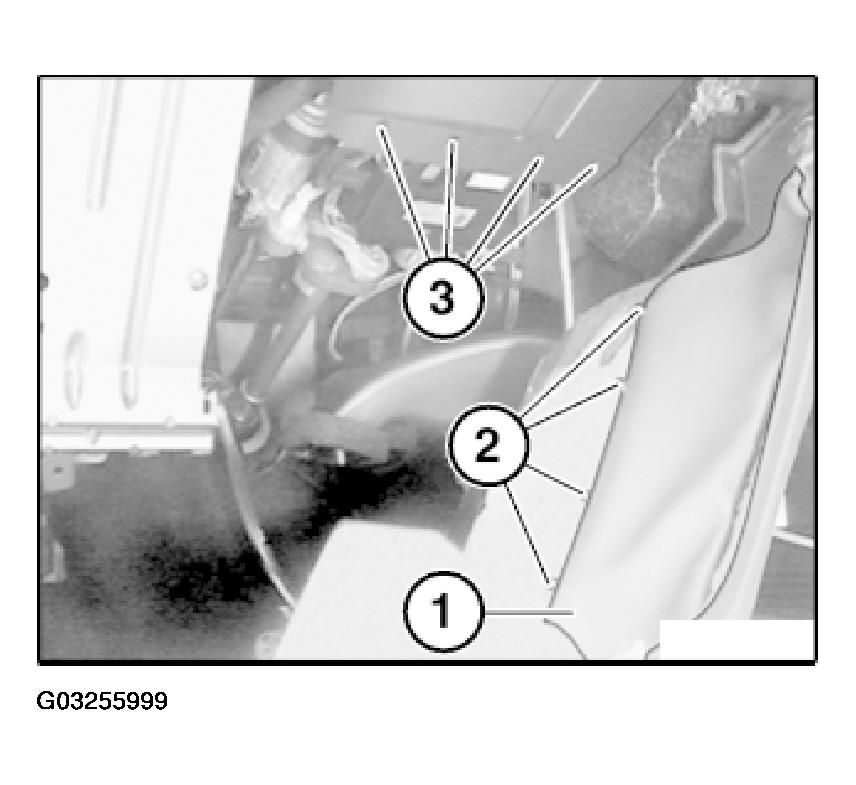

Fig 2: Clipping Rubber Gaiter Correctly With Clips Into Fixtures In Steering

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty metal nuts (1).

Rubber gaiter (2) and styrofoam (3) must not be damaged.

Replacement Only:

Remove OBD socket (4) from trim (5).

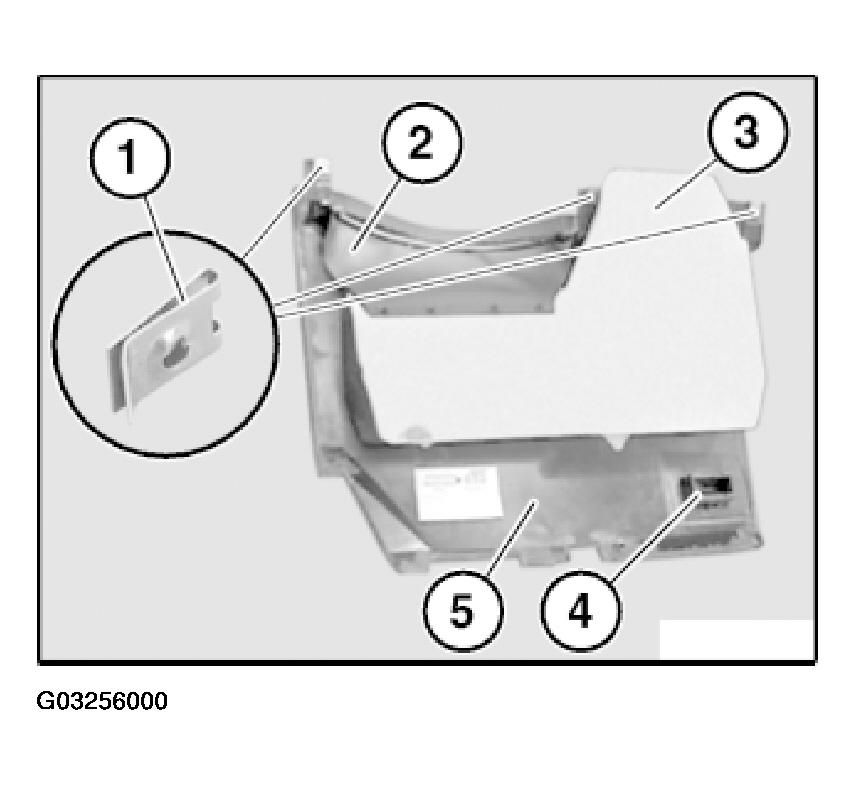

Fig 3: Clipping Rubber Gaiter With Clips Into Steering Wheel Trim

Courtesy of BMW OF NORTH AMERICA, INC.
