11 65 010 Removing and installing/replacing pressure accumulator (N63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove both exhaust turbochargers. See REMOVING TURBOCHARGER, RIGHT (CYLINDERS 1-4) and REMOVING TURBOCHARGER, LEFT (CYLINDERS 5-8) .
Remove both exhaust manifolds. See REMOVING LEFT EXHAUST MANIFOLD and REMOVING RIGHT EXHAUST MANIFOLD .
Remove HEAT SHIELD at bottom

Release banjo bolt (1).

Tightening torque 11 42 3AZ .

Installation note:

Replace sealing ring.

Release screw (3) on engine oil line.

Remove engine oil line (2).

Release screws (3) on vacuum reservoir (4).

Tightening torque 11 65 6AZ .

Remove vacuum reservoir (4).

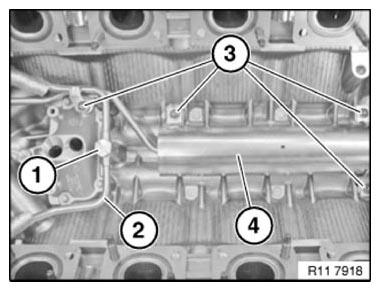

Fig 1: Identifying Vacuum Reservoir, Banjo Bolt, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Check VACUUM CONNECTIONS for correct routing.

Check VACUUM SYSTEM FOR LEAKS .

Assemble engine.
