11 65 Connection diagram, vacuum activation (N63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

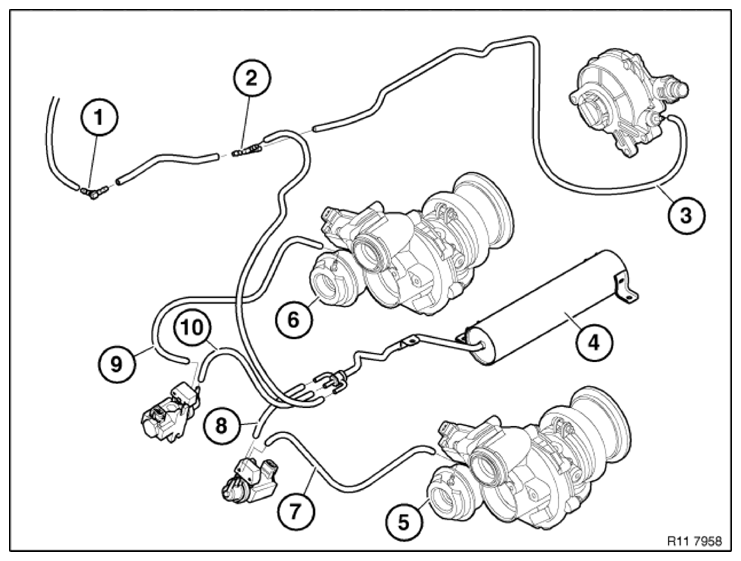

Fig 1: Vacuum Activation Connection Diagram (N63)
G10057982Courtesy of BMW OF NORTH AMERICA, INC.
  1. Connection (1) black  to exhaust flaps.
  2. Distributor element (2), vacuum pump/vacuum reservoir (4).
  3. Vacuum line (3) black  to vacuum pump.
  4. Vacuum reservoir (4) with three connections.
  5. Connection, vacuum unit (wastegate), bank 2, cylinders 5 to 8.
  6. Connection, vacuum unit (wastegate), bank 1, cylinders 1 to 4.
  7. Vacuum hose (7) yellow  up to 7/10 at vacuum unit connection (5) to pressure converter (OUT), bank 2 cylinders 5 to 8.
  1. 7 Vacuum hose (7) (as of 7/10, the vacuum line is plastic), vacuum unit connection (5) to the pressure converter (OUT), bank 2 cylinder 5 to 8.
  2. 8 Vacuum hose black  to vacuum reservoir connection to pressure converter (VAC) bank 2 cylinders 5 to 8.
  3. 9 Vacuum hose (9) up to 7/10 red at vacuum unit connection (6) to pressure converter (OUT), bank 1 cylinders 1 to 4.
  4. 9 Vacuum hose (9) (as of 7/10 red  , the vacuum line is plastic), vacuum unit connection (6) to pressure converter (OUT), bank 1 cylinders 1 to 4.
  5. 10 Vacuum hose black  to vacuum reservoir connection to pressure converter (VAC) bank 1 cylinders 1 to 4.
