11 65 030 Removing and installing/replacing exhaust turbocharger, left, cylinders 5-8 (N63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Risk of fire  if oil lines are leaking.
Risk of mixing up  vacuum hoses.

Necessary preliminary tasks:

Disconnect plug connection (1) on electric changeover valve (2).

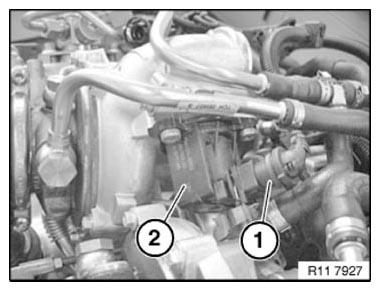

Fig 1: Identifying Electric Changeover Valve Plug Connection
G10058062Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 11 42 4AZ .

Unfasten banjo bolt (2).

Tightening torque 11 42 7AZ .

Lay oil line from turbocharger to side.

Installation note:

Replace all sealing rings.

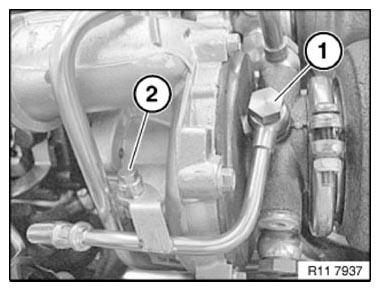

Fig 2: Identifying Screw And Banjo Bolt
G10058063Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 11 53 3AZ .

Release banjo bolt (2).

Tightening torque 11 53 2AZ .

Lay coolant return line to one side.

Installation note:

Replace all sealing rings.

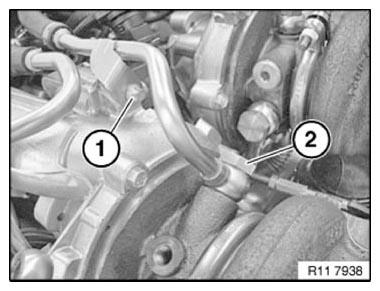

Fig 3: Identifying Banjo Bolt And Screw
G10058064Courtesy of BMW OF NORTH AMERICA, INC.

Open hose clamp (1).

Detach coolant feed line (2).

Installation note:

Replace hose clamp (1).

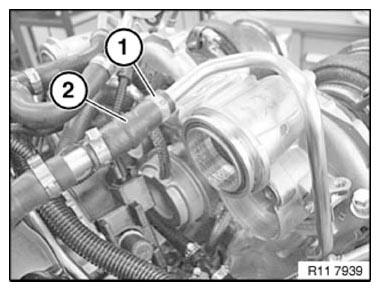

Fig 4: Identifying Coolant Feed Line And Hose Clamp
G10058065Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (4) with a suitable tool.

NOTE: Oil return pipe (3) can only be removed with turbocharger.

Tightening torque 11 42 10AZ .

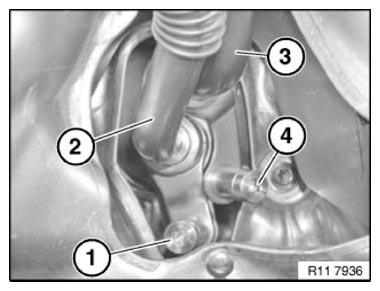

Fig 5: Identifying Oil Return Pipe And Screw
G10058066Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Open V-band clamp (2).

IMPORTANT: Do not mechanically deform oil return line.

Remove turbocharger with oil return line in upward direction.

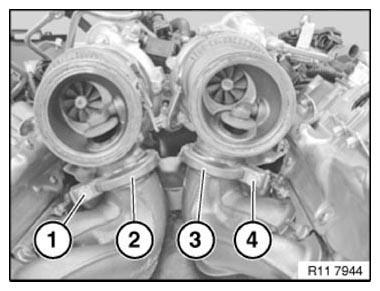

Fig 6: Identifying Wastegate Valves
G10058067Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, convert coolant feed line to new turbocharger.

Release banjo bolt (1).

Tightening torque 11 53 2AZ .

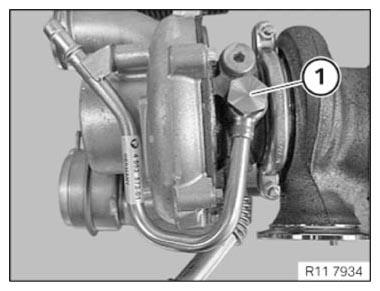

Fig 7: Identifying Banjo Bolt
G10058068Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 11 53 3AZ .

Modify coolant feed line (2).

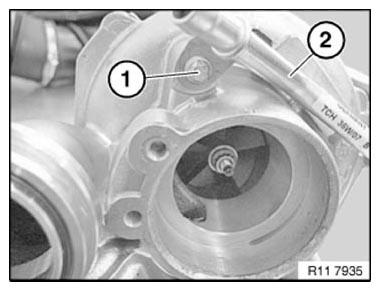

Fig 8: Identifying Coolant Feed Line And Screw
G10058069Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 42 9AZ .

Remove oil return pipe (2).

Installation note:

A new oil return pipe must always be fitted.

Replace seal.

Fig 9: Identifying Oil Return Pipe With Screws
G10058070Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: A deformed oil return pipe can result in leaks.
Risk of fire if oil line is leaking.

The thermal linear compensators (see arrows) on the oil return pipe (1) must not be mechanically deformed.

Installation note:

Moisten oil return pipe at end with engine oil.

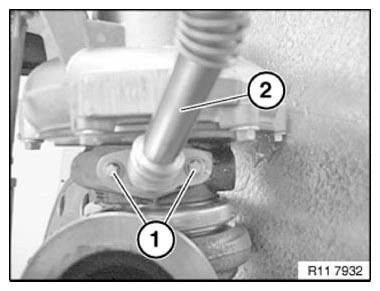

Fig 10: Identifying Thermal Linear Compensators On Oil Return Pipe
G10058071Courtesy of BMW OF NORTH AMERICA, INC.

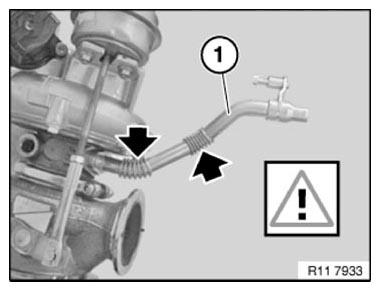

IMPORTANT: The O-rings can easily fall into the oil duct.

Installation note:

Replace O-rings on oil return cover (2).

NOTE: Picture shows turbocharger removed.

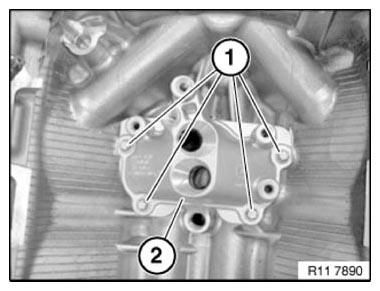

Fig 11: Identifying Oil Return Cover And Screws
G10058072Courtesy of BMW OF NORTH AMERICA, INC.

Replace gasket (1) on exhaust manifold.

Installation note:

Check locating apparatus on exhaust manifold.

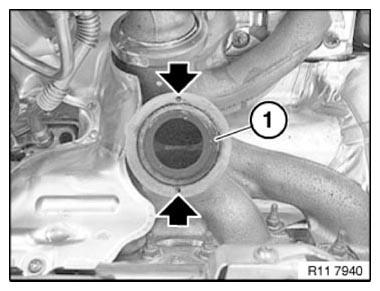

Fig 12: Identifying Exhaust Manifold Gasket And Locating Apparatus On Exhaust Manifold
G10058073Courtesy of BMW OF NORTH AMERICA, INC.

Position turbocharger with oil return line on exhaust manifold.

Position V-band clamp (2).

Insert screw (1).

Tightening torque 11 65 1AZ .

Fig 13: Identifying Wastegate Valves
G10058074Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The ends of the V-band clamp must rest parallel to each other.

Tightening torque 11 65 1AZ .

Fig 14: Identifying Correct Position Of V-Band Clamp Ends
G10058075Courtesy of BMW OF NORTH AMERICA, INC.

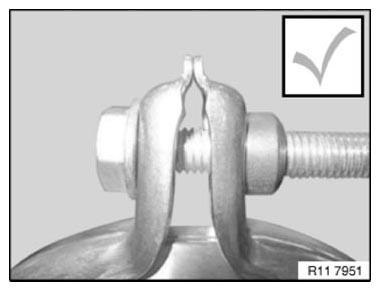

Screw connection of V-band clamp is too loose:

If you can see a gap between the ends of the V-band clamps, release and then repeat the screw connection.

Tightening torque 11 65 1AZ .

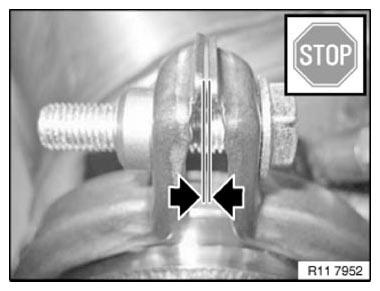

Fig 15: Identifying Improper Screw Connection Of V-Band Clamp - Too Loose
G10058076Courtesy of BMW OF NORTH AMERICA, INC.

Screw connection of V-band clamp is too tight:

If the ends of the V-band clamp are positioned under each other, release and then repeat the screw connection.

Tightening torque 11 65 1AZ .

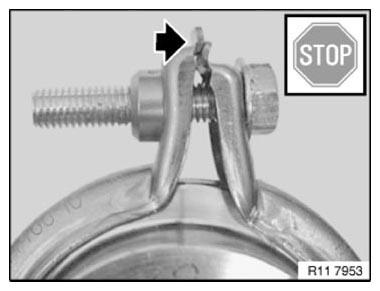

Fig 16: Identifying Improper Screw Connection Of V-Band Clamp - Too Tight
G10058077Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Risk of mixing up  vacuum hoses.

Vacuum hose (1) for cylinders 5-8

Old version: black/blue

New version: black/yellow

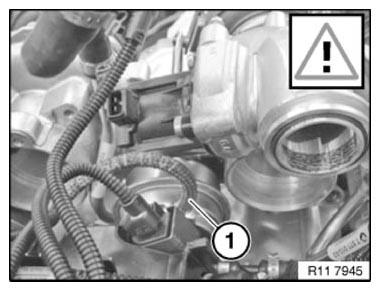

Fig 17: Identifying Vacuum Hose
G10058078Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check VACUUM CONNECTIONS .

Observe BMW diagnosis instructions.
