11 65 185 Removing and installing/renewing heat shield at bottom (N63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Disconnect the BATTERY CABLE FROM THE NEGATIVE TERMINAL .
Remove FAN COWL with electric fan.
Remove the ALTERNATOR .
Remove both exhaust turbochargers. See REMOVING TURBOCHARGER, RIGHT (CYLINDERS 1-4) and REMOVING TURBOCHARGER, LEFT (CYLINDERS 5-8) .
Remove both exhaust manifolds. See REMOVING LEFT EXHAUST MANIFOLD and REMOVING RIGHT EXHAUST MANIFOLD .

Release screws (1).

Tightening torque 11 65 3AZ .

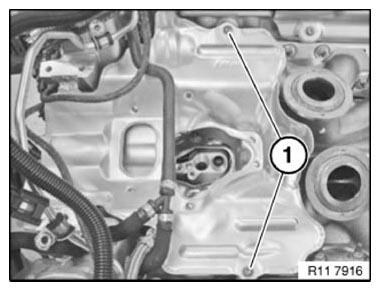

Fig 1: Identifying Heat Shield Screws

G10058003

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 65 3AZ .

Remove heat shield (2) towards top.

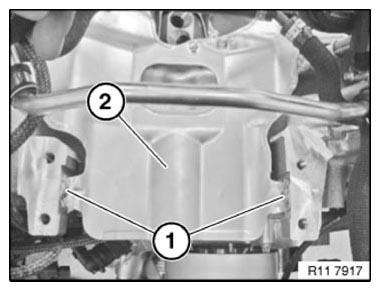

Fig 2: Identifying Heat Shield And Screws

G10058004

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 65 3AZ .

IMPORTANT: Risk of interchange on replacement of the heat shield.
Other shields are installed in the N63H and S63 engines.

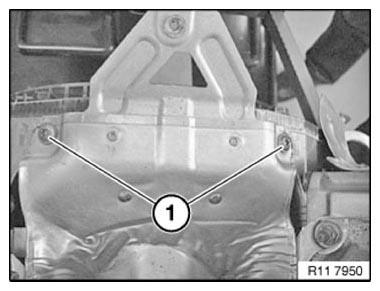

Fig 3: Identifying Heat Shield Screws

G10058005

Courtesy of BMW OF NORTH AMERICA, INC.

Release front screws on heat shield (1).

Tightening torque 11 65 3AZ .

Remove heat shield (1) towards top.

IMPORTANT: Risk of interchange on replacement of the heat shield.
Other shields are installed in the N63H and S63 engines.

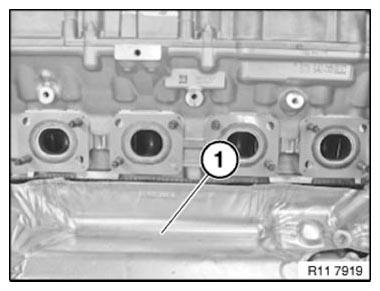

Fig 4: Identifying Heat Shield

G10058006

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
