51 42 001 Replacing left or right door trim panel (up to 03/2007)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL .
Remove ROCKER SWITCH FOR SIDE WINDOW OPERATION .
Remove REAR SPEAKER .
Remove AIRBAG MODULE FROM REAR DOOR .
Remove ROLLER SUN BLIND from side window in rear door.
Remove INSIDE DOOR OPENER ON REAR DOOR .
Remove INSIDE HANDLE ON REAR DOOR .
Replace ARMREST .
Replace DOOR POCKET .

Version with interior light package:

Remove TRIM FOR DOOR HANDLE/DOOR COMPARTMENT LIGHT

Version with rear smokers' package:

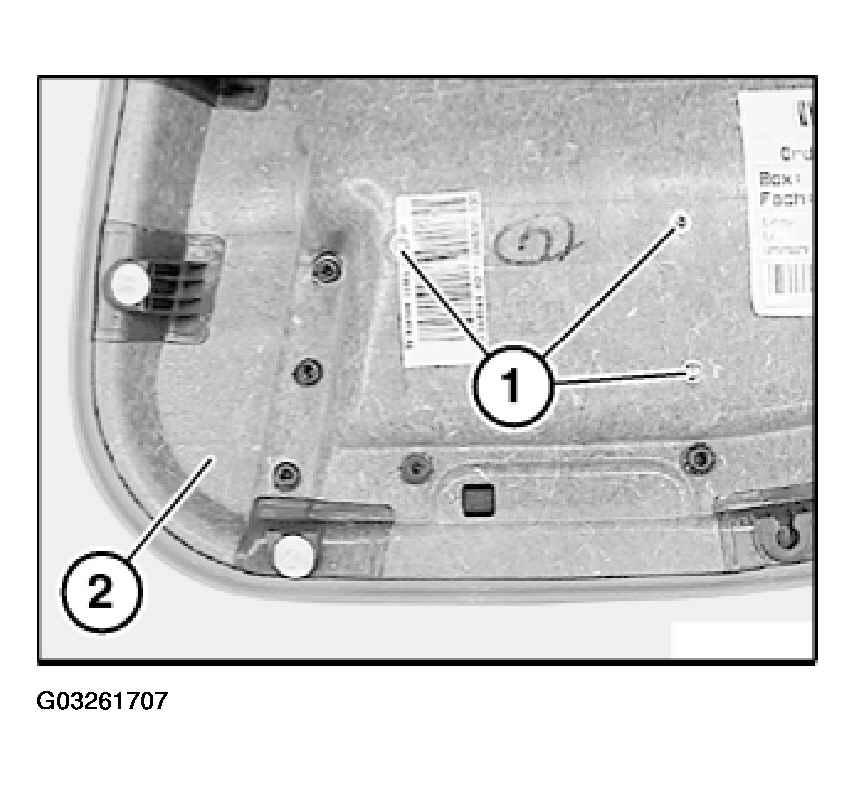

If necessary, release screws (1) on rear door trim panel (2).

Fig 1: Removing Screws On Rear Door Trim Panel

G03261707

Courtesy of BMW OF NORTH AMERICA, INC.

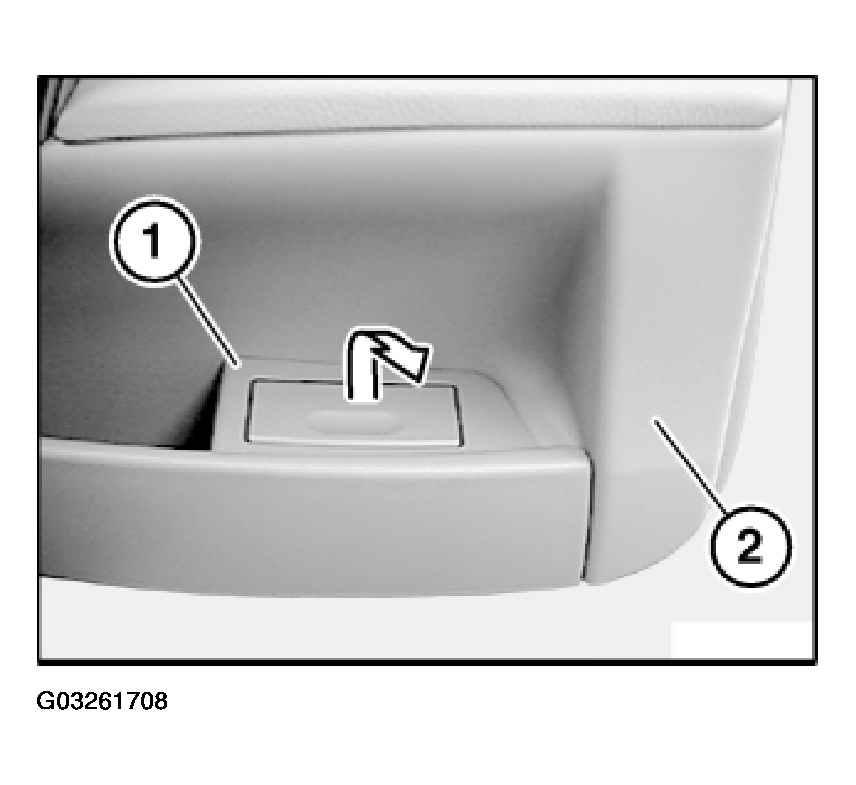

If necessary, feed out trim with ashtray (1) in direction of arrow from rear door trim panel (2).

Fig 2: Removing Trim With Ashtray

G03261708

Courtesy of BMW OF NORTH AMERICA, INC.

Version with interior light package:

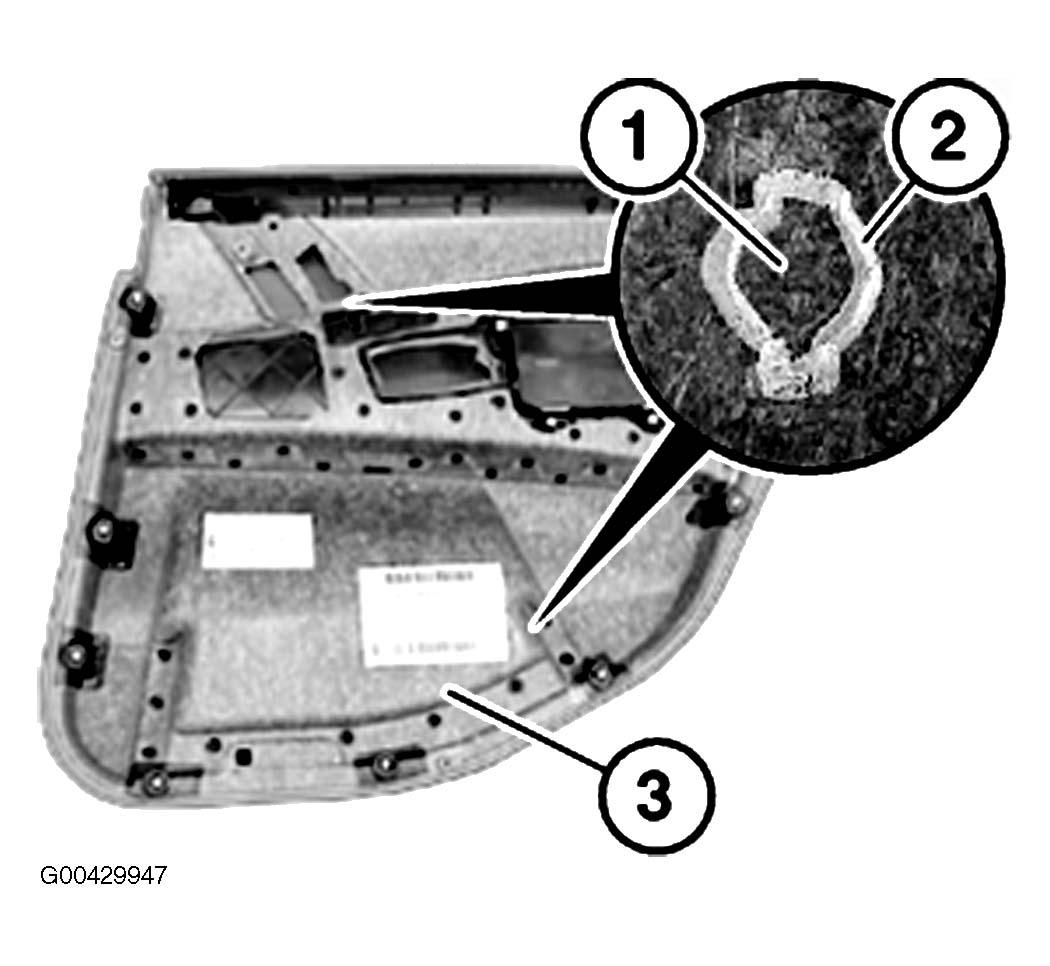

Cut out opening (1) at molding (2) with a very sharp knife.

IMPORTANT:

Ensure a clean cut so that the door trim panel cover (3) is not damaged.

Fig 3: Cutting Out Opening (1) At Molding (2) With A Sharp Knife

G00429947

Courtesy of BMW OF NORTH AMERICA, INC.
