51 42 060 Removing and installing/replacing armrest on rear left or right door trim panel
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
Remove REAR DOOR TRIM PANEL .
Remove REAR DOOR HANDLE .

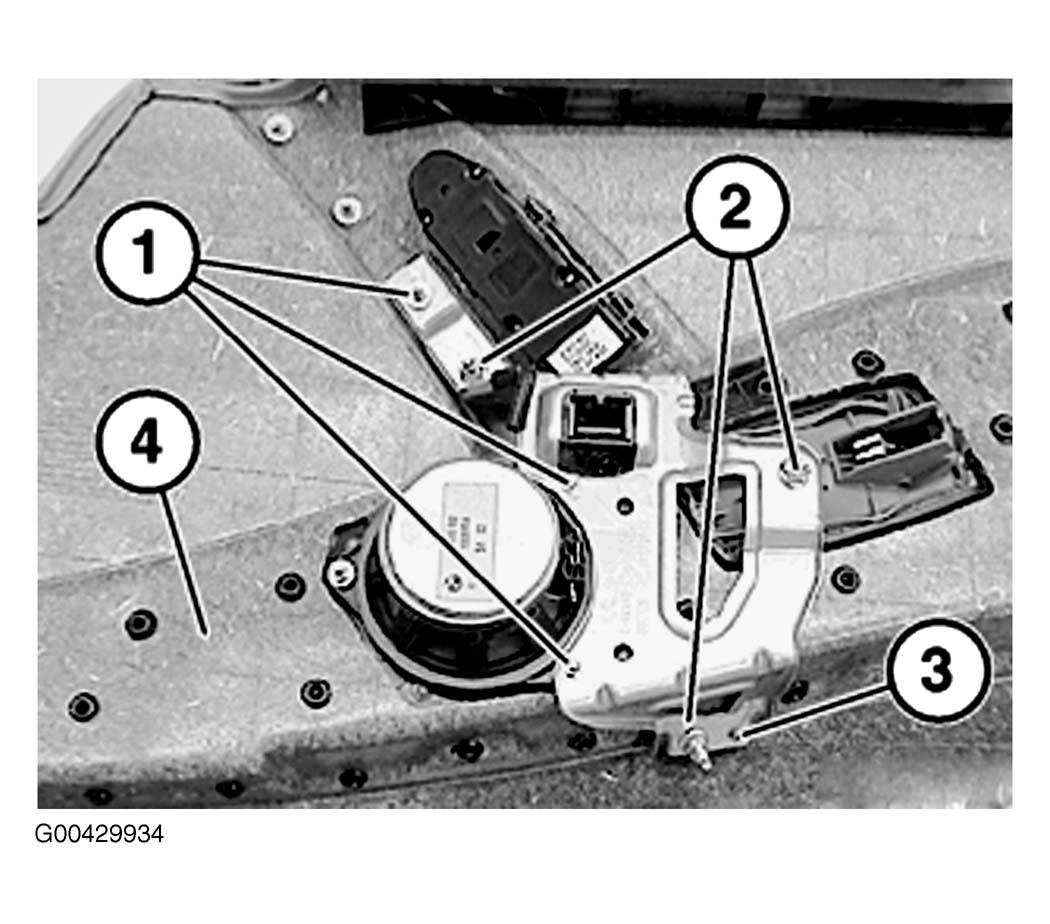

Release nuts (1 and 2). Remove retaining plate from door trim panel (4).
Installation:
Retaining plate must be positioned over pin (3).
IMPORTANT:
Only drill down to door trim panel area (2) so as not to damage the contact surface.
Drill out welding spots (1) on door trim panel (2) with 8 mm dia. welding spot drill bit. Release nut (3) and remove armrest.
NOTE:
Armrest is welded to door trim panel only on initial installation. If necessary, release nuts (3) instead of welding spots (1).
Installation:
Attach armrest (1) to door trim panel and screw down with nuts (2).
