51 42 019 Removing and installing/replacing door handle on door trim panel, rear left or right (up to 03/2007)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL .

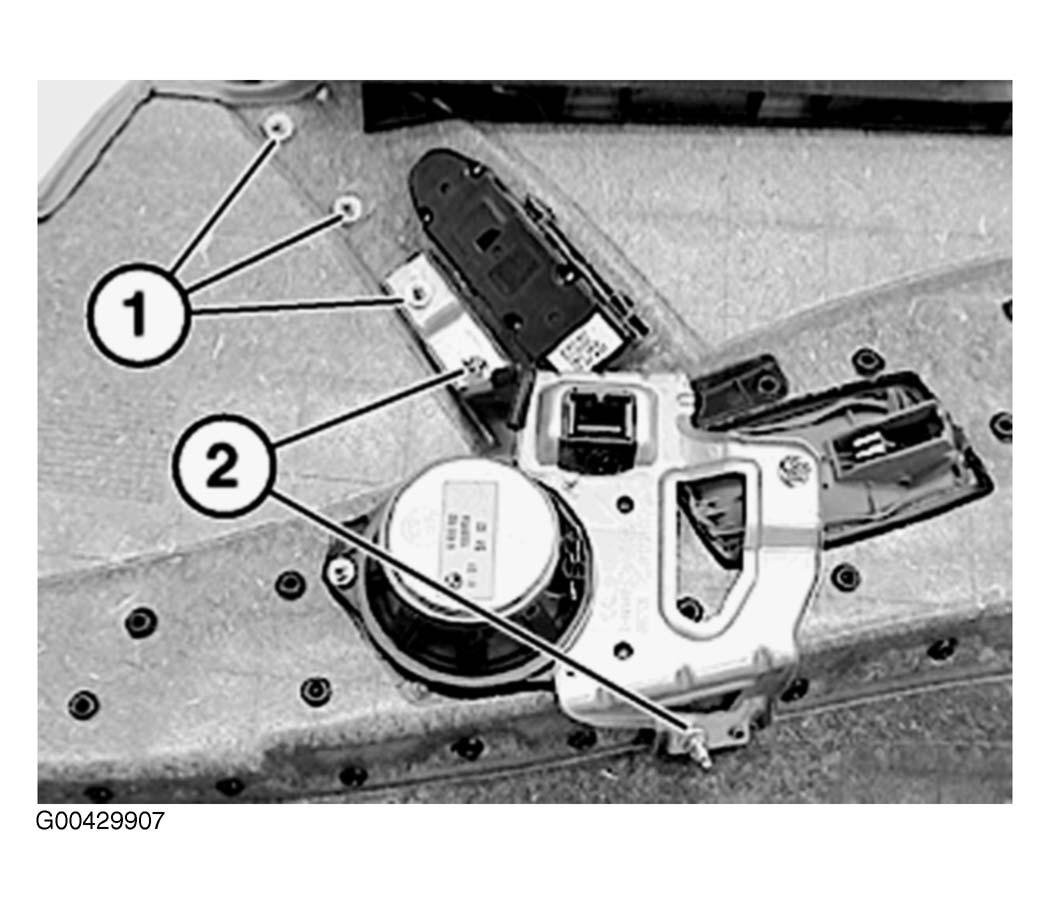

Release nuts (1 and 2).

Fig 1: Removing Nuts

G00429907

Courtesy of BMW OF NORTH AMERICA, INC.

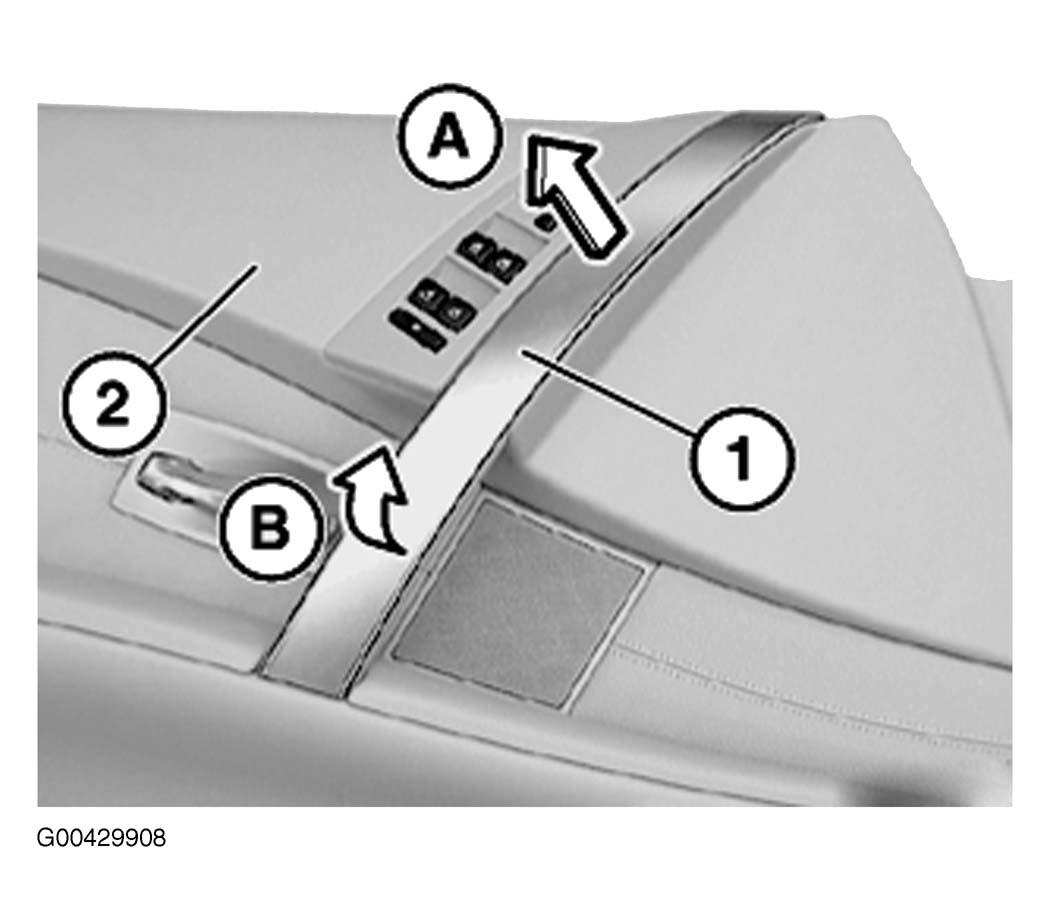

Lever inside handle (1)

A) out of upper screw fastening points

B) and pull off upwards from door trim panel (2).

Fig 2: Removing Inside Handle

G00429908

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

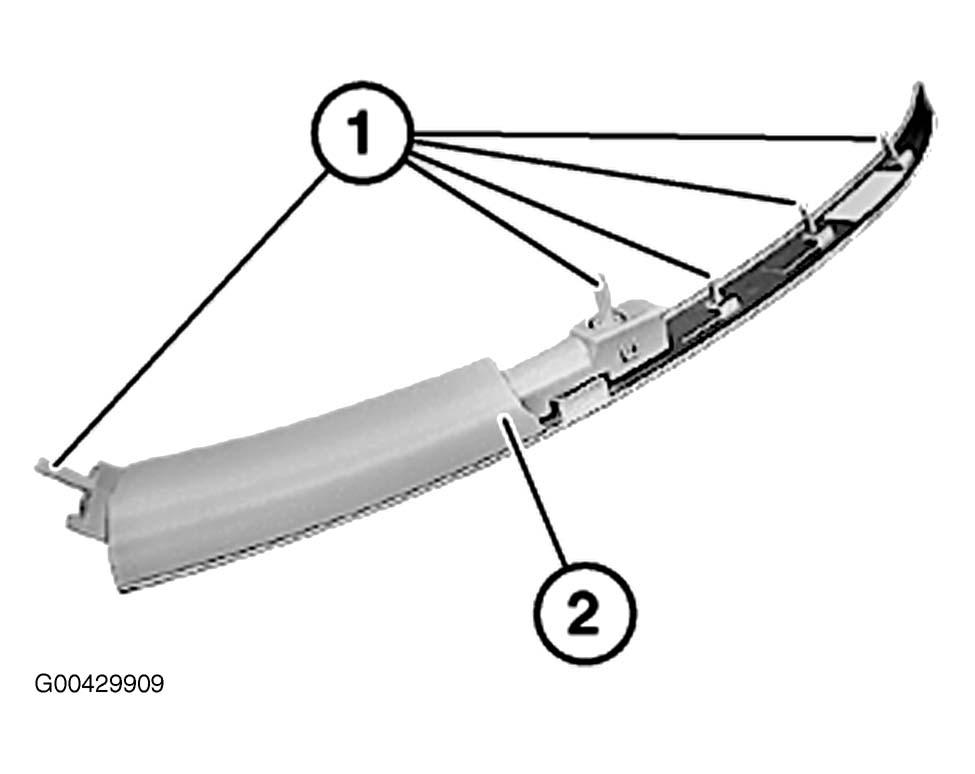

Screws (1) and fixtures of inside handle (2) must not be damaged.

Fig 3: Checking Screws & Fixtures

G00429909

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

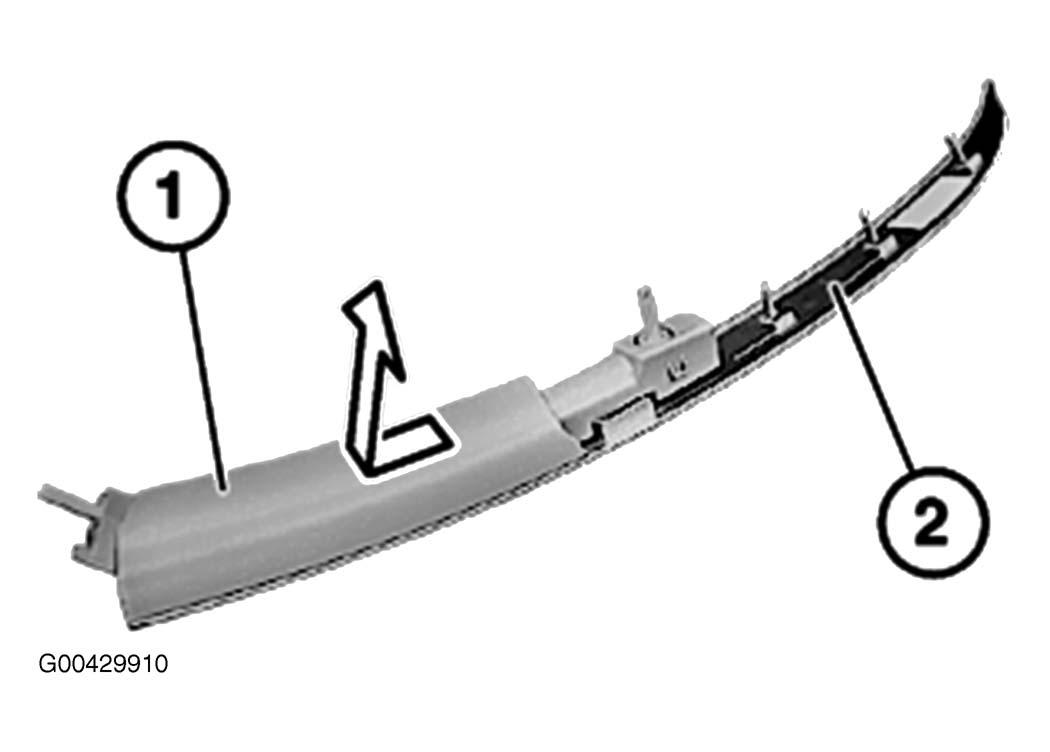

Feed inside handle (1) in direction of arrow out of decorative strip (2) and remove.

Fig 4: Feeding Inside Handle In Direction Of Arrow

G00429910

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

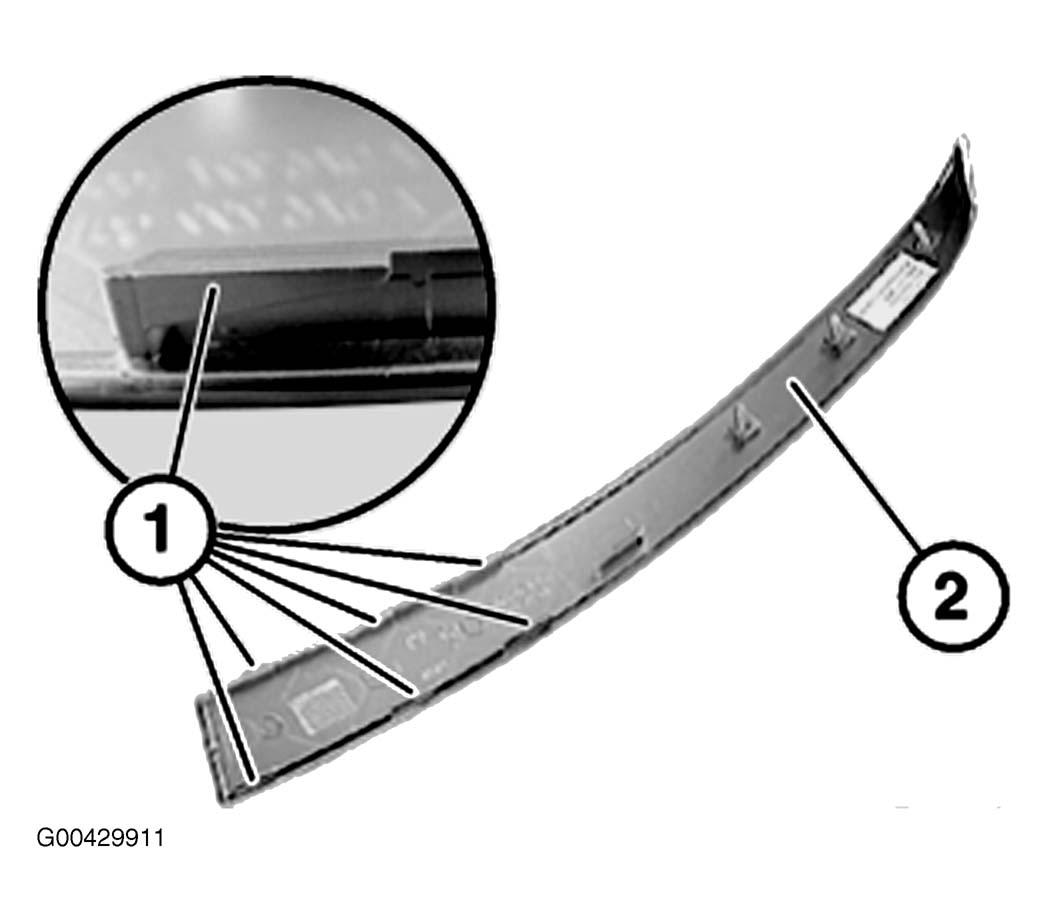

Catches (1) on decorative strip (2) must not be damaged.

Fig 5: Ensure Catches Are Not Damaged

G00429911

Courtesy of BMW OF NORTH AMERICA, INC.
