51 16 400 Removing and installing/replacing roller sun blind on fixed side window of left or right rear door

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Retract roller sun blind (1).

Open side window.

Unclip holder (2) on roller sun blind (1) in direction of arrow.

Installation:

Holder (2) must not be damaged.

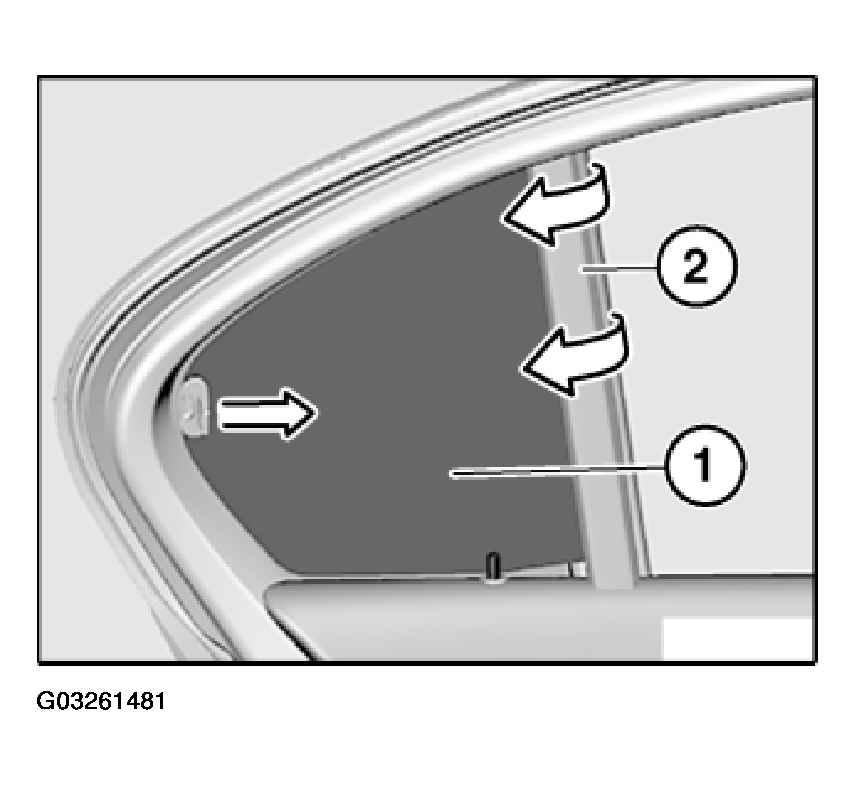

Fig 1: Removing Holder Clip On Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Snap roller sun blind into retaining clip (1).

Retaining clip (1) must not be damaged.

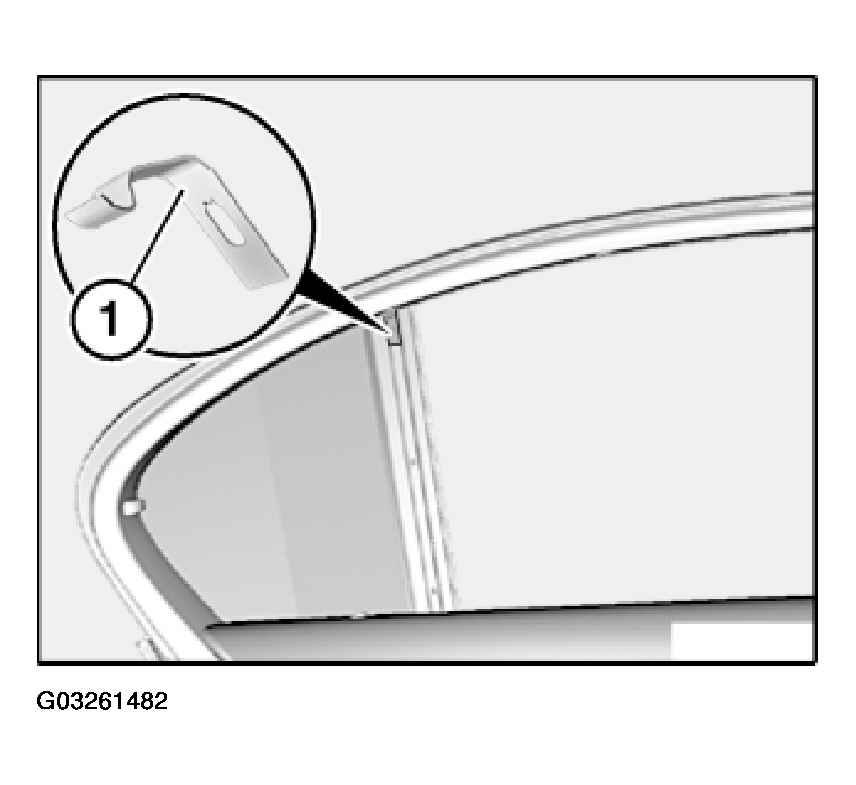

Fig 2: Installing Snap Roller Sun Blind Into Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.
