51 42... Removing and installing/replacing door pocket on rear left or right door trim panel (up to 03/2007)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL .

IMPORTANT:

Only drill down to door trim panel area (2) so as not to damage the contact surface.

Drill out welding spots (1) on door trim panel (2) with 8 mm dia. welding spot drill bit and remove door pocket.

NOTE:

Door pocket is welded to door trim panel only on initial installation.

If necessary, release nuts instead of welding spots (1).

Fig 1: Identifying Welding Spots On Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Secure door pocket with nuts (1) to door trim panel (2).

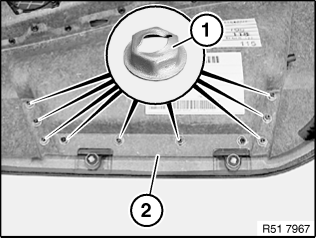

Fig 2: Identifying Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
