51 47 440 Removing and installing/replacing rear carpet on seat pan
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove both FRONT SEATS
- Remove REAR SEAT
- Remove both PANELS FOR DOOR PILLARS
- Remove both rear inner ENTRANCE COVER STRIPS
- Remove HANDBRAKE LEVER
Version with central bass speaker:
- Remove both CENTRAL BASS SPEAKER TRIMS
Build date from 09/2005:
- Remove AIRBAG CONTROL UNIT
Build date up to 08/2005:

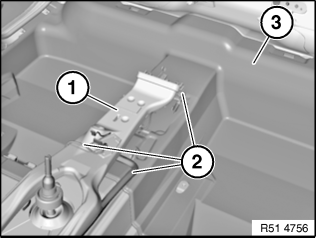

If necessary, disconnect plug connections from air duct (1).
Remove air duct (1).
Lay back cable (2) and feed out carpet (3) towards rear/top.
Installation:
Make sure that handbrake Bowden cable, cable, apertures for air guides and attachment points are correctly positioned.
