51 47 030 Removing and installing/replacing rear (inside) left or right entrance cover strip

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR SEAT .

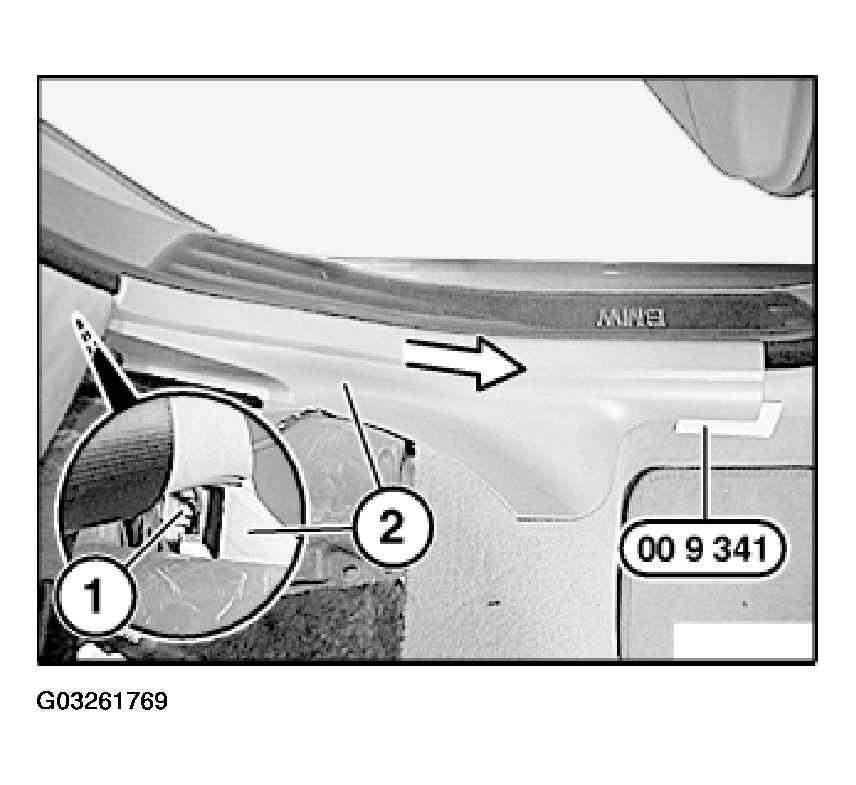

Release screw (1) of entrance cover strip (2).

Insert special tool 00 9 341 at front under cover strip.

Pull out entrance cover strip (2) downwards/forwards.

Fig 1: Removing Screw Of Entrance Cover Strip

G03261769

Courtesy of BMW OF NORTH AMERICA, INC.

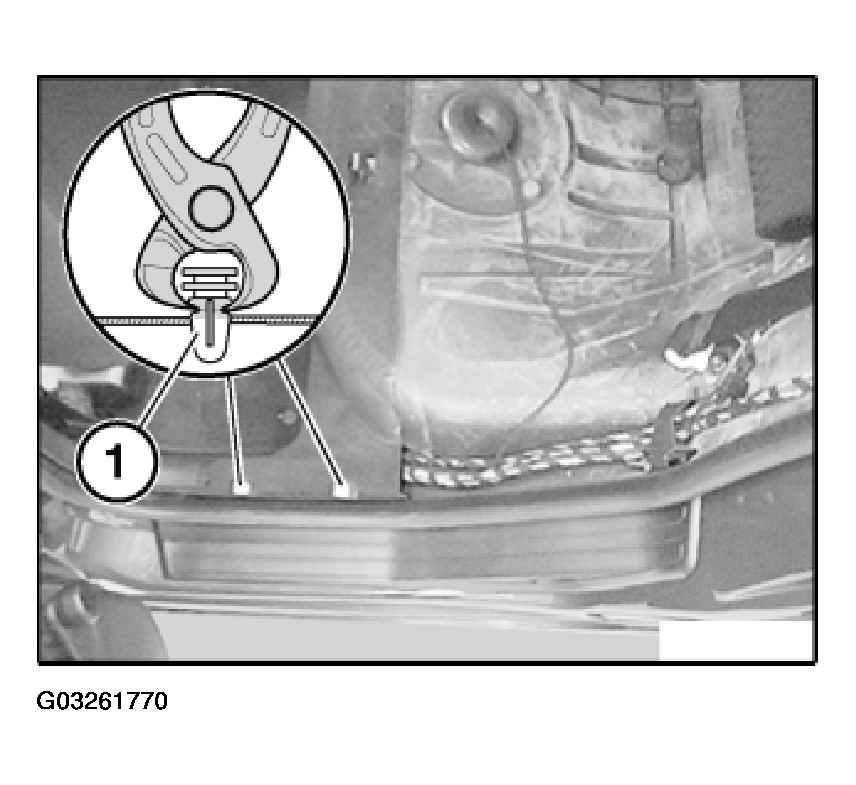

Lever out clips (1) with pliers (head of pliers surface-ground).

Fig 2: Removing Clips With Pliers

G03261770

Courtesy of BMW OF NORTH AMERICA, INC.

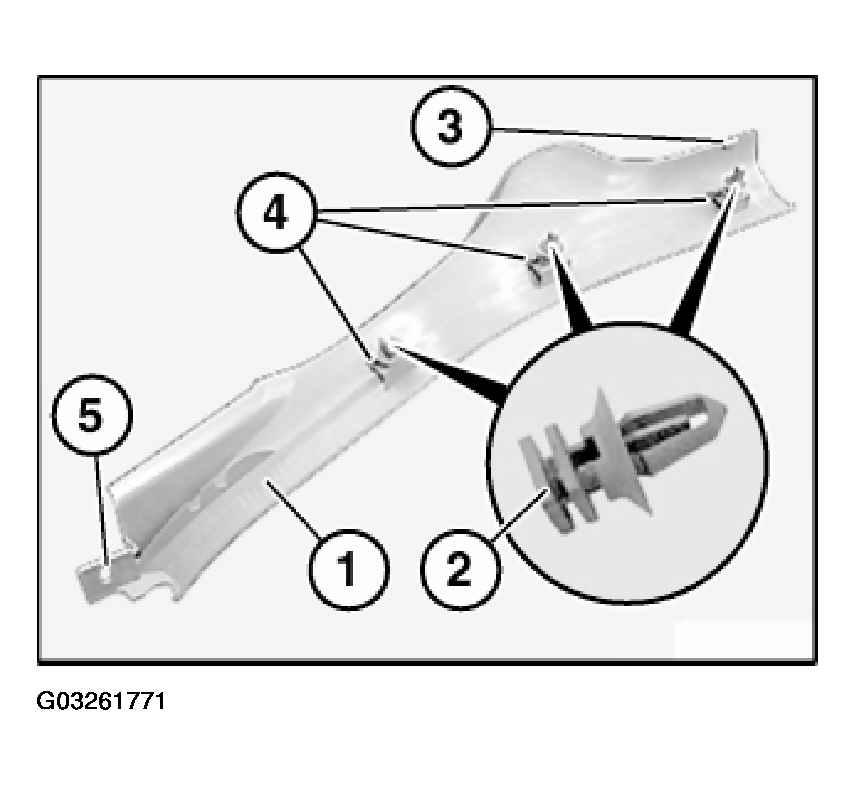

Push clips (2) onto entrance cover strip (1).

Installation:

Following parts of entrance cover strip (1) must not be damaged or missing:

2) Clips

3) Retaining lug

4) Guides for clips

5) Bore

Fig 3: Installing Clips Onto Entrance Cover Strip

G03261771

Courtesy of BMW OF NORTH AMERICA, INC.
