51 43 150 Removing and installing or replacing trim for left or right door pillar (bottom)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT ENTRANCE COVER STRIP .

Partially detach mucket in area of B-pillar trim.

Insert special tool 00 9 341 (removal aid) under rear entrance cover strip (inside).

Unclip trim for door pillar (2) by pulling inwards (1), then pull downwards to remove.

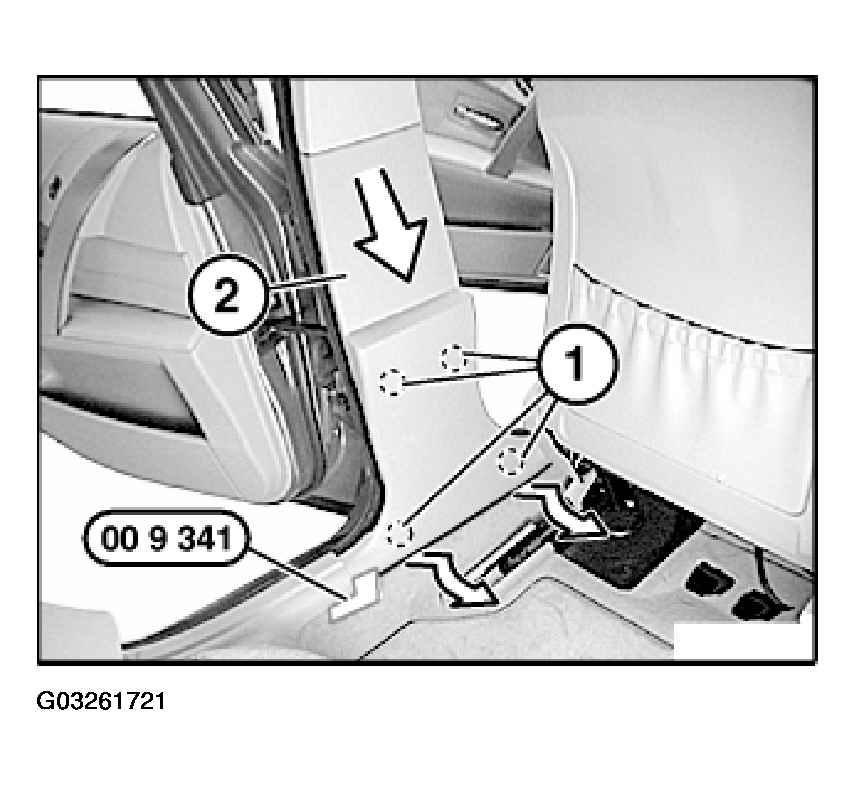

Fig 1: Inserting Special Tool Under Rear Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of trim for door pillar (1) must not be damaged or missing:

2 Clips

3 Hook

4 Guides

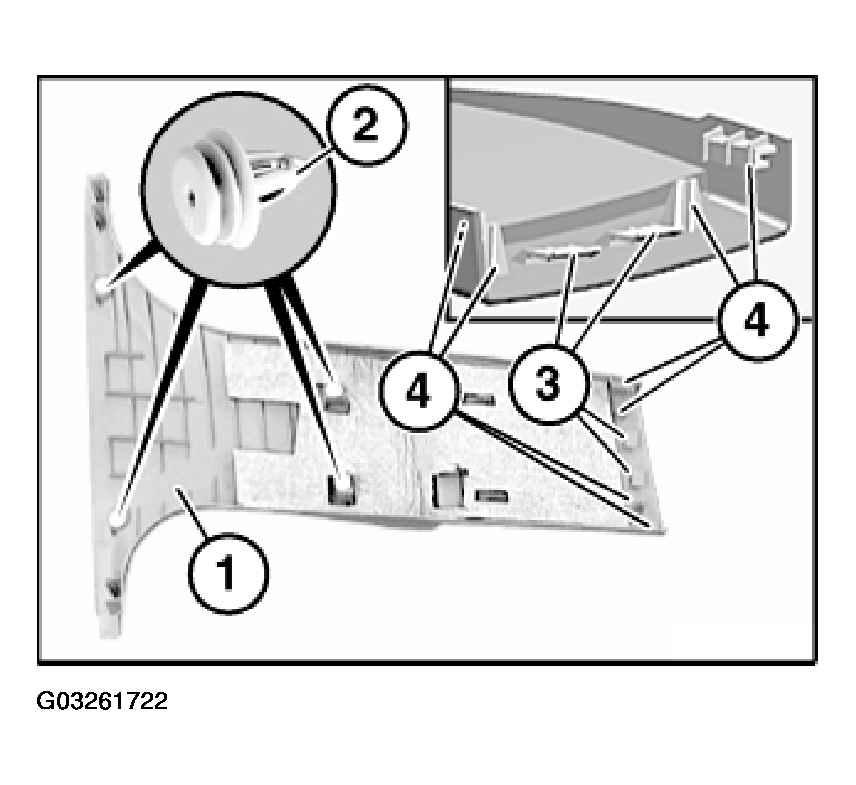

Fig 2: Identifying Door Pillar (1), Clips (2), Hooks (3) And Guides (4)

Courtesy of BMW OF NORTH AMERICA, INC.
