65 12 050 Removing and installing/replacing left or right central bass speaker (under front seat)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT SEAT .
Remove PANEL FOR DOOR PILLAR .

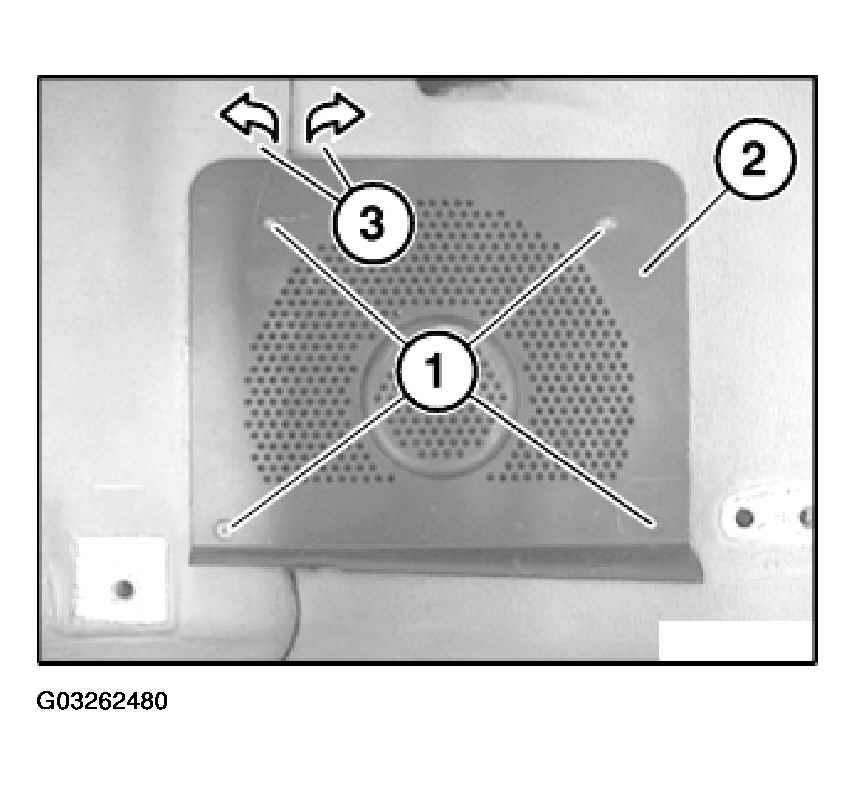

Release screws (1).

Remove central bass speaker trim (2).

Fold back floor trims (3) in direction of arrow.

Fig 1: Removing Central Bass Speaker Trim

G03262480

Courtesy of BMW OF NORTH AMERICA, INC.

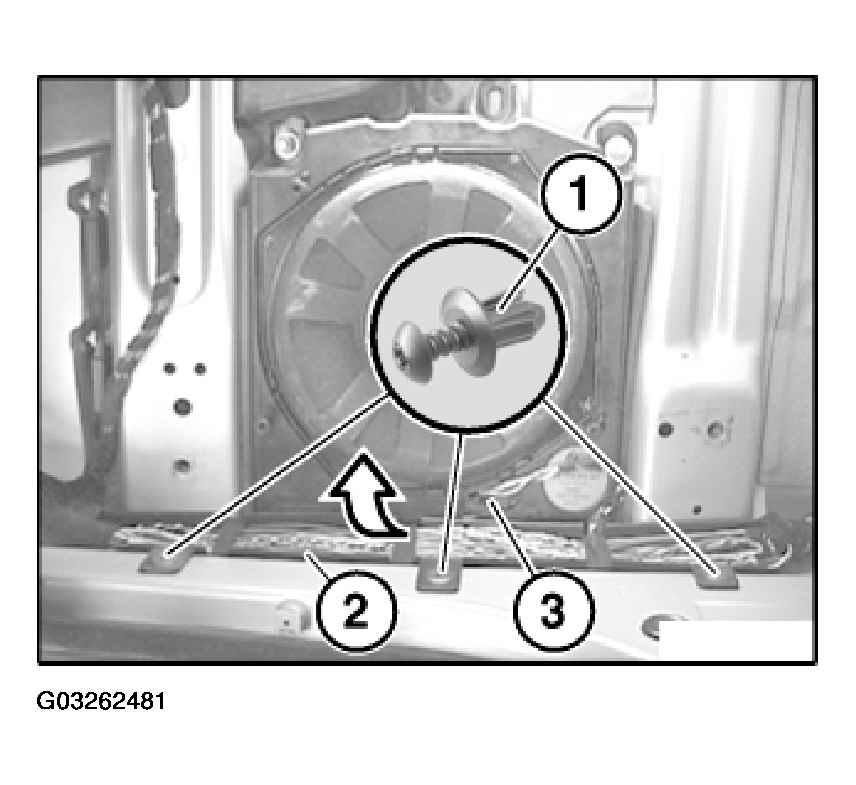

Remove clips (1).

Fold back entrance cable cover (2) in direction of arrow.

Unfasten plug connection (3) and disconnect.

Fig 2: Disconnecting Plug Connection

G03262481

Courtesy of BMW OF NORTH AMERICA, INC.

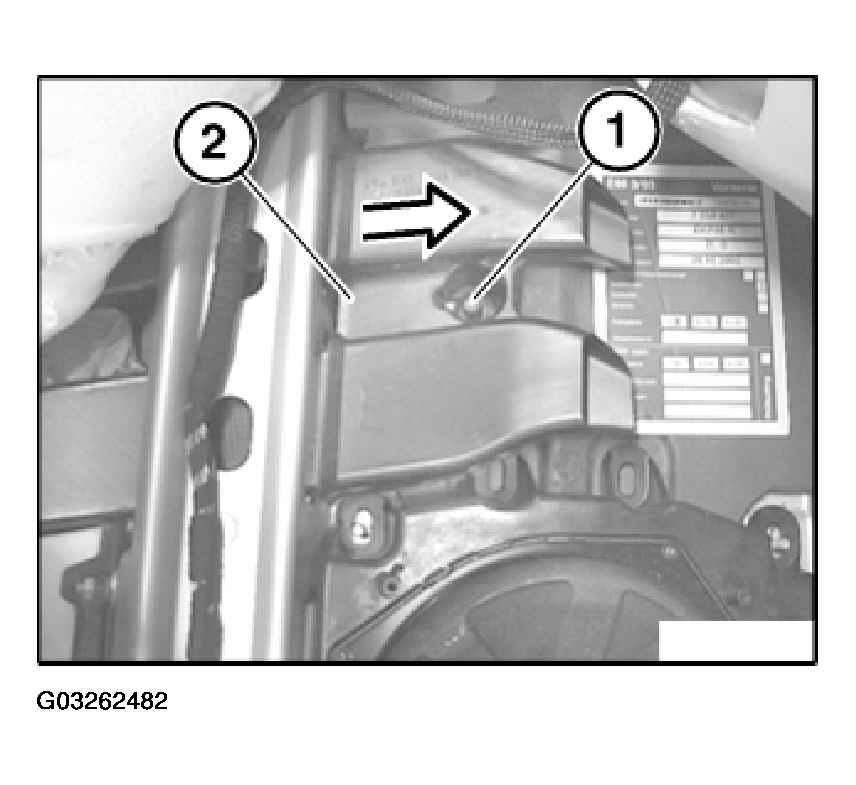

Unscrew nut (1).

Disconnect rear compartment heating duct (2) in direction of arrow.

Fig 3: Disconnecting Rear Compartment Heating Duct

G03262482

Courtesy of BMW OF NORTH AMERICA, INC.

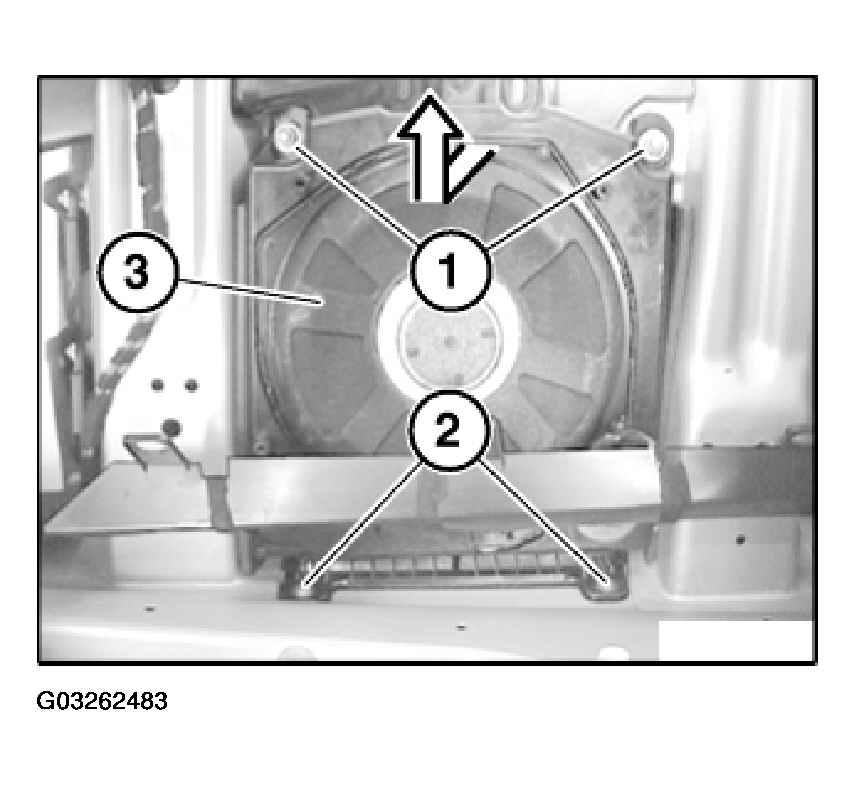

Release nuts (1) and screws (2).

Feed out central bass speaker (3) in direction of arrow and remove.

Fig 4: Feeding Out Central Bass Speaker

G03262483

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

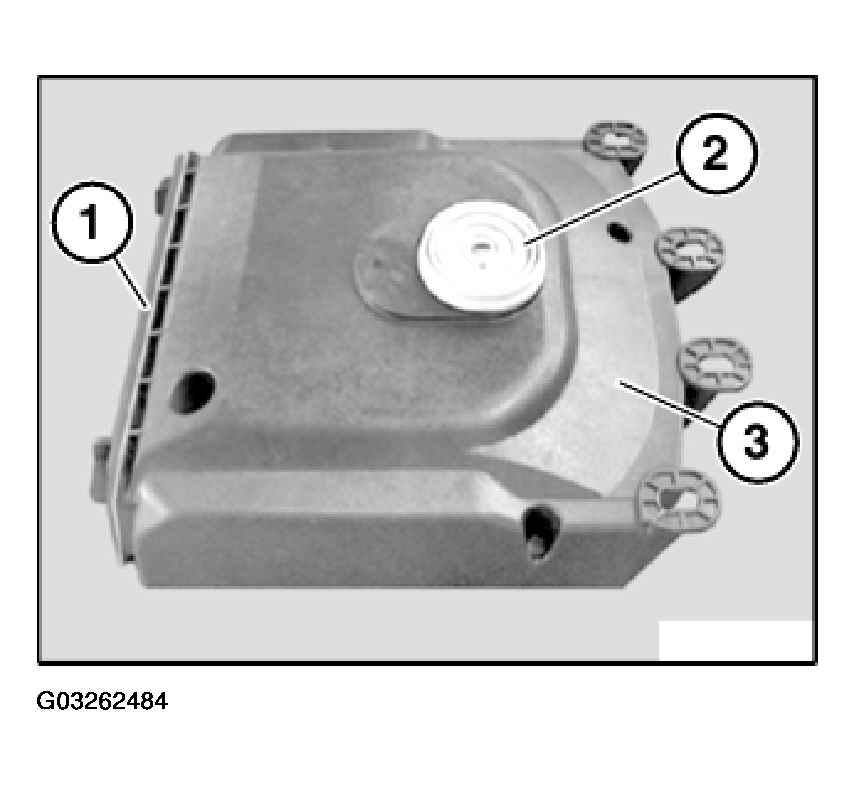

Make sure seal (1) and rubber damper (2) are correctly seated on central bass speaker (3).

Fig 5: Identifying Seal And Rubber Damper

G03262484

Courtesy of BMW OF NORTH AMERICA, INC.
