65 77 016 Removing and installing/replacing airbag control unit (build date from 09/2005)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Note airbag SAFETY INSTRUCTIONS !
Incorrect handling can activate airbag and cause injury.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
Necessary preliminary tasks:
- Disconnect BATTERY NEGATIVE LEAD .
- Remove CENTER CONSOLE .
If necessary, remove rear compartment air duct and disconnect associated plug connections.

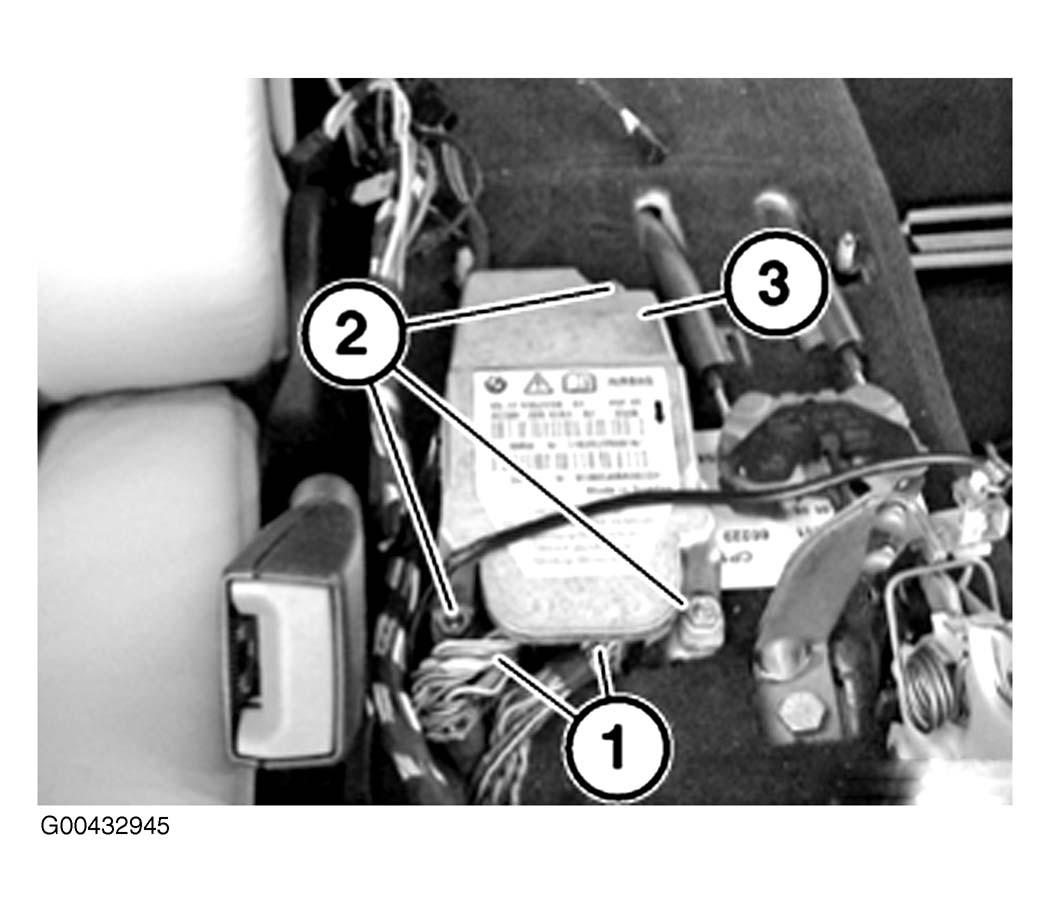

Disconnect plug connection (1).
Release screws (2) and remove airbag control unit (3).
Tightening torque: 8 Nm
