41 35 081 Removing And Installing Front Side Panel On Left

Observe 41 00... BODY GAP DIMENSIONS .

Necessary preliminary tasks:

• Remove SEAL MOUNTING for engine compartment lid
• Remove SIDE REPEATER
• Remove TRIM PANEL FOR COVER ON SIDE MEMBER
• Remove wheel arch covers. See REMOVING FRONT WHEEL ARCH COVER (FRONT SECTION) and REMOVING WHEEL ARCH COVER (REAR SECTION) .
• Partially loosen BUMPER PANEL on the side

Raise engine compartment lid.

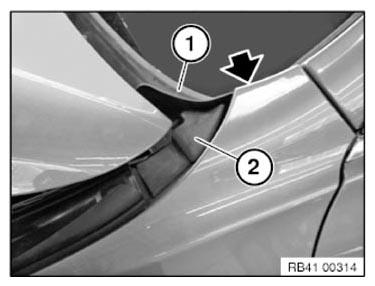

Loosen cowl panel cover (1) from the side wall (arrow).

Feed out sealing (2).

Fig 1: Identifying Cowl Panel Cover And Sealing

Courtesy of BMW OF NORTH AMERICA, INC.

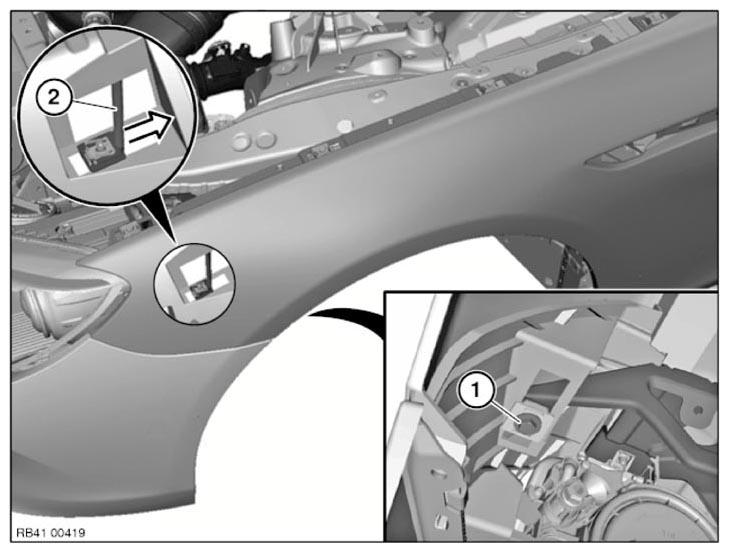

Release screw (1).

Tightening torque 41 35 1AZ .

Bend holder (2) approx. 15 mm to the rear.

Installation note:

After installation of the side wall, the holder must be bent back again.

Fig 2: Identifying Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

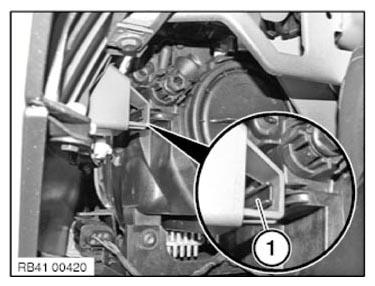

Pay attention to the correct installation position of the sidewall in the area of the guide (1).

Fig 3: Identifying Headlight Housing Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Open door.

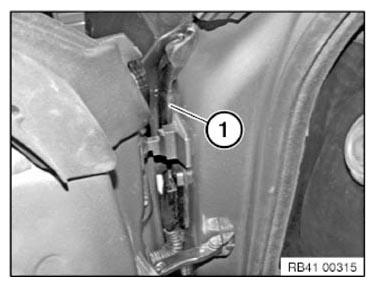

Release sealing (1) by about half.

Fig 4: Identifying Sealing

Courtesy of BMW OF NORTH AMERICA, INC.

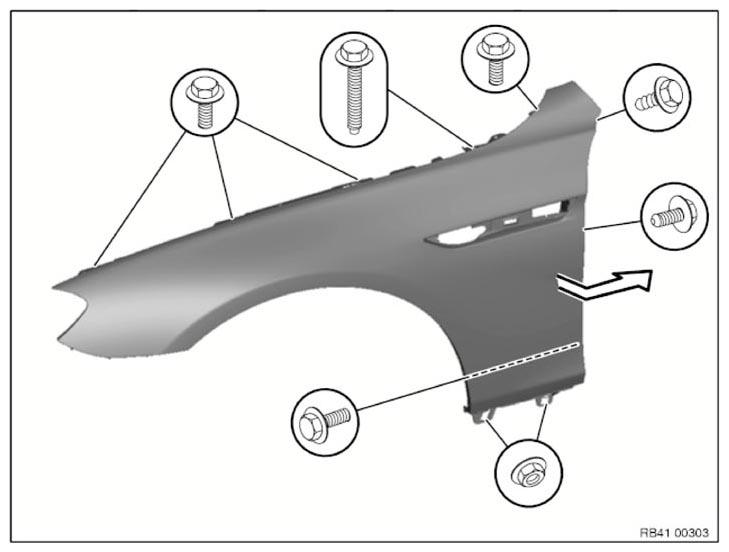

Remove screws and nuts.

Tightening torque 41 35 1AZ .

Tightening torque 41 35 2AZ .

Feed side wall out in the area of the A-pillar, first outward, then toward the back.

Fig 5: Locating Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Only vehicles with park assistant:

Repair work in area (1) is not permitted.

Replace side wall.

Fig 6: Identifying Repair Exclusion Area - Vehicles With Park Assistant

Courtesy of BMW OF NORTH AMERICA, INC.
