63 13 200 Removing and installing/replacing front left or right side repeaters

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 340

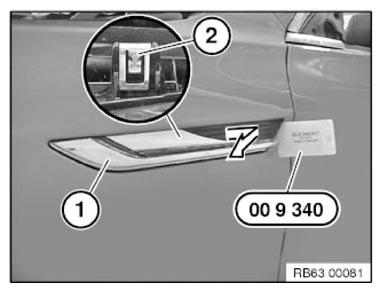

Unlock the side repeater (1) with special tool 00 9 340 and thereby raise the retaining clip (2).

Remove the side repeater (1) in direction of arrow.

Fig 1: Removing Side Repeater Using Special Tool 00 9 340

Courtesy of BMW OF NORTH AMERICA, INC.

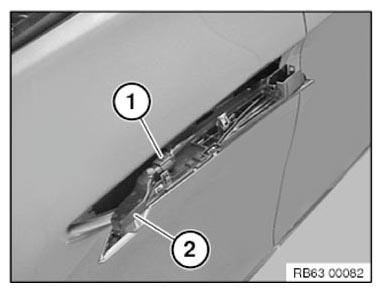

Unfasten plug connection (1) and disconnect.

Remove side repeater (2).

Fig 2: Identifying Side Repeater Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
