51 11 156 Removing and installing (replacing) front bumper panel

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Before making repairs on the bumper panels with the "active pedestrian protection", the associated NOTES must be observed.

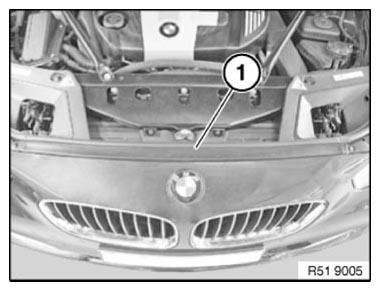

Remove center sealing (1).

Fig 1: Identifying Center Sealing

Courtesy of BMW OF NORTH AMERICA, INC.

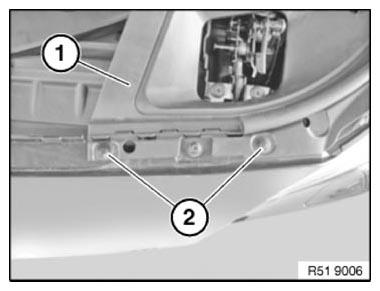

Release expanding rivets (2) from side engine compartment lid gasket (1), right and left.

Lift up engine compartment lid side gasket (1) for each of the next operations.

Fig 2: Identifying Expanding Rivets And Engine Compartment Lid Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

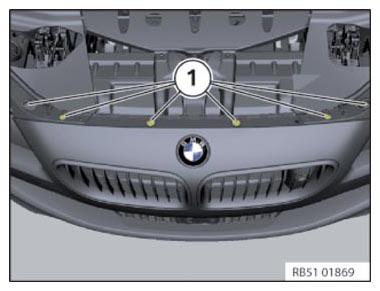

Release screws (1).

Fig 3: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

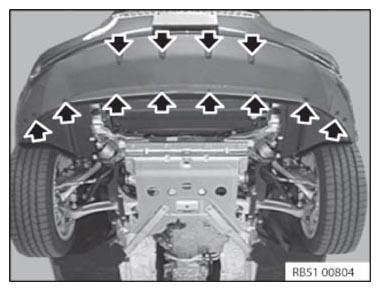

Release expanding rivets and screws.

Fig 4: Locating Expanding Rivets And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Version with night vision:

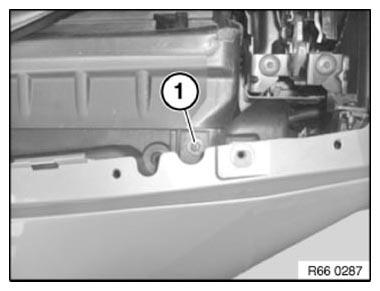

Release screw (1) for camera holder and pull out.

Fig 5: Identifying Camera Holder Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Change steering angle to suit current the current job item.

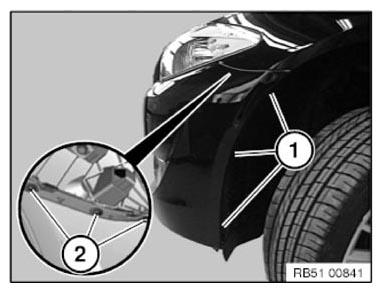

Release bolt (1) on wheel arch panel. Tilt wheel arch panel sideways.

Release left and right bolts (2) located behind trim.

Tightening torque 51 11 11AZ .

IMPORTANT: Bumper panel must not be pulled out sideways (risk of damage).

Fig 6: Identifying Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

For version with Side View camera:

Unlock plug connection (3) on left and right and disconnect.

Fig 7: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect the right wiring harness connector and if necessary the additional plug-in contacts and feed out cable.

Remove bumper panel straight towards front with aid of a 2nd person.

IMPORTANT: Bumper panel must not be pulled out sideways (risk of damage).

Version with night vision:

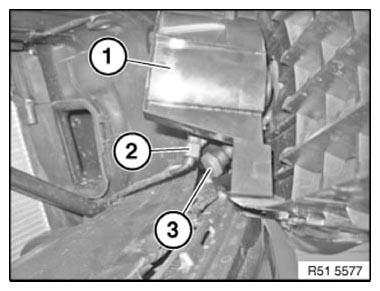

Release plug connection (2) and high-pressure nozzle line (3) on night vision camera (1) and disconnect.

Fig 8: Identifying Plug Connection And High Pressure Nozzle Line On Night Vision Camera

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Beware danger of crushing.
When installing bumper panel, make sure the high-pressure nozzle line (3) has been correctly routed to Night Vision camera.
Observe 41 00... BODY GAP DIMENSIONS .

When replacing, swap over the following parts:

FRONT RADIATOR GRILLE
SIDE GRILLE
CENTER ORNAMENTAL GRILLE
Cover on towing eye
BMW BADGE
Wiring harness
Headlight washer system covers

Depending on version:
