51 71 447 Removing and installing or replacing trim panel for cover on left or right side member

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove door sill cover strip. See REMOVING ROCKER PANEL TRIM or REMOVING ILLUMINATED ROCKER PANEL TRIM .

Release expanding rivet (1) and (3).

Release bottom screws (4).

Tightening torque 51 71 4AZ .

Unclip trim panel for cover on side member (2) in marked areas and remove.

Installation note:

Ensure that cover is correctly seated on side member (2) in marked areas.

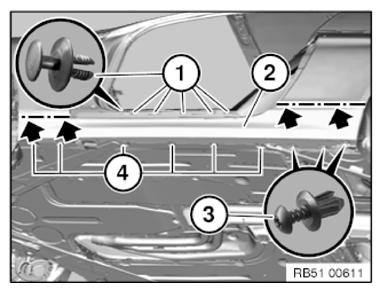

Fig 1: Identifying Side Member, Expanding Rivets, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (2) of holding strip at front (1) and rear (3) must be neither damaged nor missing.

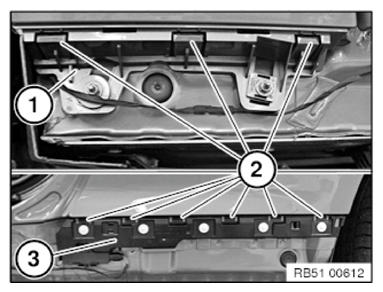

Fig 2: Identifying Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
