61 31 195 Removing and installing (replacing) front controller

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage.
The button for the controller must not be removed.

Necessary preliminary tasks:

Remove SIDE CLAMP ON CENTER CONSOLE

Release screws (1).

Tightening torque 61 31 2AZ .

Remove controller (2) from side clamp on center console cover (3).

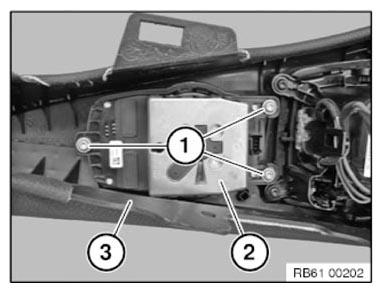

Fig 1: Identifying Controller, Center Console Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
