51 16 160 Removing and installing/replacing center console cover

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Manual gearbox only:

Disconnect NEGATIVE BATTERY CABLE (to avoid fault entries)

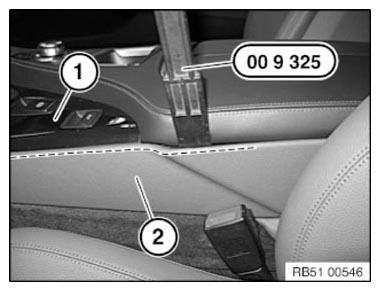

Partially unclip the center console cover on the side (2) beginning at the center console cover (1) toward the front with special tool 00 9 325 .

Fig 1: Unclipping Section Of Center Console Cover Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

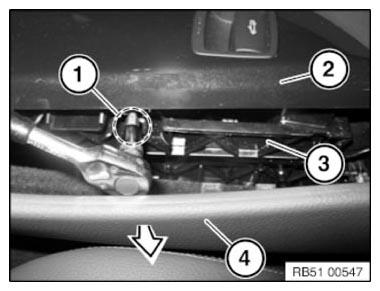

Bolt (1) of center console cover (2) may be loosened by carefully folding back the center console cover on the side (4) on the center console support (3).

Tightening torque 51 16 6AZ .

Fig 2: Loosening Bolt Of Center Console Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version with front drinks holder only:

Fold the drinks holder cover open, if necessary.

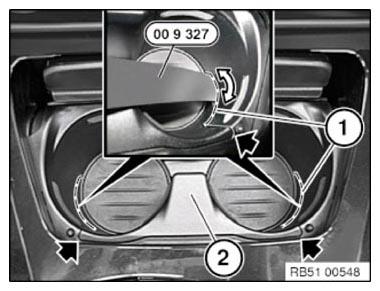

Insert the special tool 00 9 327 , as shown in the gap (1) between the center console cover and drinks holder insert (2).

Slightly pull the drinks holder insert (2) up and thereby move the special tool 00 9 327 back and forth until the drinks holder insert (2) disengages.

Repeat the disengaging procedure on the opposite side, if applicable.

Fig 3: Removing Beverage Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check correct installation of drinks holder insert (2) (arrows).

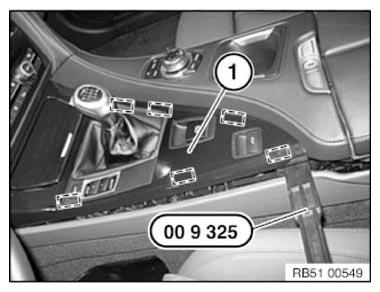

Lever out center console cover (1) with special tool 00 9 325 from back to front.

Fig 4: Removing Center Console Cover Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Manual transmission version only:

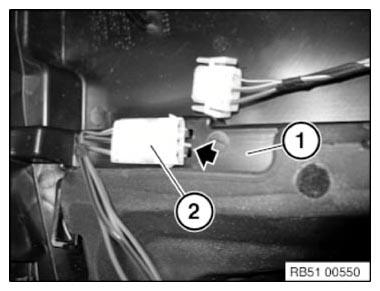

Loosen and disconnect plug connection (2). Release the plug connection (2) from the center console support (1).

Fig 5: Identifying Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.

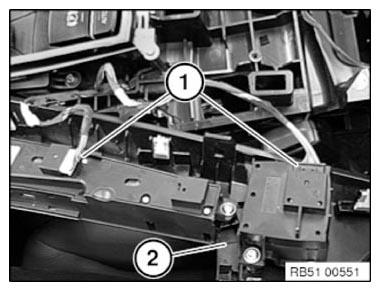

Release remaining plug connections (1) on center console cover (2) and disconnect.

Fig 6: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

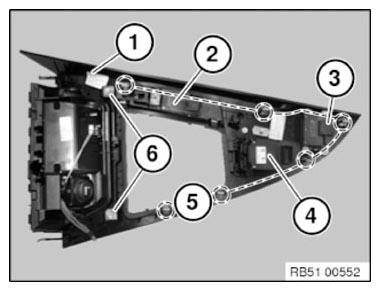

Retaining clips (5) of center console cover (1) must not be damaged or missing.

Replacement

Modify retaining clips (5)
Modify ASHTRAY/DRINKS HOLDER (6)
Modify center console operating unit (2). See CENTER CONSOLE OPERATING FACILITY or CENTER CONSOLE OPERATING UNIT (MANUAL TRANSMISSION) .
Manual gearbox versions only:
Modify SWITCH FOR ELECTROMECHANICAL PARKING BRAKE (4)

Fig 7: Locating Retaining Clips
Courtesy of BMW OF NORTH AMERICA, INC.
