61 31 197 Removing and installing/renewing center console operating facility

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTER CONSOLE COVER

Release screws (3).

Remove center console operating facility (1) from center console cover (2).

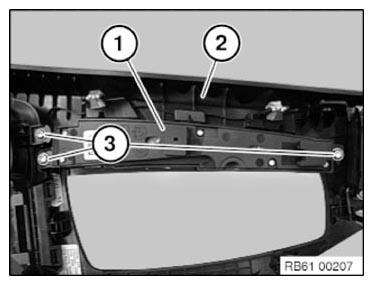

Fig 1: Identifying Center Console Operating Facility, Center Console Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

For an uniform join, press center console operating facility (2) sideways up against center console cover.

Centering ribs (1) must touch the center console cover.

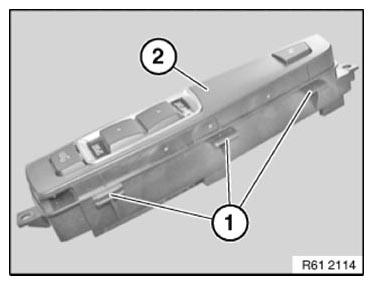

Fig 2: Identifying Operating Facility And Centering Ribs

Courtesy of BMW OF NORTH AMERICA, INC.
