61 31 197 Removing and installing/replacing center console operating unit (manual transmission)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Necessary preliminary tasks:
- Partially remove SELECTOR LEVER KNOB

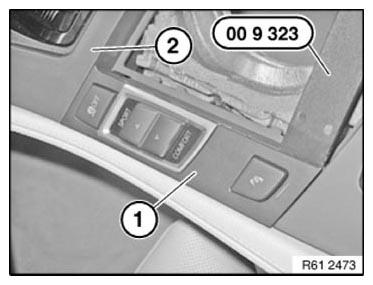

Carefully pry center console operating unit (1) out of center console trim (2) using special tool 00 9 323 with special tool.
Disconnect underlying plug connections and remove center console operating unit (1).
Installation:

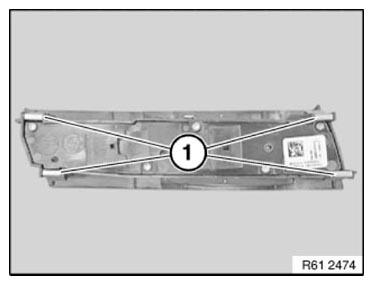

Fasteners (1) must not become damaged.
Make sure rocker center console operating unit is correctly seated.
